NSN 5120-01-628-5375 2KPHF4, 2KPHF-4 , 01-628-5375
Product Details | SCREW THREAD INSERT INSERTER
5120-01-628-5375 A tool designed to install a SCREW THREAD INSERT.
Part Alternates: 2KPHF4, 2KPHF-4 , 5120-01-628-5375, 01-628-5375, 5120016285375, 016285375
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 2014150 | 01-628-5375 | 26850 ( INSERTER, SCREW THREAD INSERT ) |

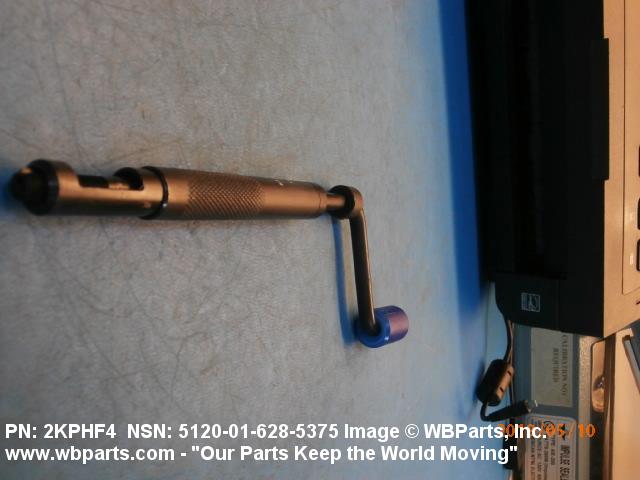

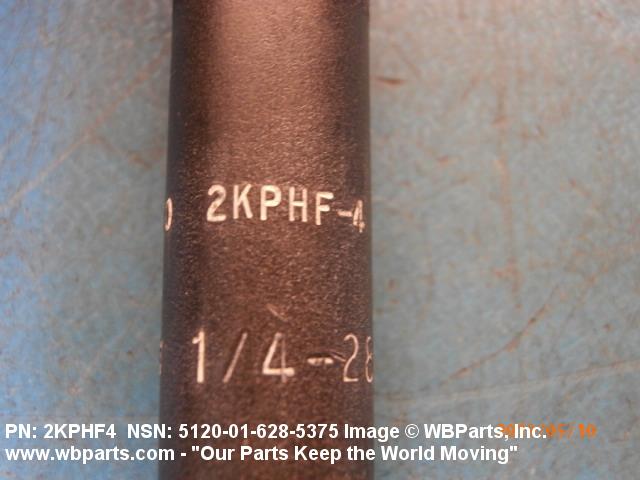

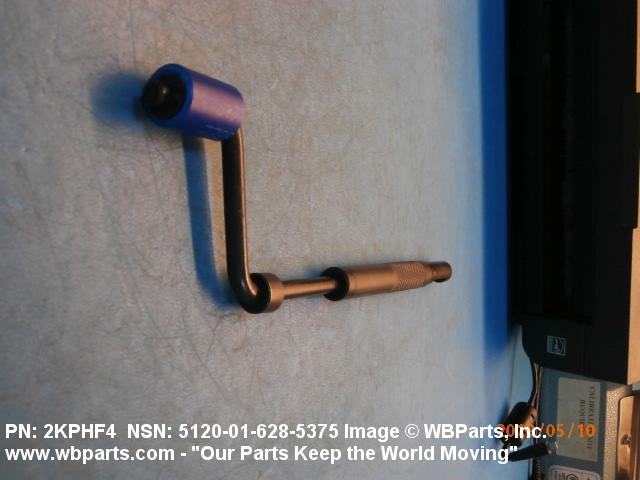

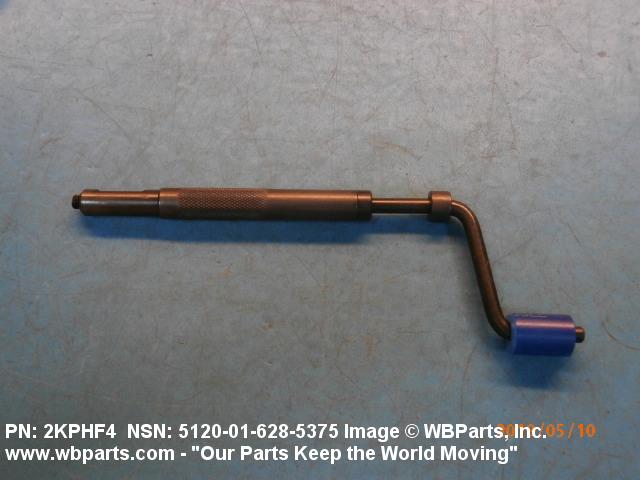

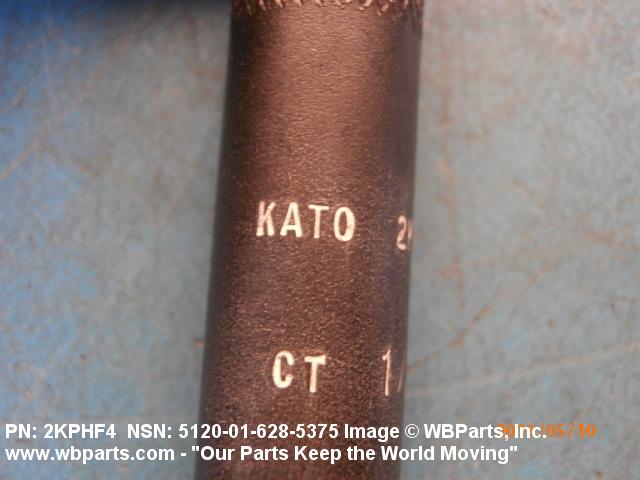

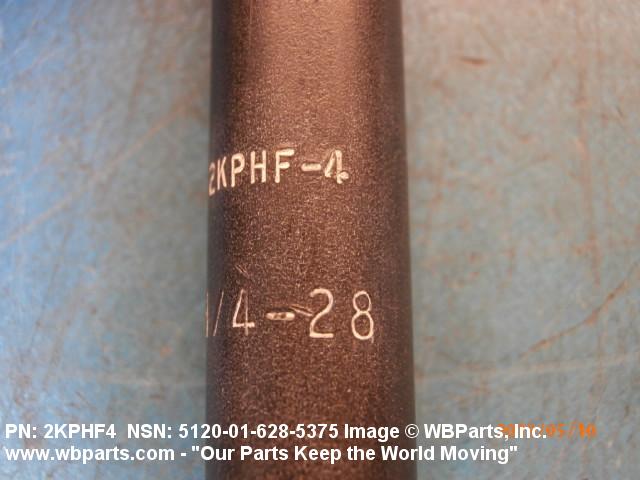

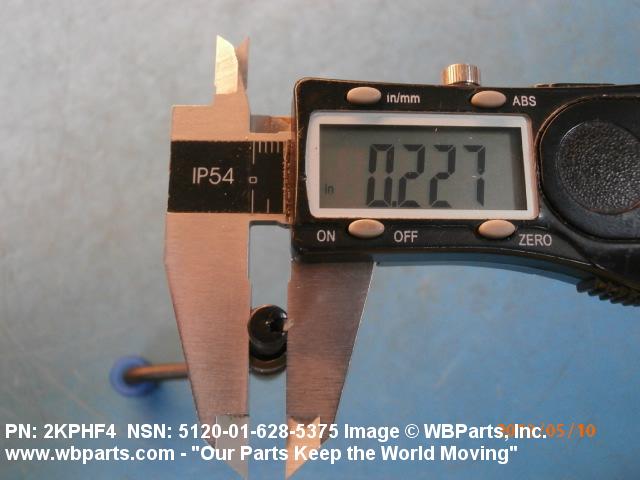

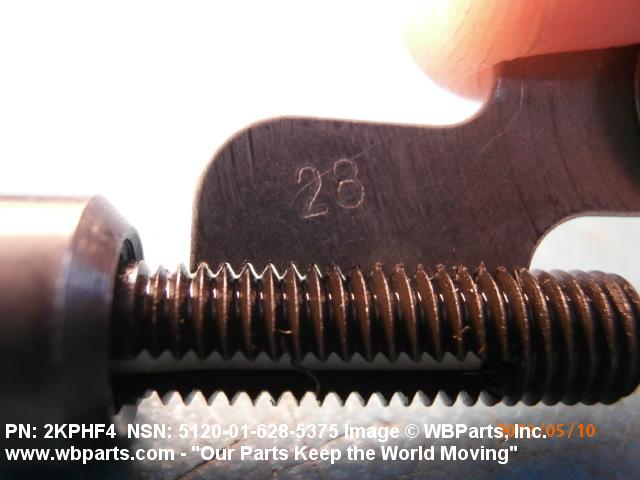

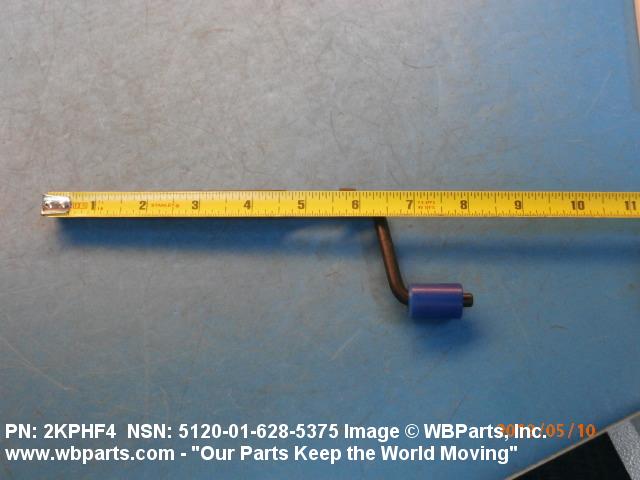

Drawings & Photos | NSN 5120-01-628-5375
Demand History | NSN 5120-01-628-5375
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2KPHF4 | 2023-11-317 | 11 | United States |
| 2KPHF4 | 2022-02-46 | 2 | United States |
| 2KPHF4 | 2019-04-95 | 3 | United States |
| 5120-01-628-5375 | 2018-05-142 | 7 | IN |
Cross Reference | NSN 5120-01-628-5375
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2KPHF-4 | 0YC40 | KATO FASTENING SYSTEMS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-628-5375
Related Products | NSN 5120-01-628-5375
Technical Data | NSN 5120-01-628-5375
| Characteristic | Specifications |
|---|---|
| III UNIT TYPE | PREWINDER |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-28 UN |
| SPECIAL FEATURES | LENGTH 7.97 INCHES |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TANGLESS PREWINDER HAND TOOL |
Restrictions/Controls & Freight Information | NSN 5120-01-628-5375
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
