NSN 5120-00-816-5704 AA59158, A-A-59158, A-A-59158 TY3CL1STA
Product Details | SCREW THREAD INSERT INSERTER
5120-00-816-5704 A tool designed to install a SCREW THREAD INSERT.
Part Alternates: AA59158, A-A-59158, A-A-59158 TY3CL1STA, AA59158TY3CL1STA, MILT21309, MIL-T-21309, MIL-T-21309 TY3CL1STA, MILT21309TY3CL1STA, 355106, 3551-06, 655106, 6551-06, 717017-801 , 755106, 7551-06, 5120-00-816-5704, 00-816-5704, 5120008165704, 008165704, 717017801
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1962 | 00-816-5704 | 26850 ( INSERTER, SCREW THREAD INSERT ) |

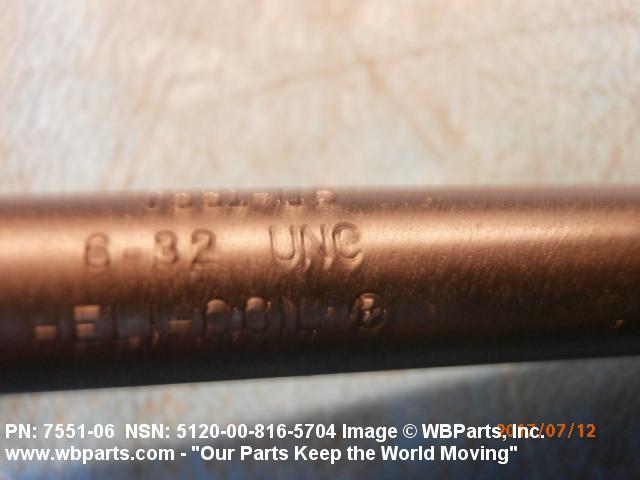

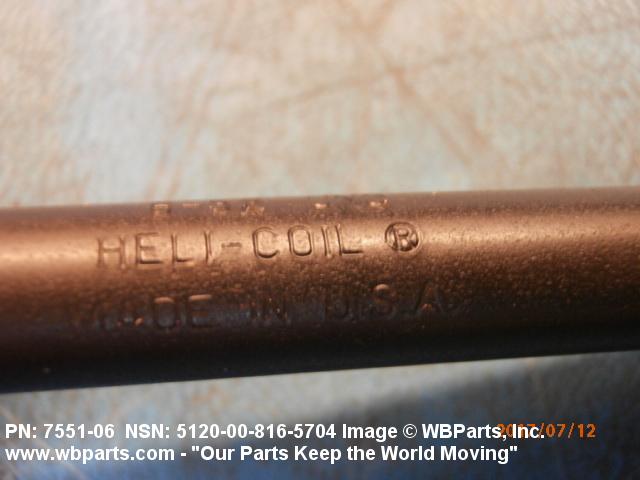

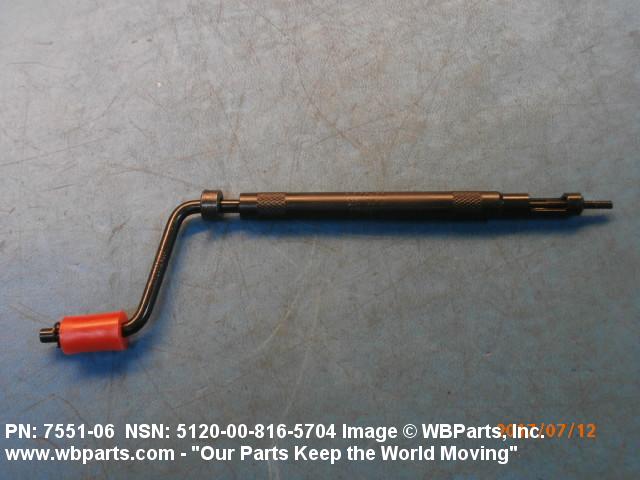

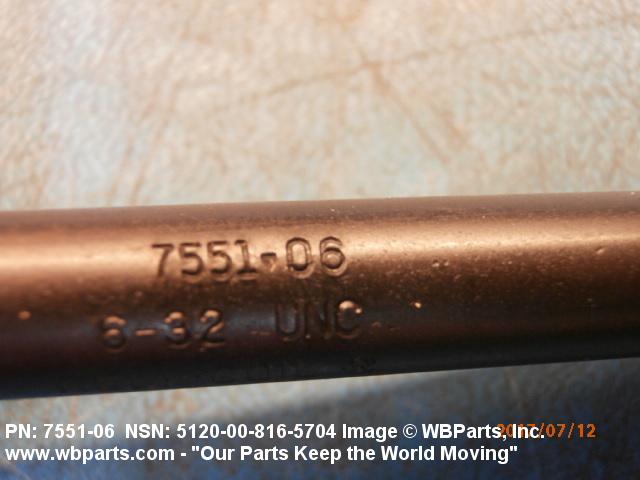

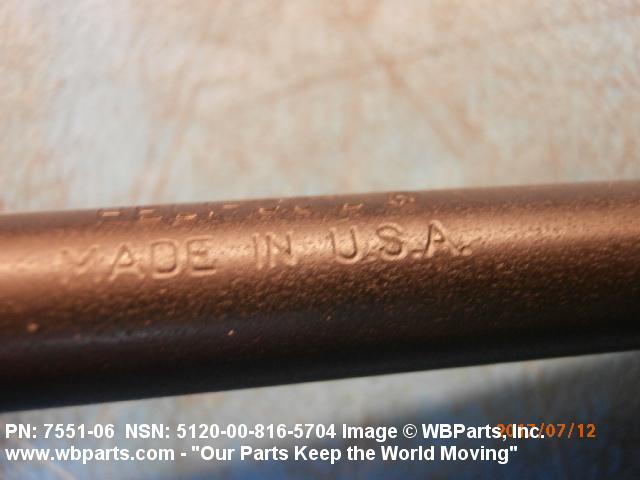

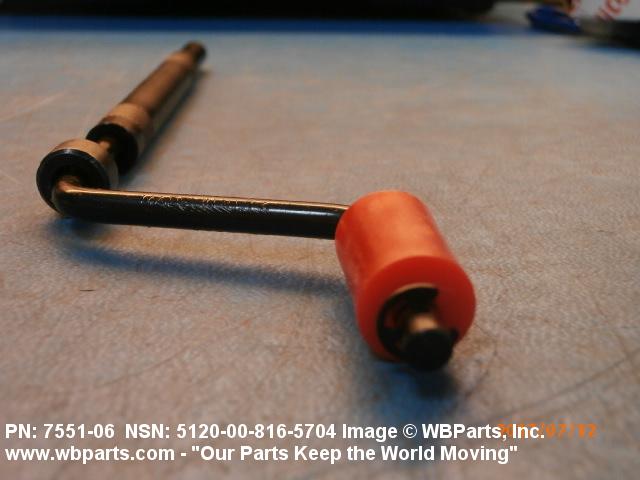

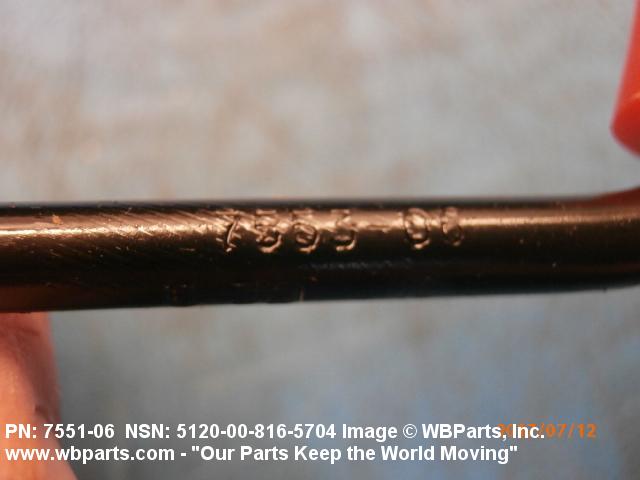

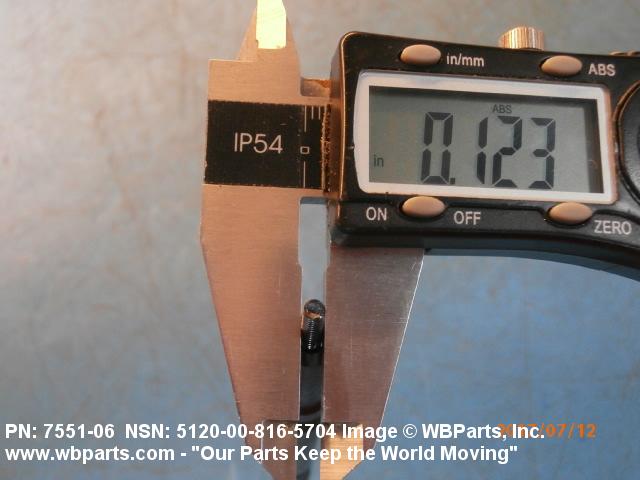

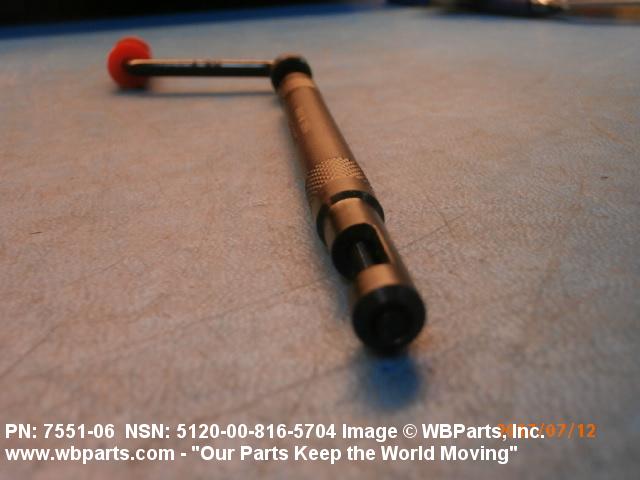

Drawings & Photos | NSN 5120-00-816-5704
Demand History | NSN 5120-00-816-5704
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILT21309 | 2024-02-52 | 5 | US |
| 5120-00-816-5704 | 2017-06-180 | 1 | Switzerland |
| 755106 | 2012-03-82 | 1 | Greece |
| 755106 | 2009-04-107 | 1 | United States |
Cross Reference | NSN 5120-00-816-5704
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17551-06 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 3551-06 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 6551-06 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 7551-06 | F1699 | BOLLHOFF OTALU SA |
| A-A-59158 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-59158 TY3CL1STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| AS59158 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS59158 TY3CL1STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| MIL-T-21309 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-T-21309 TY3CL1STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| TCIC-06 | 0YC40 | KATO FASTENING SYSTEMS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-816-5704
Related Products | NSN 5120-00-816-5704
Technical Data | NSN 5120-00-816-5704
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | PREWINDER |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 6-32 UNC |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 1 CLASS AND A STYLE |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59158 |
Restrictions/Controls & Freight Information | NSN 5120-00-816-5704
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-816-5704
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | TX | Avionics support equipment and parts |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 2 | Electrostatic Discharge (ESD)/Electromagnetic (EM) Sensitive Item |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
