NSN 5120-01-524-2103 XOM810, 01-524-2103, 015242103
Product Details | BOX WRENCH
5120-01-524-2103 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: XOM810, 5120-01-524-2103, 01-524-2103, 5120015242103, 015242103
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 23 SEP 2004 | 01-524-2103 | 03555 ( WRENCH, BOX ) |
Drawings & Photos | NSN 5120-01-524-2103
Cross Reference | NSN 5120-01-524-2103
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| XOM810 | 3LSJ2 | SNAP-ON INCORPORATED DBA SNAP-ON TOOLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-524-2103
Technical Data | NSN 5120-01-524-2103
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |

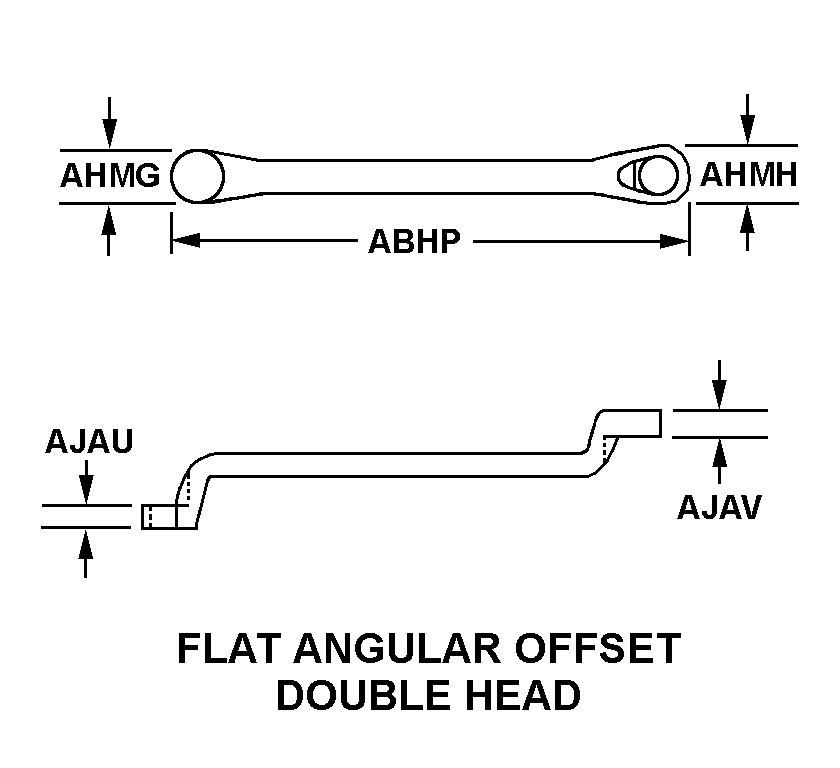

| STYLE DESIGNATOR | 43 FLAT ANGULAR OFFSET DOUBLE HEAD |
| OVERALL LENGTH | 178.1 MILLIMETERS NOMINAL |
| LARGE END OUTSIDE DIAMETER | 11.7 MILLIMETERS MINIMUM AND 14.2 MILLIMETERS MAXIMUM |
| SMALL END OUTSIDE DIAMETER | 11.7 MILLIMETERS MINIMUM AND 14.2 MILLIMETERS MAXIMUM |
| LARGE END HEAD THICKNESS | 6.9 MILLIMETERS MINIMUM AND 7.3 MILLIMETERS MAXIMUM |
| SMALL END HEAD THICKNESS | 6.9 MILLIMETERS MINIMUM AND 7.3 MILLIMETERS MAXIMUM |
| WRENCHING SURFACE SIZE | 10.0 MILLIMETERS NOMINAL FIRST END 10.0 MILLIMETERS NOMINAL SECOND END |
| WRENCHING SURFACE SHAPE | SPLINE BOTH ENDS INTERNAL |
| WRENCHING SURFACE FLUTE QUANTITY | 12 |
| DRIVE SURFACE SIZE | 10.0 MILLIMETERS NOMINAL BOTH ENDS |
| DRIVE END SHAPE | ROUND BOTH ENDS INTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-01-524-2103
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
