Product Details | SPANNER WRENCH

5120-01-523-0193 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: H21C7384G01, 21C7384G01, 5120-01-523-0193, 01-523-0193, 5120015230193, 015230193

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 17 AUG 2004 01-523-0193

Drawings & Photos | NSN 5120-01-523-0193


Demand History | NSN 5120-01-523-0193

Part Number Request Date QTY Origin
21C7384G01 2017-01-06 1 Turkey

Cross Reference | NSN 5120-01-523-0193

Part Number Cage Code Manufacturer
21C7384G01 99207 GENERAL ELECTRIC COMPANY DBA GE
H21C7384G01 ZH106 HAWKER PACIFIC PTY LTD

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-523-0193

Technical Data | NSN 5120-01-523-0193

Characteristic Specifications
MATERIAL STEEL COMP 4340 OVERALL

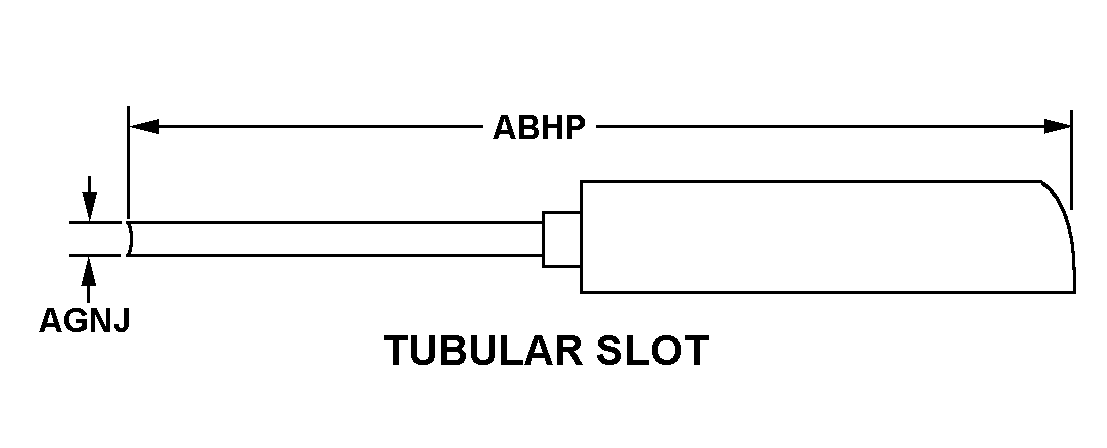

STYLE DESIGNATOR 819 TUBULAR SLOT
OVERALL LENGTH 10.380 INCHES NOMINAL
OPENING DIAMETER 0.820 INCHES MINIMUM AND 0.828 INCHES MAXIMUM
DRIVE SURFACE SIZE 0.622 INCHES MINIMUM AND 0.627 INCHES MAXIMUM SINGLE END
DRIVE END SHAPE SQUARE SINGLE END INTERNAL
III END ITEM IDENTIFICATION 21C7384G01 ON T700 AIRCRAFT

Restrictions/Controls & Freight Information | NSN 5120-01-523-0193

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
