NSN 5120-01-514-2649 2588293, 01-514-2649, 015142649
Product Details | SPANNER WRENCH
5120-01-514-2649 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: 2588293, 5120-01-514-2649, 01-514-2649, 5120015142649, 015142649
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 21 OCT 2003 | 01-514-2649 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-01-514-2649
Cross Reference | NSN 5120-01-514-2649
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2588293 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-514-2649
Technical Data | NSN 5120-01-514-2649
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL HANDLE STEEL LUG |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A108 ASSN STD SINGLE MATERIAL RESPONSE HANDLE ASTM-A108 ASSN STD SINGLE MATERIAL RESPONSE LUG |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE 2, CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

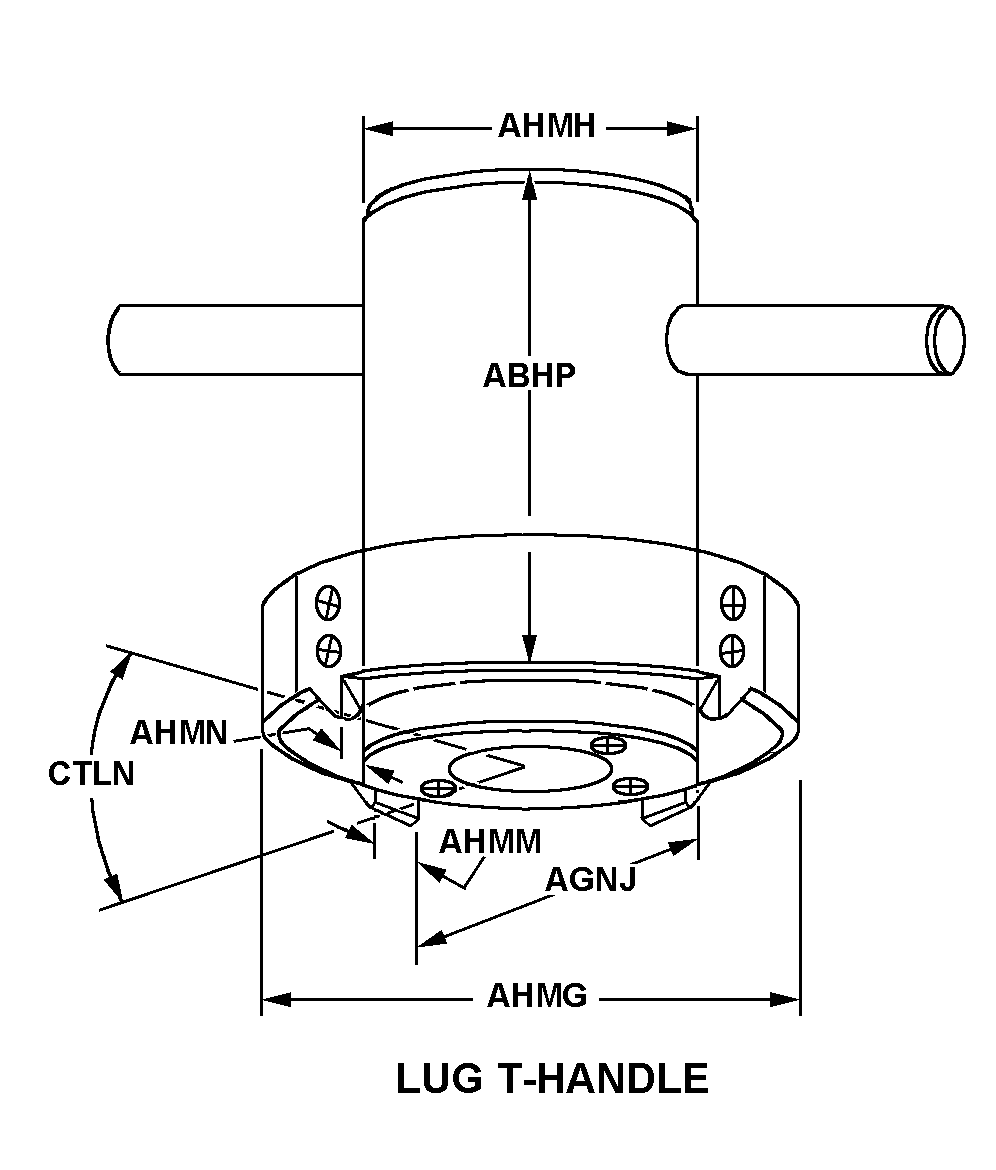

| STYLE DESIGNATOR | 614 LUG T-HANDLE |
