NSN 5120-01-498-3187 K804032011, K804032-011, 01-498-3187
Product Details | SPANNER WRENCH
5120-01-498-3187 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: K804032011, K804032-011, 5120-01-498-3187, 01-498-3187, 5120014983187, 014983187
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 21 JUN 2002 | 01-498-3187 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-01-498-3187
Cross Reference | NSN 5120-01-498-3187
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K804032-011 | 84955 | KAMAN AEROSPACE CORPORATION DBA AIR VEHICLES & MRO DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-498-3187
Technical Data | NSN 5120-01-498-3187
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6359 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

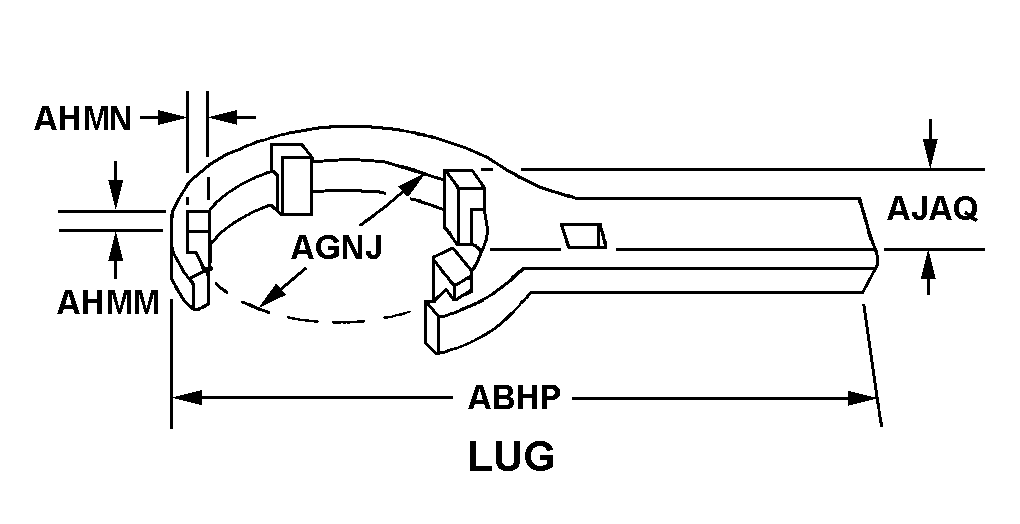

| STYLE DESIGNATOR | 597 LUG |
| OVERALL LENGTH | 6.120 INCHES NOMINAL |
| OPENING DIAMETER | 3.446 INCHES NOMINAL |
| LUG THICKNESS | 0.310 INCHES NOMINAL |
| LUG LENGTH | 6.000 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | SEASPRITE SH-2G |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | WRENCH- HOLDING TOOL - NUT |
Restrictions/Controls & Freight Information | NSN 5120-01-498-3187
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
