Product Details | HAMMER HANDLE

5120-01-470-9783 00001015120000000

Part Alternates: 5973A29, 5120-01-470-9783, 01-470-9783, 5120014709783, 014709783

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 18 JAN 2000 01-470-9783

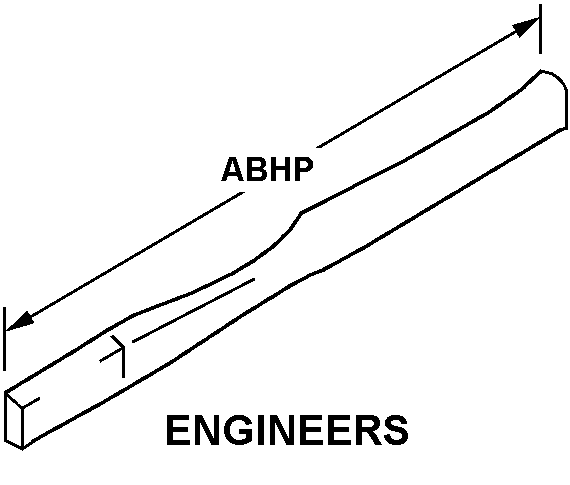

Drawings & Photos | NSN 5120-01-470-9783


Cross Reference | NSN 5120-01-470-9783

Part Number Cage Code Manufacturer
5973A29 39428 MCMASTER-CARR SUPPLY COMPANY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-470-9783

Technical Data | NSN 5120-01-470-9783

Characteristic Specifications
MATERIAL WOOD WALNUT OVERALL
SURFACE TREATMENT LACQUER OVERALL
COLOR NATURAL OVERALL
STYLE DESIGNATOR M18 ENGINEERS
OVERALL LENGTH 16.000 INCHES MAXIMUM
MOUNTING METHOD WEDGE
MOUNTING FACILITY LENGTH 16.000 INCHES MAXIMUM
EYE END STYLE W3 OVAL
OVERALL WIDTH 0.750 INCHES MAXIMUM
END OVERALL LENGTH 1.000 INCHES MAXIMUM
III END ITEM IDENTIFICATION ANCHORING,MOORING/TOWING (HFX)

Restrictions/Controls & Freight Information | NSN 5120-01-470-9783

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
