Product Details | SOCKET WRENCH

5120-01-471-0077 A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH.

Part Alternates: 35795, TM95, 5120-01-471-0077, 01-471-0077, 5120014710077, 014710077

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 19 JAN 2000 01-471-0077

Drawings & Photos | NSN 5120-01-471-0077


Cross Reference | NSN 5120-01-471-0077

Part Number Cage Code Manufacturer
35795 75204 SUMMIT TOOL COMPANY DBA KEN-TOOLS
TM95 75204 SUMMIT TOOL COMPANY DBA KEN-TOOLS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-471-0077

Technical Data | NSN 5120-01-471-0077

Characteristic Specifications
MATERIAL STEEL OVERALL

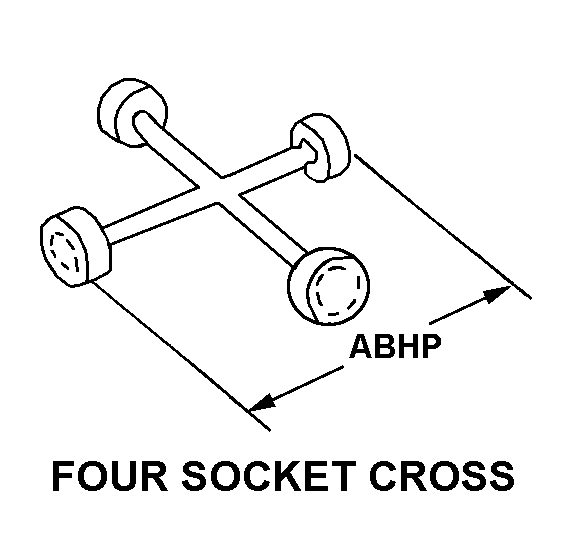

STYLE DESIGNATOR 159 FOUR SOCKET CROSS
OVERALL LENGTH 27.500 INCHES NOMINAL
WRENCHING SURFACE SIZE 24.0 MILLIMETERS NOMINAL FIRST END 27.0 MILLIMETERS NOMINAL SECOND END 30.0 MILLIMETERS NOMINAL THIRD END 33.0 MILLIMETERS NOMINAL FOURTH END
WRENCHING SURFACE SHAPE HEXAGON FIRST END INTERNAL HEXAGON SECOND END INTERNAL HEXAGON THIRD END INTERNAL HEXAGON FOURTH END INTERNAL
PART NAME ASSIGNED BY CONTROLLING AGENCY METRIC HEAVY-DUTY TRUCK 4-WAY LUG WRENCH

Restrictions/Controls & Freight Information | NSN 5120-01-471-0077

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
