NSN 5120-01-389-9071 6665725, 01-389-9071, 013899071
Product Details | SPANNER WRENCH
5120-01-389-9071 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: 6665725, 5120-01-389-9071, 01-389-9071, 5120013899071, 013899071
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 06 MAY 1994 | 01-389-9071 | 03476 ( WRENCH, SPANNER ) |

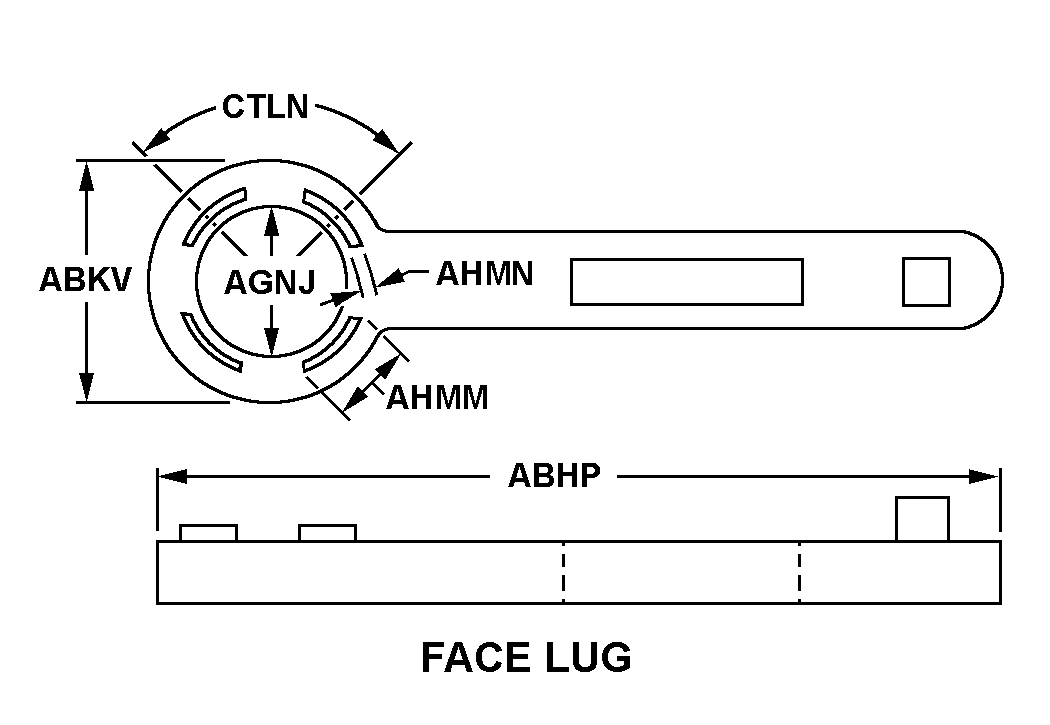

Drawings & Photos | NSN 5120-01-389-9071
Demand History | NSN 5120-01-389-9071
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6665725 | 2024-03-77 | 3 | DIBBS |
| 6665725 | 2021-10-284 | 7 | DIBBS |
| 6665725 | 2019-11-325 | 12 | DIBBS |
| 5120-01-389-9071 | 2018-11-305 | 12 | DIBBS |
| 5120-01-389-9071 | 2018-05-128 | 2 | DIBBS |
| 5120-01-389-9071 | 2017-05-127 | 10 | DIBBS |
| 5120-01-389-9071 | 2017-03-71 | 2 | DIBBS |
| 5120-01-389-9071 | 2017-03-60 | 2 | DIBBS |
| 5120-01-389-9071 | 2017-02-47 | 1 | DIBBS |
| 6665725 | 2016-08-226 | 8 | |
| 5120-01-389-9071 | 2016-08-225 | 8 | NECO |
| 6665725 | 2016-06-168 | 8 | |
| 5120-01-389-9071 | 2016-06-167 | 8 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-389-9071
Technical Data | NSN 5120-01-389-9071
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 689 FACE LUG |
| OVERALL LENGTH | 12.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | MS18062 RECEPTACLE CONNECTOR |
Restrictions/Controls & Freight Information | NSN 5120-01-389-9071
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186710 | TOOLS:TORCHES HAND O/T BLOW |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-389-9071
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
