Product Details | SPANNER WRENCH

5120-01-373-8832 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: 12630668, 5120-01-373-8832, 01-373-8832, 5120013738832, 013738832

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 12 APR 1993 01-373-8832

Drawings & Photos | NSN 5120-01-373-8832


Cross Reference | NSN 5120-01-373-8832

Part Number Cage Code Manufacturer
12630668 19200 US ARMY ARDEC RDECOM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-373-8832

Technical Data | NSN 5120-01-373-8832

Characteristic Specifications
MATERIAL STEEL OVERALL

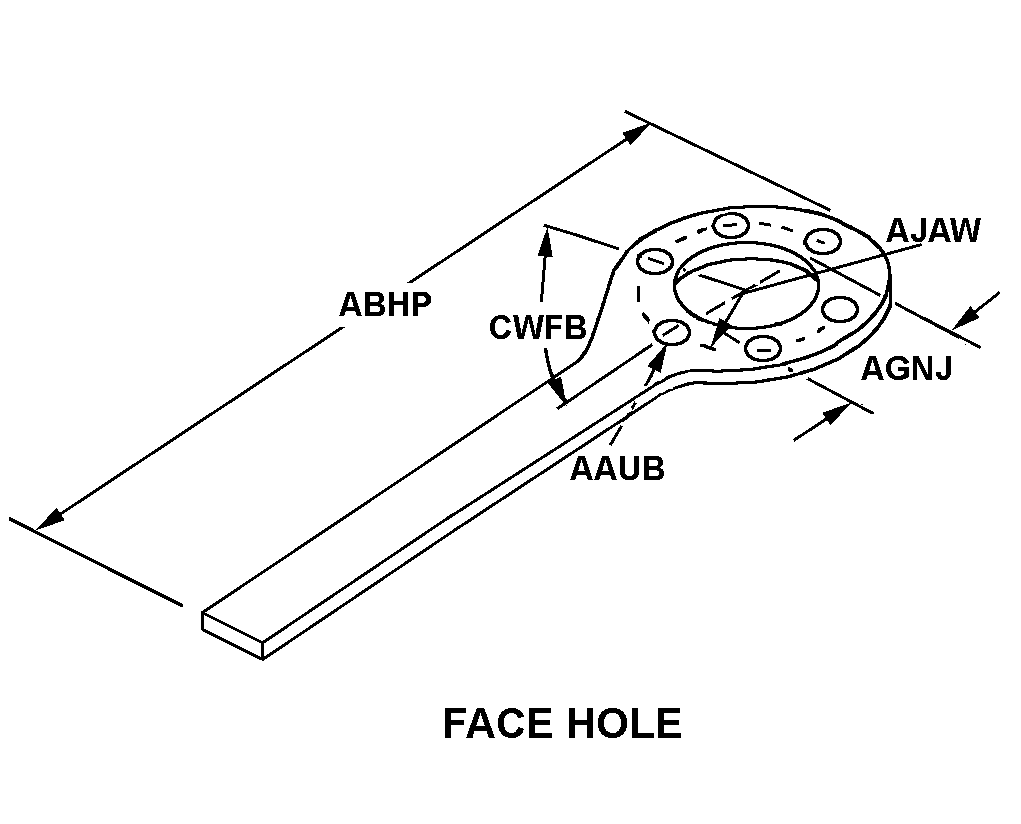

STYLE DESIGNATOR 664 FACE HOLE
HOLE DIAMETER 0.250 INCHES NOMINAL
OVERALL LENGTH 9.700 INCHES NOMINAL
OPENING DIAMETER 1.360 INCHES NOMINAL
HOLE CIRCLE RADIUS 3.190 INCHES NOMINAL
ANGLE BETWEEN HOLES 60.0 DEGREES NOMINAL
SPECIAL FEATURES 6-SLOTTED STAR EQ SPACED; 4 IN. HEAD WIDTH
III END ITEM IDENTIFICATION 4925-01-257-7928 TOOL KIT,TP SR MORTAR AMMO

Restrictions/Controls & Freight Information | NSN 5120-01-373-8832

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 5120-01-373-8832

Category Code Description
Materiel Category and Inventory ManagerE General Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeD Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items.
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
