NSN 5120-01-337-7229 JCM17635, JCM-17635, 01-337-7229
Product Details | SPANNER WRENCH
5120-01-337-7229 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: JCM17635, JCM-17635, 5120-01-337-7229, 01-337-7229, 5120013377229, 013377229
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 21 APR 1991 | 01-337-7229 | 03476 ( WRENCH, SPANNER ) |

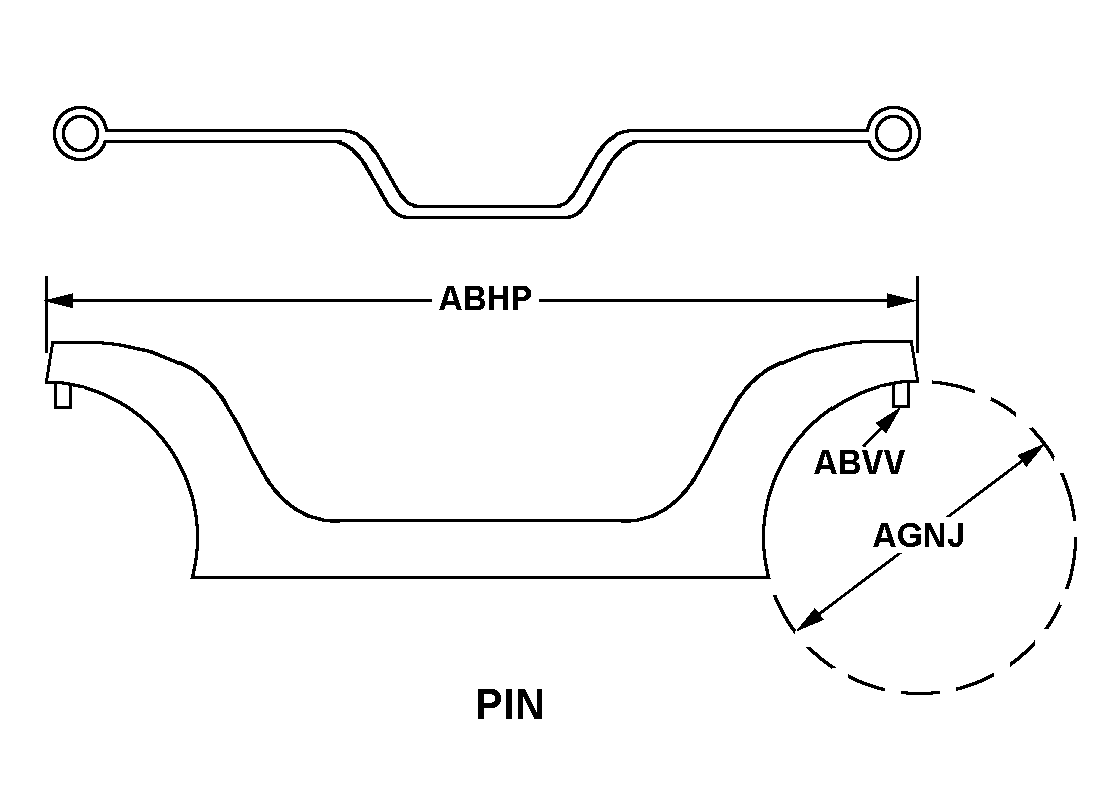

Drawings & Photos | NSN 5120-01-337-7229
Demand History | NSN 5120-01-337-7229
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-337-7229 | 2016-07-194 | 2 | DIBBS |
| 5120-01-337-7229 | 2016-01-19 | 2 | DIBBS |
| 5120-01-337-7229 | 2014-05-130 | 2 | DIBBS |
| 5120-01-337-7229 | 2014-05-121 | 2 | DIBBS |
| 5120-01-337-7229 | 2012-02-50 | 1 | DIBBS |
| 5120-01-337-7229 | 2010-11-325 | 1 | DIBBS |
| 5120-01-337-7229 | 2009-12-355 | 1 | DIBBS |
Cross Reference | NSN 5120-01-337-7229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| JCM-17635 | 58905 | STRIKE WEAPONS AND UNMANNED AVIATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-337-7229
Technical Data | NSN 5120-01-337-7229
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE 1020 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE ZINC AND ENAMEL AND LACQUER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-P-1757 FED SPEC 1ST TREATMENT RESPONSE AND TT-E-490 FED SPEC 2ND TREATMENT RESPONSE AND TT-L-50 FED SPEC 3RD TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 635 PIN |
| OVERALL LENGTH | 10.250 INCHES NOMINAL |
| PIN DIAMETER | 0.125 INCHES NOMINAL |
| OPENING DIAMETER | 4.240 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | TOMAHAWK CLS WARHEADING SYSTEM |
| MANUFACTURERS CODE | 58905 |
| DESIGN CONTROL REFERENCE | JCM-17635 |
Restrictions/Controls & Freight Information | NSN 5120-01-337-7229
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186710 | TOOLS:TORCHES HAND O/T BLOW |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-337-7229
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
