NSN 5120-01-335-8572 M22520/2-01, M22520201, AFM8
Product Details | HAND TERMINAL CRIMPING TOOL
5120-01-335-8572 A hand held tool designed to install various types of terminals on electrical conductors. See also COMPRESSING TOOL, SPLICING SLEEVE.
Part Alternates: M22520/2-01, M22520201, AFM8, 5120-01-335-8572, 01-335-8572, 5120013358572, 013358572
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 14 MAR 1991 | 01-335-8572 | 06997 ( CRIMPING TOOL, TERMINAL, HAND ) |

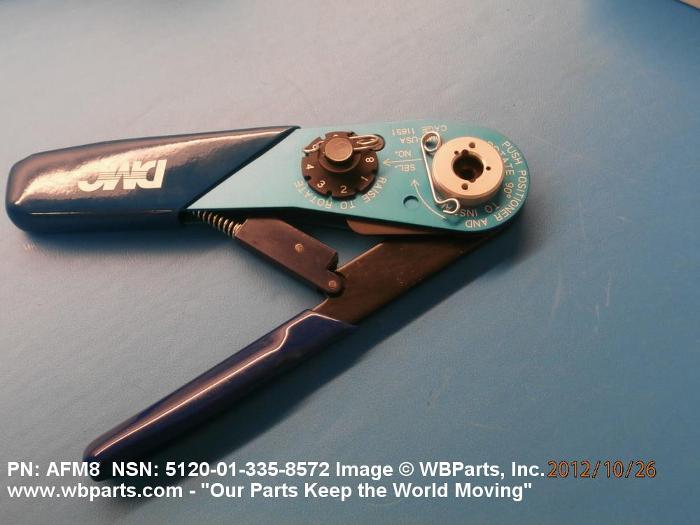

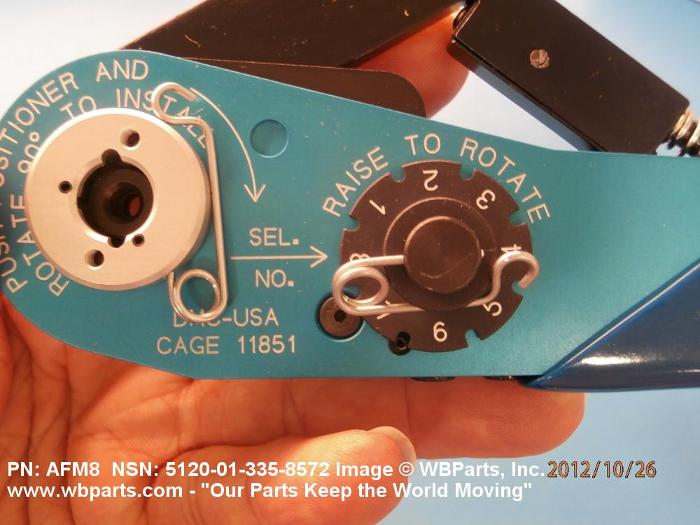

Drawings & Photos | NSN 5120-01-335-8572
Demand History | NSN 5120-01-335-8572
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-335-8572 | 2023-06-180 | 2 | IL |
| M22520201 | 2021-05-145 | 1 | MX |
| 5120-01-335-8572 | 2019-08-231 | 1 | US |
| M22520201 | 2014-09-253 | 2 | United States |
| M22520201 | 2014-09-253 | 2 | United States |
| M22520/2-01 | 2013-02-44 | 2 | United States |
| 5120-01-335-8572 | 2013-02-39 | 1 | Turkey |
| 5120-01-335-8572 | 2012-10-291 | 4 | United States |
| M22520/2-01 | 2012-05-125 | 1 | US |
| M22520201 | 2011-09-262 | 1 | US |
| M22520201 | 2006-09-254 | 0 | US |
Cross Reference | NSN 5120-01-335-8572
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AFM8 | 11851 | DANIELS MANUFACTURING CORPORATION |
| M22520/2-01 | 11851 | DANIELS MANUFACTURING CORPORATION |
| M22520/2-01 | A0792 | SUPPORT LOGISTIC SERVICES |
| M22520/2-01 TY3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-22520 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-335-8572
Technical Data | NSN 5120-01-335-8572
| Characteristic | Specifications |
|---|---|
| REVOLVING DIE FEATURE | NOT PROVIDED |
| OPERATION METHOD | MANUAL COMPRESSION |
| CUTTING JAW | NOT PROVIDED |
| WIRE STRIPPER | NOT PROVIDED |
| WIRE SIZE ACCOMMODATED | 20 AWG MINIMUM AND 32 AWG MAXIMUM |
| SPECIAL FEATURES | MIL-C-22520/2-01 EQUIVALENT |
| III SUPPLEMENTARY FEATURES | INDUSTRIAL QUALITY (IQ) TOOLS PROGRAM ITEM |
Restrictions/Controls & Freight Information | NSN 5120-01-335-8572
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-335-8572
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
