NSN 5120-01-268-9594 WR2007600X10511, WR2007600X105-1-1, 01-268-9594
Product Details | SPANNER WRENCH
5120-01-268-9594 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: WR2007600X10511, WR2007600X105-1-1, 5120-01-268-9594, 01-268-9594, 5120012689594, 012689594
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 10 DEC 1987 | 01-268-9594 | 03476 ( WRENCH, SPANNER ) |

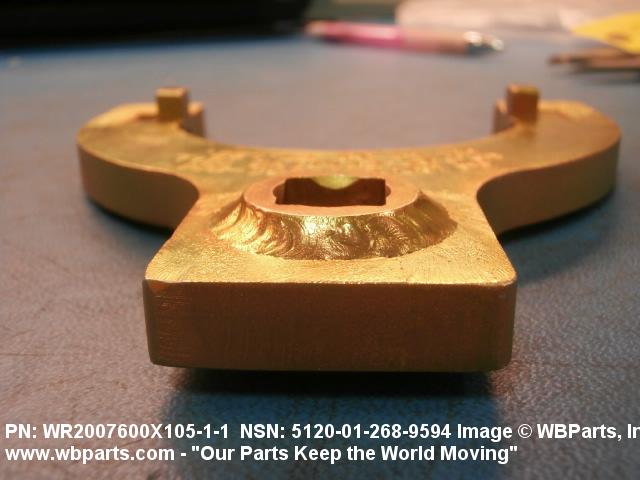

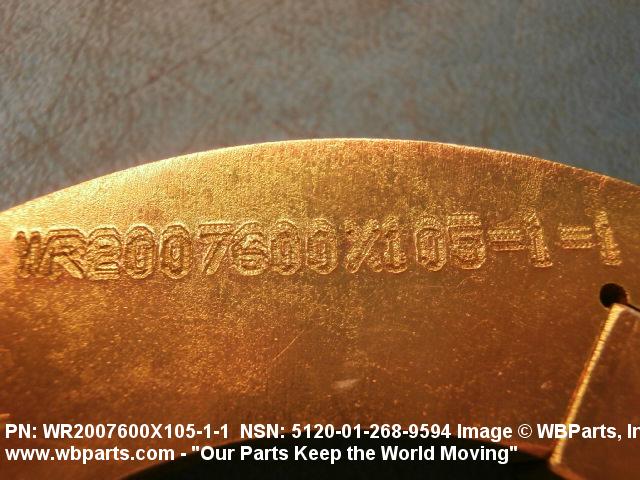

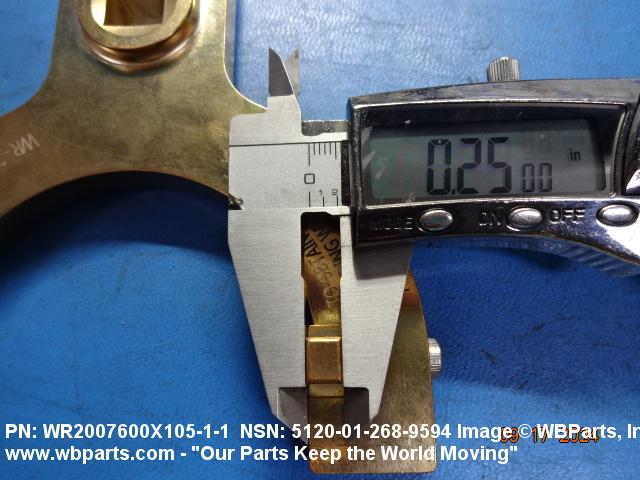

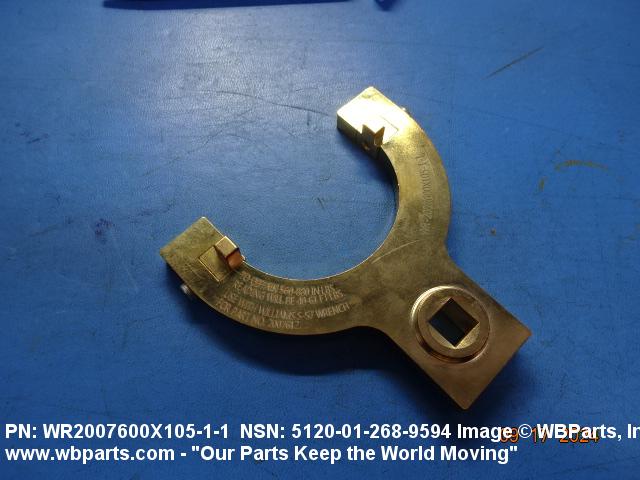

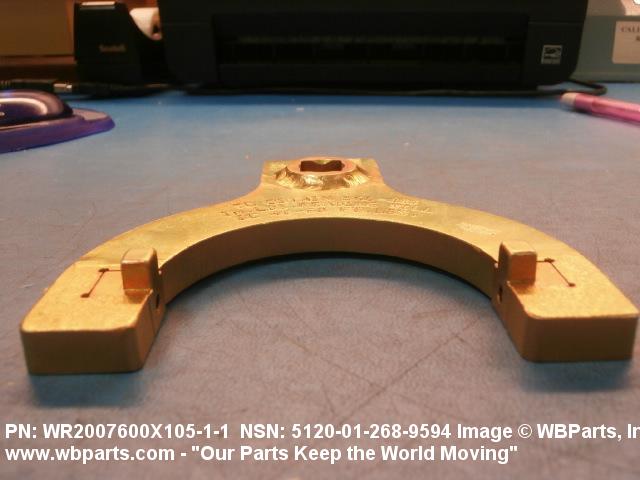

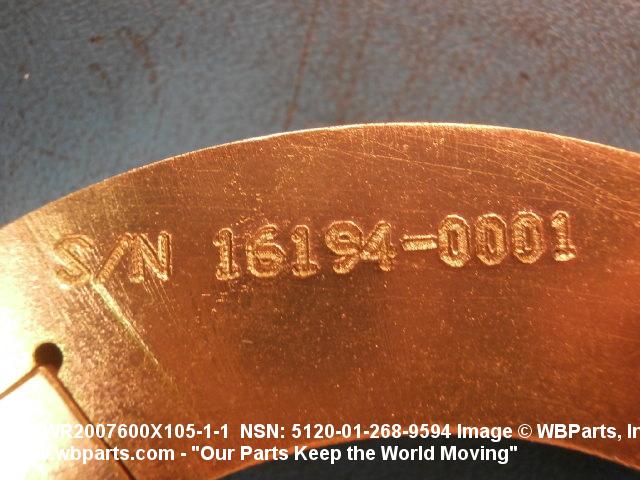

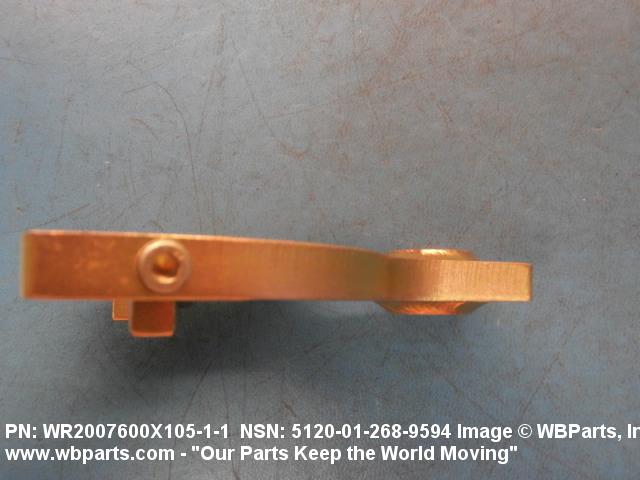

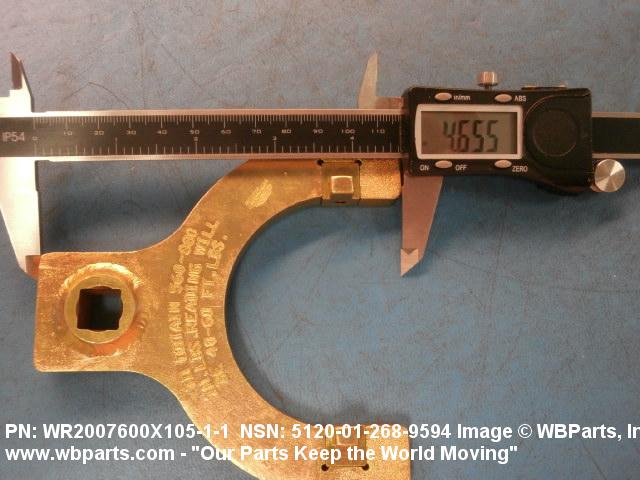

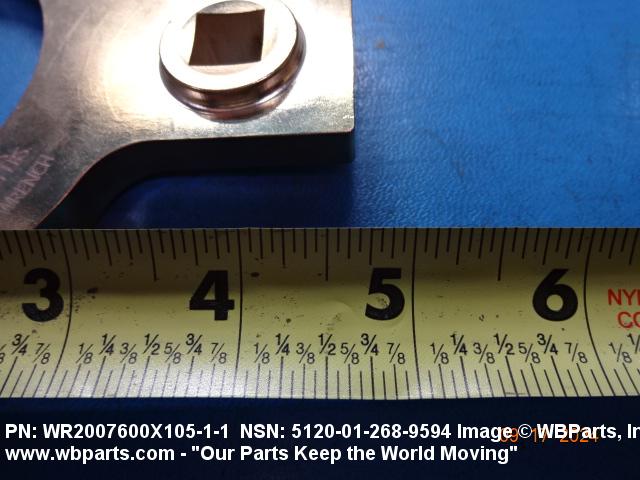

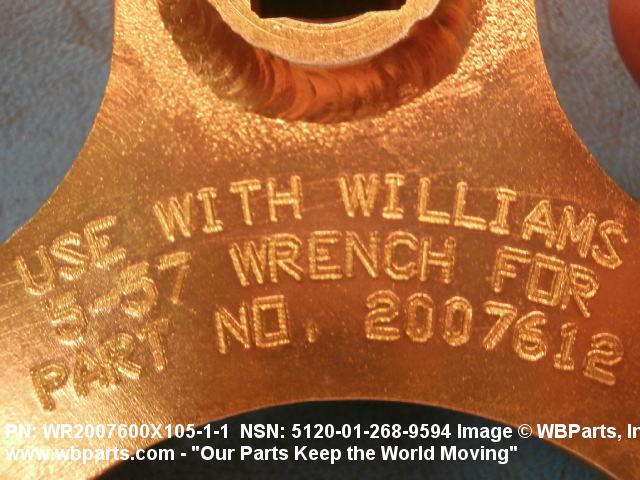

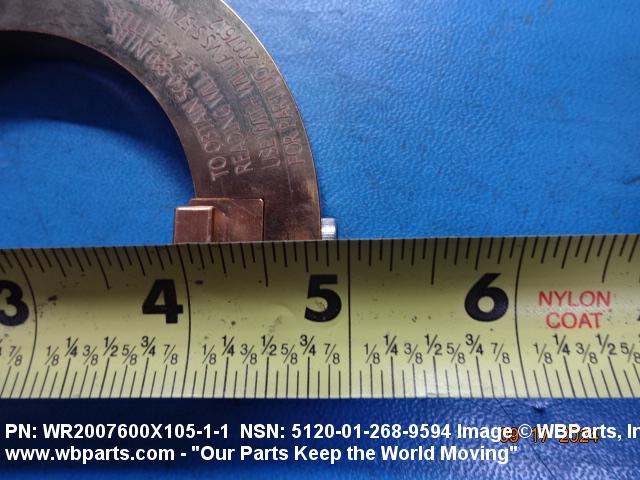

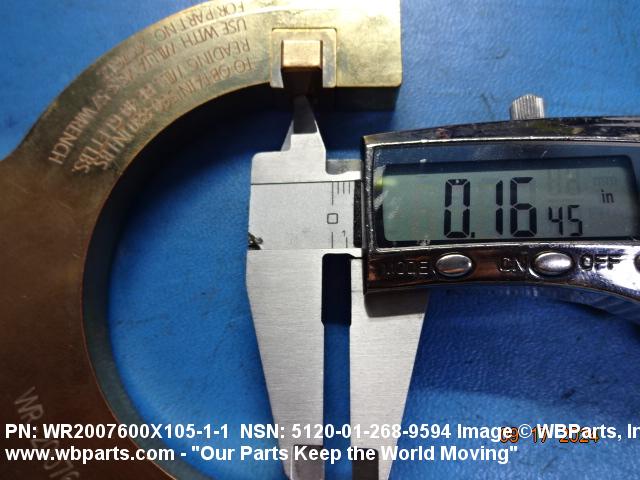

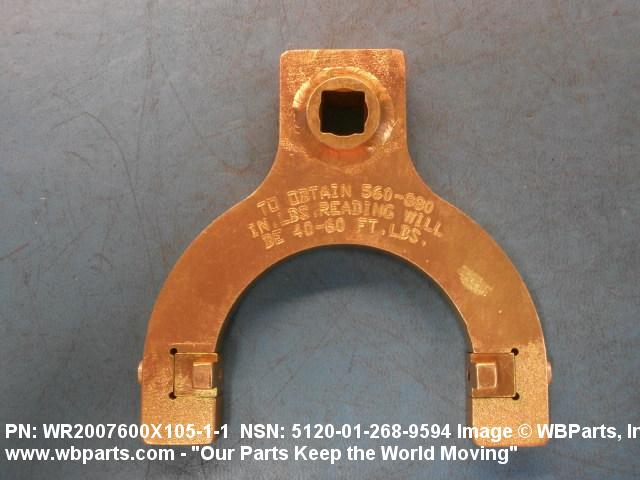

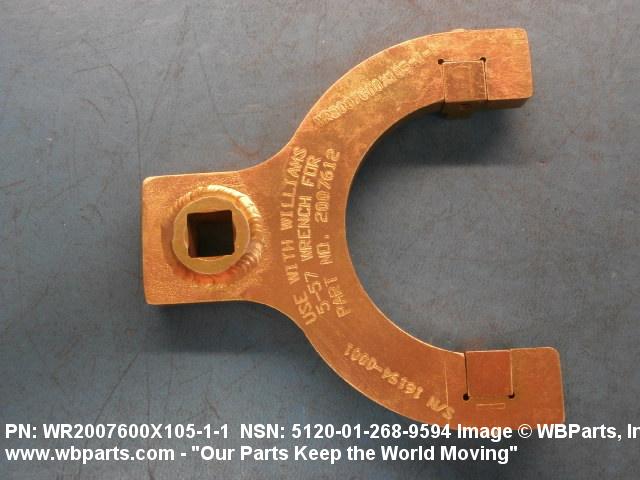

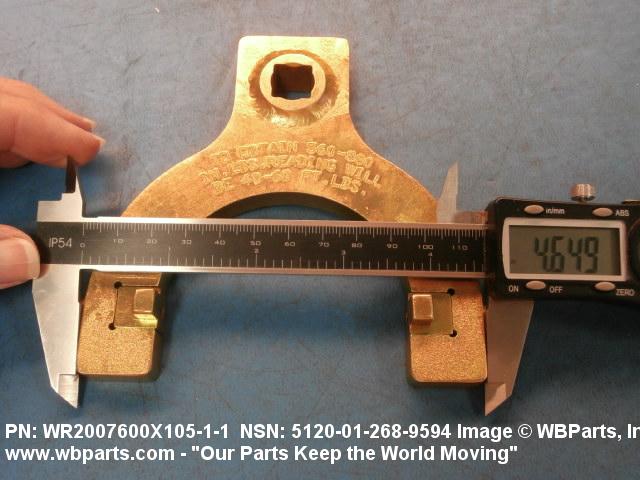

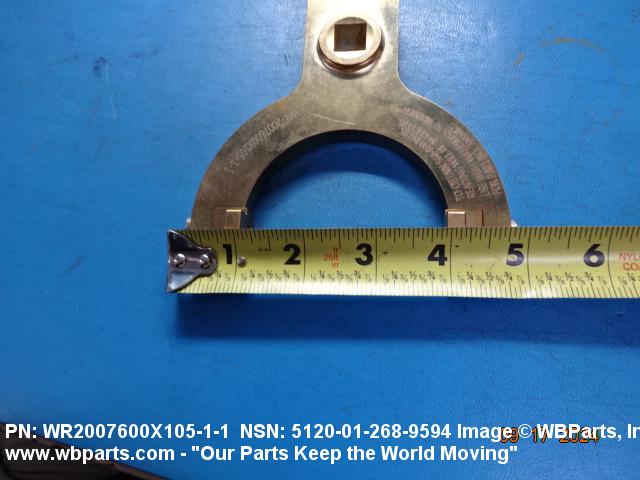

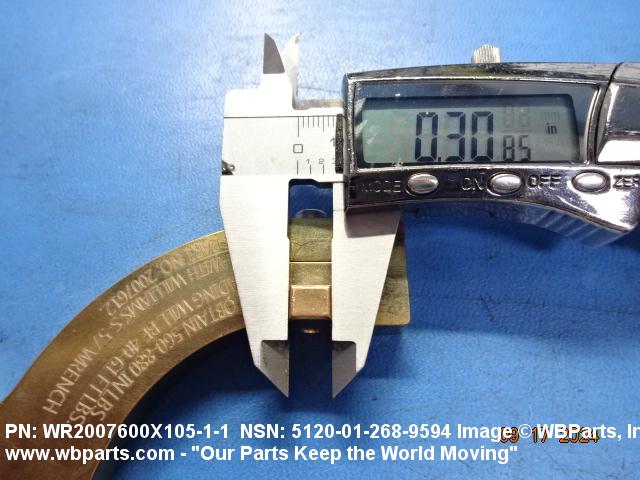

Drawings & Photos | NSN 5120-01-268-9594
Demand History | NSN 5120-01-268-9594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-268-9594 | 2024-08-243 | 1 | United States |
| 5120-01-268-9594 | 2023-06-153 | 1 | us |
| 5120-01-268-9594 | 2018-09-253 | 1 | US |
| 5120-01-268-9594 | 2018-07-184 | 1 | United States |
| 5120-01-268-9594 | 2018-06-170 | 1 | US |
| 5120-01-268-9594 | 2016-06-154 | 1 | us |
| WR2007600X10511 | 2014-04-114 | 2 | US |
| WR2007600X10511 | 2014-04-105 | 2 | US |
Cross Reference | NSN 5120-01-268-9594
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WR2007600X105-1-1 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-268-9594
Technical Data | NSN 5120-01-268-9594
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 676 FACE LUG |

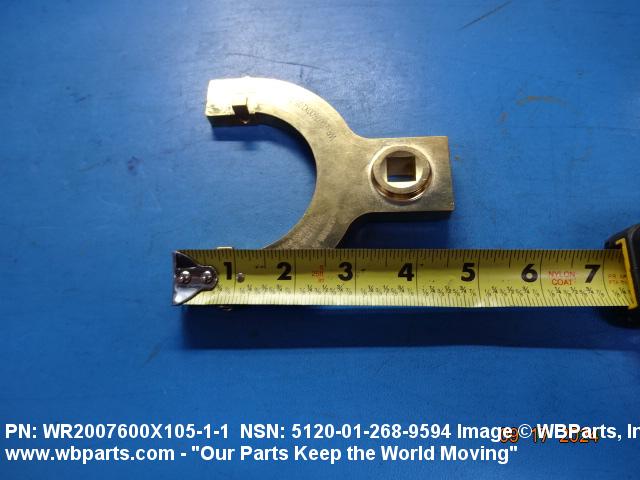

| OVERALL LENGTH | 5.000 INCHES NOMINAL |
| OVERALL WIDTH | 5.000 INCHES NOMINAL |

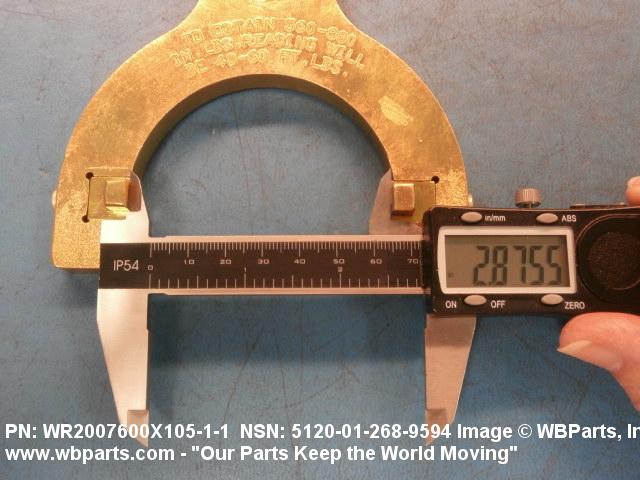

| DRIVE SURFACE SIZE | 2.875 INCHES NOMINAL SINGLE END |

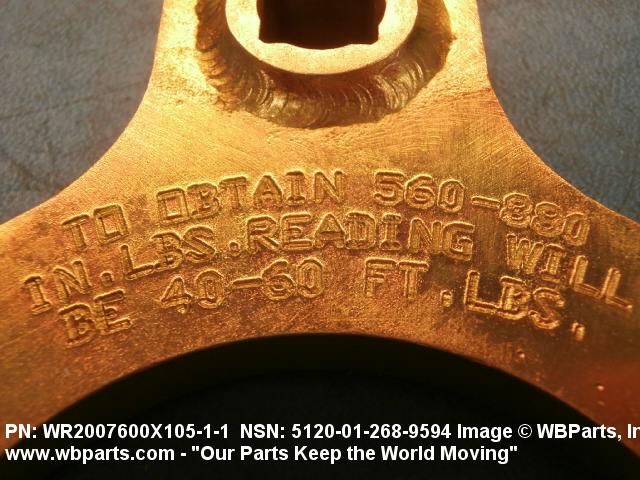

| TORQUE CAPACITY | 720.0 INCH-POUNDS NOMINAL |
| SPECIAL FEATURES | ADJUSTABLE PRONGS,ASSEMBLING GLAND NUT TO CYLINDER ASSEMBLY,NOSE LANDING GEAR SHOCK STRUT |
| III END ITEM IDENTIFICATION | F-16 ACFT |
| MANUFACTURERS CODE | 17576 |
| DESIGN CONTROL REFERENCE | WR2007600X105-1-1 |
Restrictions/Controls & Freight Information | NSN 5120-01-268-9594
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
