NSN 5120-01-117-6378 PWA12270, 01-117-6378, 011176378
Product Details | SPANNER WRENCH
5120-01-117-6378 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: PWA12270, 5120-01-117-6378, 01-117-6378, 5120011176378, 011176378
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 19 AUG 1981 | 01-117-6378 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-01-117-6378
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-117-6378
Technical Data | NSN 5120-01-117-6378
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

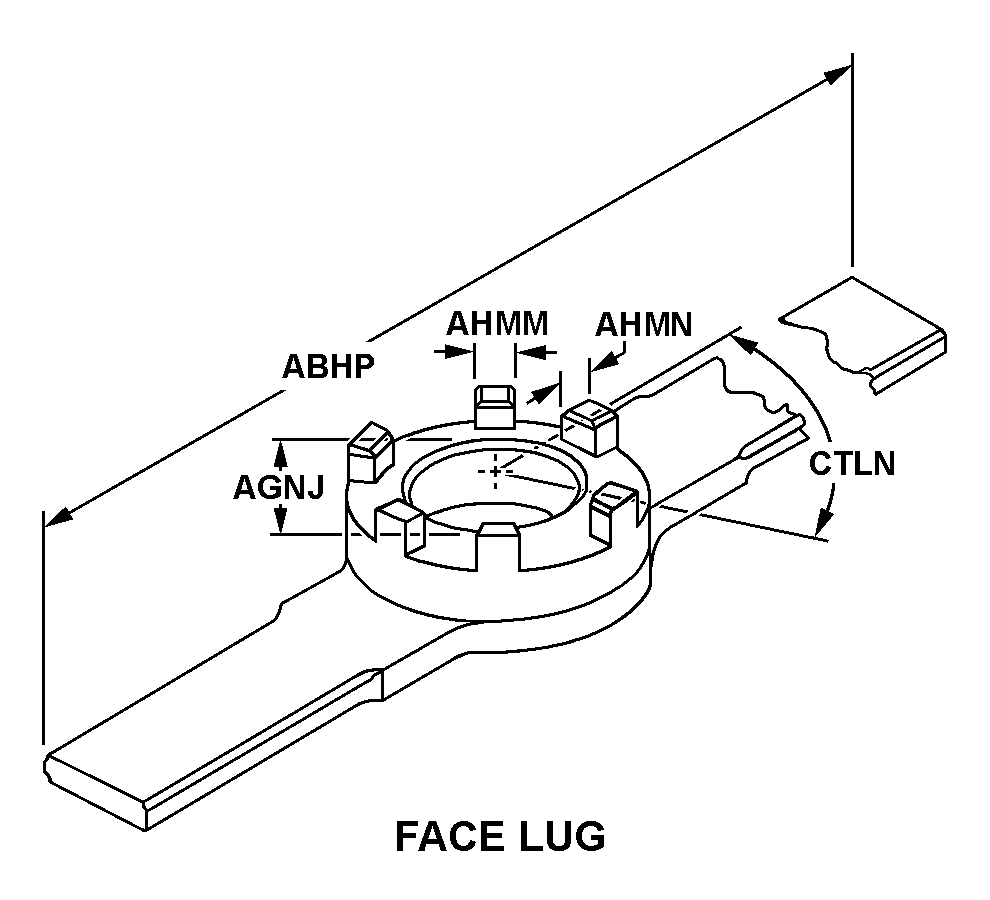

| STYLE DESIGNATOR | 690 FACE LUG |
| OVERALL LENGTH | 13.125 INCHES NOMINAL |
| OPENING DIAMETER | 4.250 INCHES NOMINAL |
| LUG WIDTH | 0.500 INCHES MINIMUM AND 0.503 INCHES MAXIMUM |
| LUG THICKNESS | 0.220 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| ANGLE BETWEEN LUGS | 15.0 DEGREES NOMINAL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| SPECIAL TEST FEATURES | 1 END,WRENCHING FEATURE 1.005 IN. DIA BOLT |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA12270 |
