Product Details | SPANNER WRENCH

5120-01-104-6042 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: TLU-449/E, TLU449E, 232-12072-1, 5120-01-104-6042, 01-104-6042, 5120011046042, 232120721, 011046042

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 06 DEC 1980 01-104-6042

Drawings & Photos | NSN 5120-01-104-6042


Cross Reference | NSN 5120-01-104-6042

Part Number Cage Code Manufacturer
232-12072-1 81205 THE BOEING COMPANY DBA BOEING
TLU-449/E 07878 AERONAUTICAL AND SUPPORT EQUIPMENT TYPE DESIGNATION SYSTEM /ASETDS/

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-104-6042

Technical Data | NSN 5120-01-104-6042

Characteristic Specifications

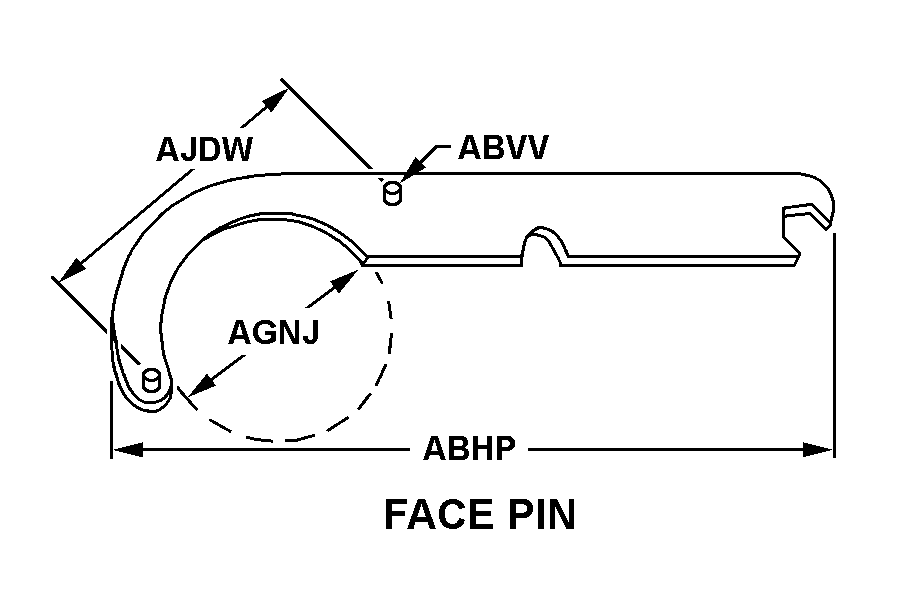

STYLE DESIGNATOR 726 FACE PIN
DRIVE SURFACE SIZE 0.375 INCHES NOMINAL SINGLE END
DRIVE END SHAPE SQUARE SINGLE END INTERNAL
III END ITEM IDENTIFICATION AGM-86B MISSILE
MANUFACTURERS CODE 81205
DESIGN CONTROL REFERENCE 232-12072-1

Restrictions/Controls & Freight Information | NSN 5120-01-104-6042

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating U 50
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code SX Oklahoma City Air Logistics Center
Tinker AFB, OK 73145-3043
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5120-01-104-6042

Category Code Description
Budget CodeE 2257X3020:Missile Replacement Equip and Vate
Materiel Management Aggregation CodeGFSX:AGM-86 AIR LAUNCHED CRUISE MISSILE (ALCM)
Price ValidationX The current standard price has been validated and the previous price was erroneous.
  • The item was overpriced and the contractor has refunded the overcharge or DoD activities did not actually pay the previous price. The price paid is within the analyzed acceptable range.
  • If the difference from the previous price exceeds $99.99, or if the price change exceeds 500 percent and the extended value of any affected transaction exceeds $99.99, then reverse-post procedures will apply where the stock fund has overcharged unit O&M Funds. These corrections will be limited to the current fiscal year.
    • ZOP or Standard Price challenges are permissible, but should be supported by adequate justification
Source of SupplyFHZOklahoma City Air Logistics Center
Tinker AFB, OK 73145-5989
AgencyDFDepartment of the Air Force
Service OrganizationLLead Service - 22 (Repairable)
ReparabilityUAF Equipment Management System (AFEMS)
Acquisition Advice CodesCSERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
