NSN 5120-01-040-3519 WR2006600X10111, WR2006600X101-1-1, 01-040-3519
Product Details | SPANNER WRENCH
5120-01-040-3519 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: WR2006600X10111, WR2006600X101-1-1, 5120-01-040-3519, 01-040-3519, 5120010403519, 010403519
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 06 MAY 1977 | 01-040-3519 | 03476 ( WRENCH, SPANNER ) |

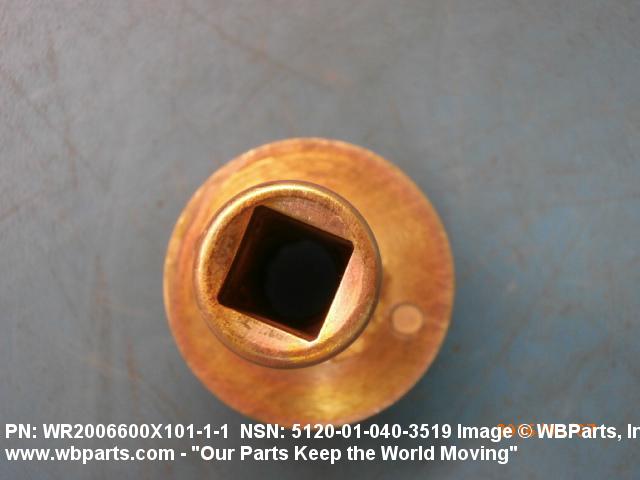

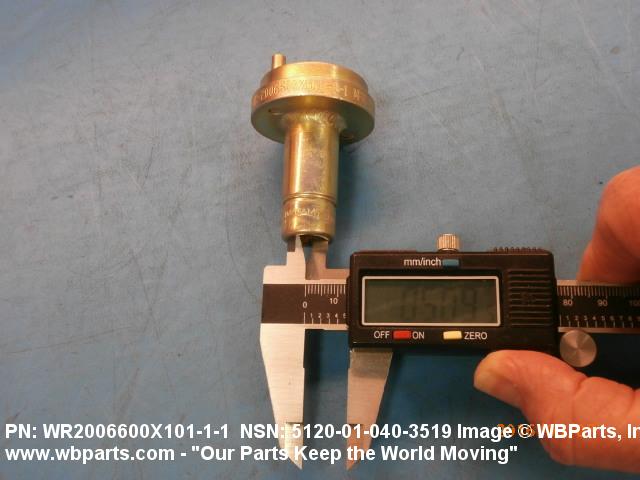

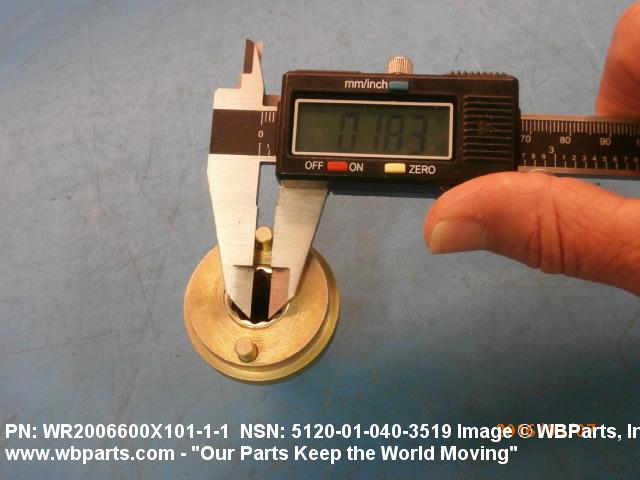

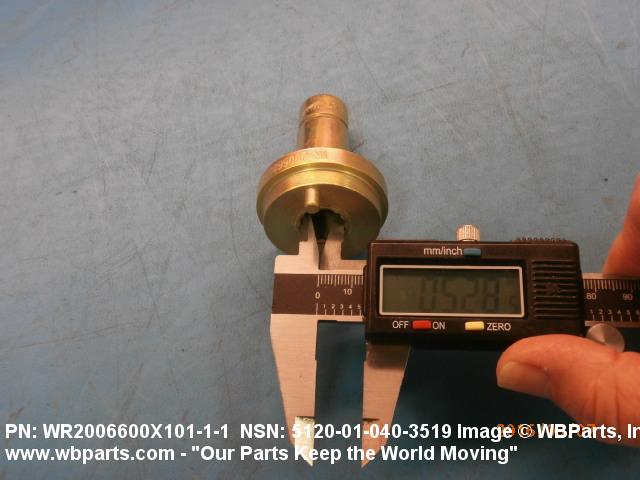

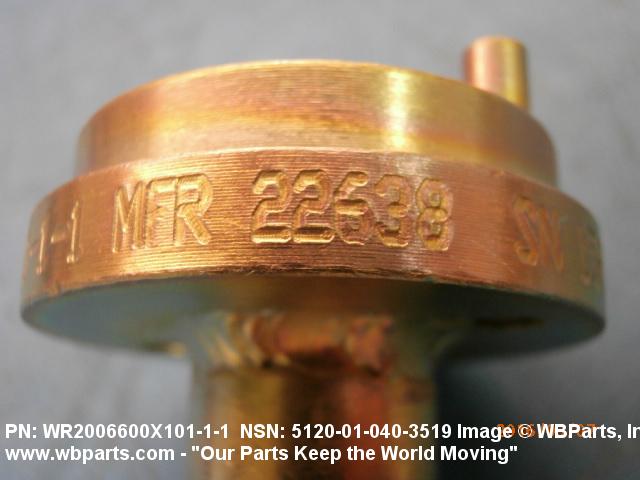

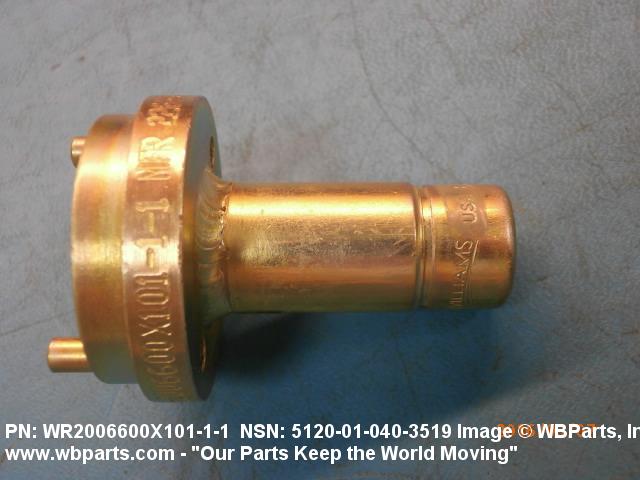

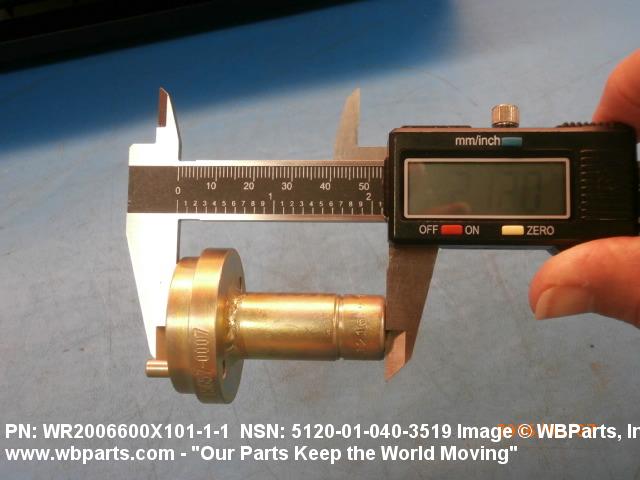

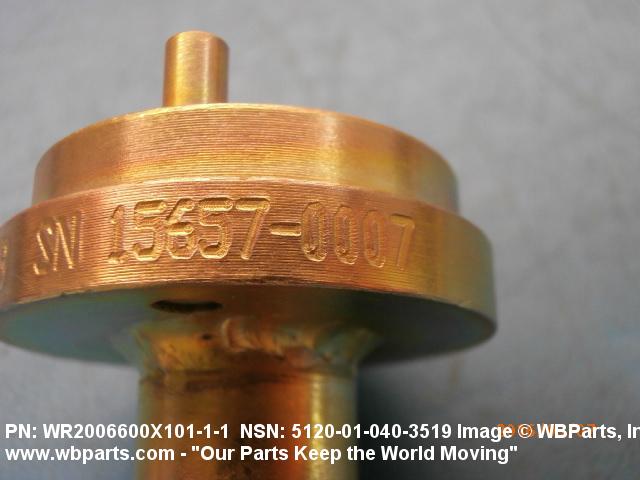

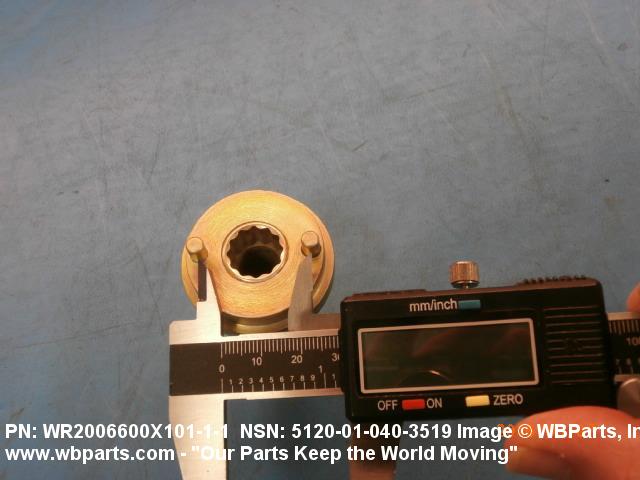

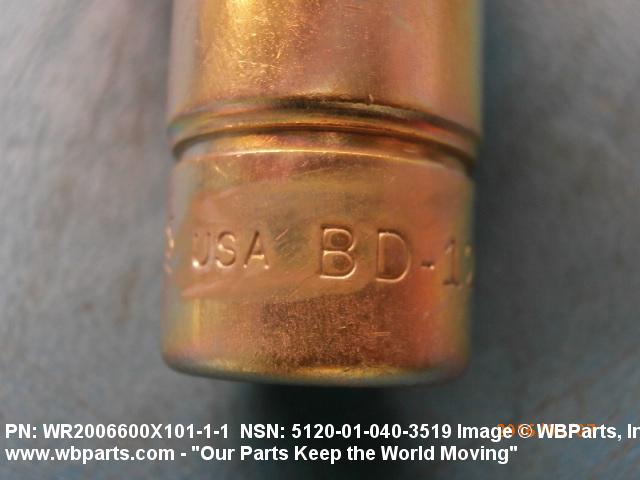

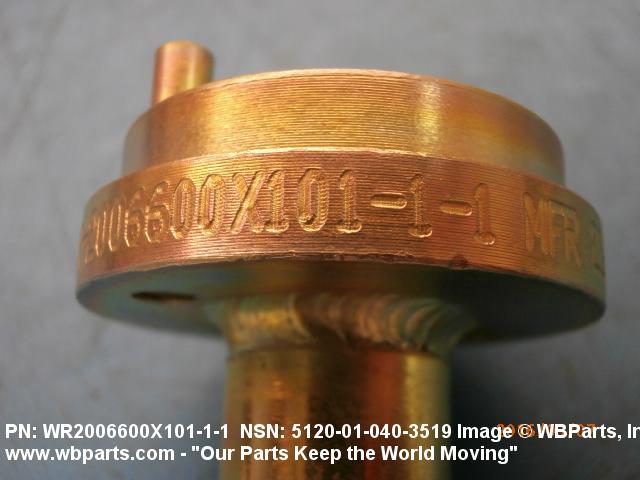

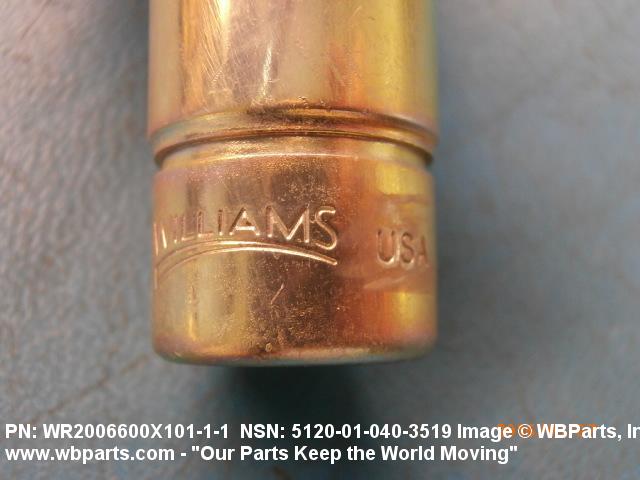

Drawings & Photos | NSN 5120-01-040-3519
Demand History | NSN 5120-01-040-3519
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-040-3519 | 2020-12-343 | 1 | US |
| 5120-01-040-3519 | 2018-09-253 | 1 | US |
| 5120-01-040-3519 | 2016-01-21 | 1 | United States |
| 5120-01-040-3519 | 2015-10-293 | 1 | United States |
| 5120-01-040-3519 | 2015-09-271 | 1 | United States |
| 5120-01-040-3519 | 2015-01-14 | 1 | United States |
Cross Reference | NSN 5120-01-040-3519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WR2006600X101-1-1 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-040-3519
Technical Data | NSN 5120-01-040-3519
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 807 TUBULAR PIN |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| PIN DIAMETER | 0.183 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 1.160 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.500 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE BODY CENTER INTERNAL |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
| III END ITEM IDENTIFICATION | F-16 A/B ACFT,NOSE LANDING GEAR SHOCK STRUT,ORIFICE SUPPORT |
| MANUFACTURERS CODE | 17576 |
| DESIGN CONTROL REFERENCE | WR2006600X101-1-1 |
Restrictions/Controls & Freight Information | NSN 5120-01-040-3519
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
