Product Details | SPANNER WRENCH

5120-01-013-6178 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: 2865940, 5120-01-013-6178, 01-013-6178, 5120010136178, 010136178

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 07 DEC 1975 01-013-6178

Drawings & Photos | NSN 5120-01-013-6178


Cross Reference | NSN 5120-01-013-6178

Part Number Cage Code Manufacturer
2865940 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-013-6178

Technical Data | NSN 5120-01-013-6178

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 6061 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-250/11 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625,TYPE 1,CLASS2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL

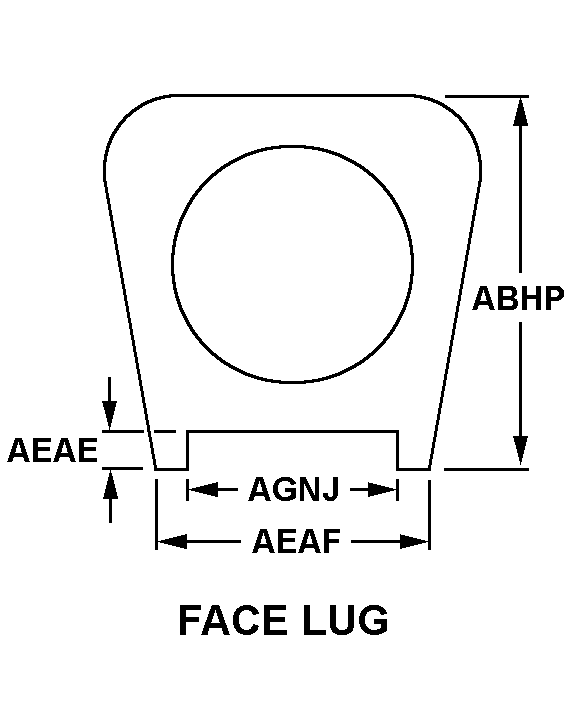

STYLE DESIGNATOR 701 FACE LUG
OVERALL LENGTH 4.750 INCHES NOMINAL
OVERALL WIDTH 5.047 INCHES NOMINAL
BLADE LENGTH 0.500 INCHES NOMINAL
BLADE WIDTH 5.047 INCHES NOMINAL
OPENING DIAMETER 4.550 INCHES NOMINAL
LUG WIDTH 0.250 INCHES NOMINAL
LUG THICKNESS 0.480 INCHES NOMINAL
LUG LENGTH 0.500 INCHES NOMINAL
MANUFACTURERS CODE 10001
DESIGN CONTROL REFERENCE 2865940
