NSN 5120-00-935-7362 AS954 , AS954 TY2CL3STA , AS954TY2CL3STA
Product Details | BOX WRENCH
5120-00-935-7362 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: AS954 , AS954 TY2CL3STA , AS954TY2CL3STA, B107.100, B107.100 BOX TY1CL2, B107.6, B107.6 TY1CL1ST2, B107.9 , B107.9 TY1CL2 , B107100, B107100BOXTY1CL2, B1076, B1076TY1CL1ST2, B1079, B1079TY1CL2, GGGW1437, GGG-W-1437, GGG-W-1437 TY3CL1, GGGW1437TY3CL1, 27334, 27-334, 5120-00-935-7362, 00-935-7362, 5120009357362, 009357362
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 17 MAY 1968 | 00-935-7362 | 03555 ( WRENCH, BOX ) |

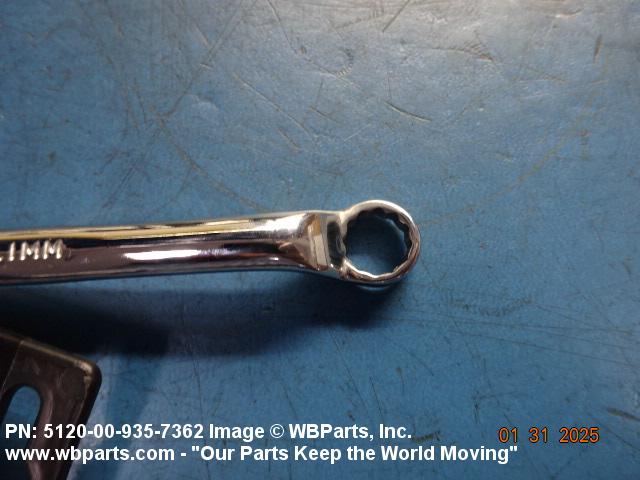

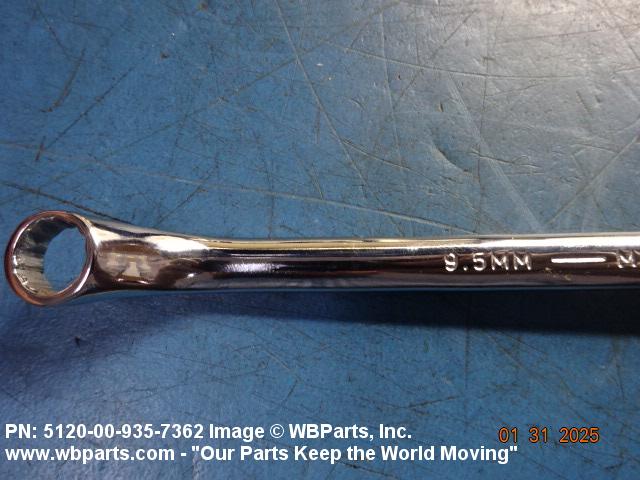

Drawings & Photos | NSN 5120-00-935-7362
Demand History | NSN 5120-00-935-7362
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-935-7362 | 2024-07-194 | 17 | us |
| 5120-00-935-7362 | 2024-05-130 | 17 | United States |
| AS954 | 2021-01-16 | 2 | US |
| B107100 | 2021-01-16 | 2 | US |
| 5120-00-935-7362 | 2020-07-202 | 1 | US |
| AS954 | 2019-09-248 | 1 | US |
| B107100 | 2018-09-255 | 1 | US |
| 5120-00-935-7362 | 2017-09-263 | 100 | US |
| B107.9 | 2013-08-214 | 1 | US |
| B1079 | 2012-06-174 | 3 | |
| B1076 | 2012-04-112 | 4 | |
| 5120-00-935-7362 | 2012-01-25 | 3 | United States |
| B1079 | 2011-12-364 | 5 | |
| B107.100 | 2011-10-278 | 4 | US |
Cross Reference | NSN 5120-00-935-7362
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27-334 | 03914 | ARMSTRONG BROS TOOL CO |
| 27-334 | 08292 | EASCO HAND TOOLS INC DIV DANAHER TOOL GROUP EASCO HAND |
| 27-334 | 636D0 | APEX TOOL GROUP, LLC |
| 27-334 | R1120 | SATAIR A/S |
| AS954 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS954 TY2CL3STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.100 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.6 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.9 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.9 TY1CL2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| GGG-W-1437 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-W-1437 TY3CL1 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-935-7362
Related Products | NSN 5120-00-935-7362
Technical Data | NSN 5120-00-935-7362
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | 41 ANGULAR OFFSET DOUBLE HEAD |
| OVERALL LENGTH | 7.000 INCHES MINIMUM AND 9.000 INCHES MAXIMUM |
| LARGE END OUTSIDE DIAMETER | 0.581 INCHES MAXIMUM |
| SMALL END OUTSIDE DIAMETER | 0.470 INCHES MAXIMUM |
| LARGE END HEAD THICKNESS | 0.312 INCHES MAXIMUM |
| SMALL END HEAD THICKNESS | 0.250 INCHES MAXIMUM |
| WRENCHING END OFFSET ANGLE | 15.0 DEGREES NOMINAL |
| WRENCHING SURFACE SIZE | 0.312 INCHES NOMINAL FIRST END 0.375 INCHES NOMINAL SECOND END |
| WRENCHING SURFACE SHAPE | 12 POINT BOTH ENDS INTERNAL |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.100 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 2 CLASS |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY OVERALL LENGTH |
Restrictions/Controls & Freight Information | NSN 5120-00-935-7362
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | 75 | GSA, FSS/FCSC Washington, DC 20406 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-935-7362
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
