Product Details | SPANNER WRENCH
5120-00-915-8540 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: 11576794, 5120-00-915-8540, 00-915-8540, 5120009158540, 009158540
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 22 NOV 1965 | 00-915-8540 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-00-915-8540
Cross Reference | NSN 5120-00-915-8540
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11576794 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-915-8540
Technical Data | NSN 5120-00-915-8540
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |

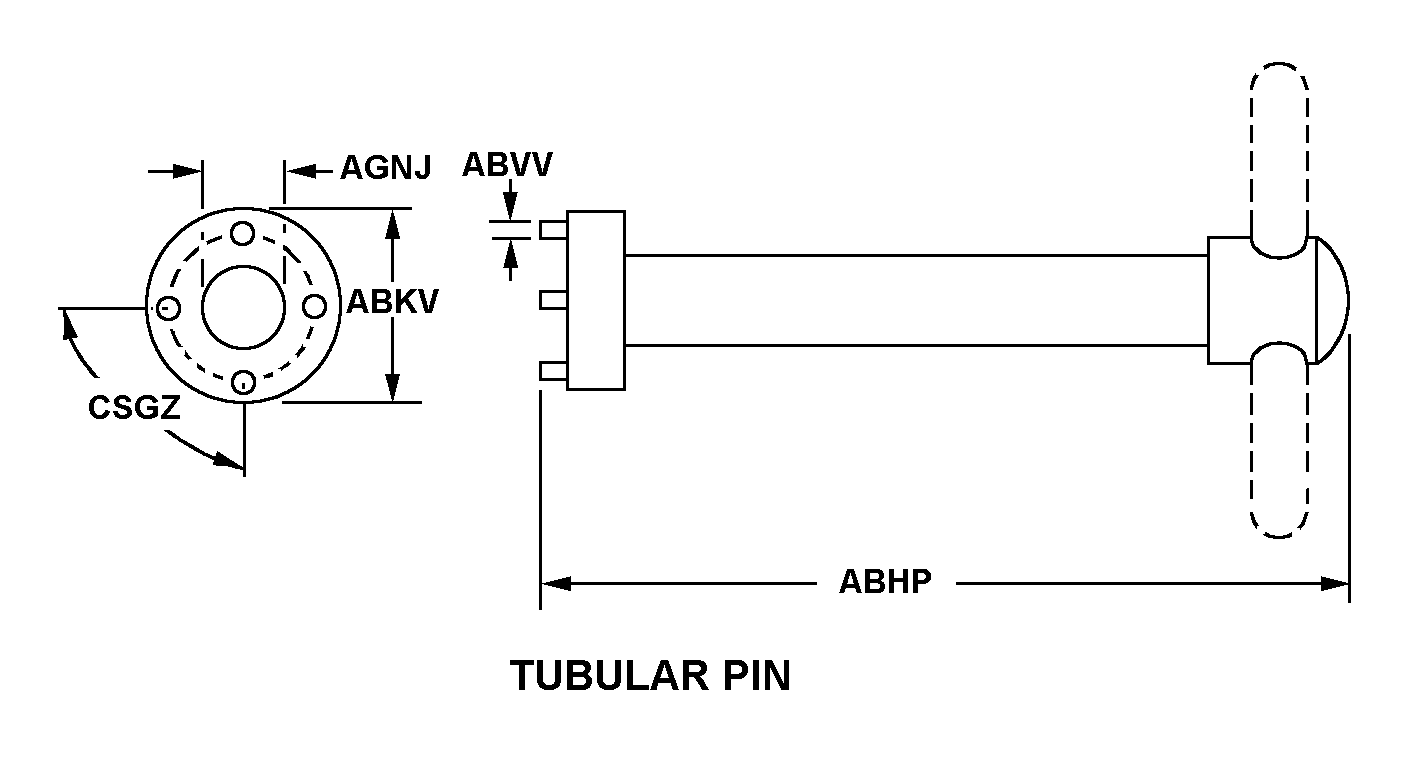

| STYLE DESIGNATOR | 805 TUBULAR PIN |
| OVERALL LENGTH | 7.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.470 INCHES NOMINAL |
| PIN DIAMETER | 0.094 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| OPENING DIAMETER | 1.462 INCHES MINIMUM AND 1.467 INCHES MAXIMUM |
| ANGLE BETWEEN PINS | 180.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 19206 |
| DESIGN CONTROL REFERENCE | 11576794 |
