Product Details | SPANNER WRENCH

5120-00-868-1873 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: 2558411, 863, 5120-00-868-1873, 00-868-1873, 5120008681873, 008681873

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1960 00-868-1873

Drawings & Photos | NSN 5120-00-868-1873


Cross Reference | NSN 5120-00-868-1873

Part Number Cage Code Manufacturer
2558411 55284 HONEYWELL INTERNATIONAL INC DBA HONEYWELL
863 33215 L-K TOOL AND MFG INC DIV OF W AND D MACHINERY CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-00-868-1873

Technical Data | NSN 5120-00-868-1873

Characteristic Specifications
SURFACE TREATMENT CHROMIUM OR NICKEL OR OXIDE OVERALL

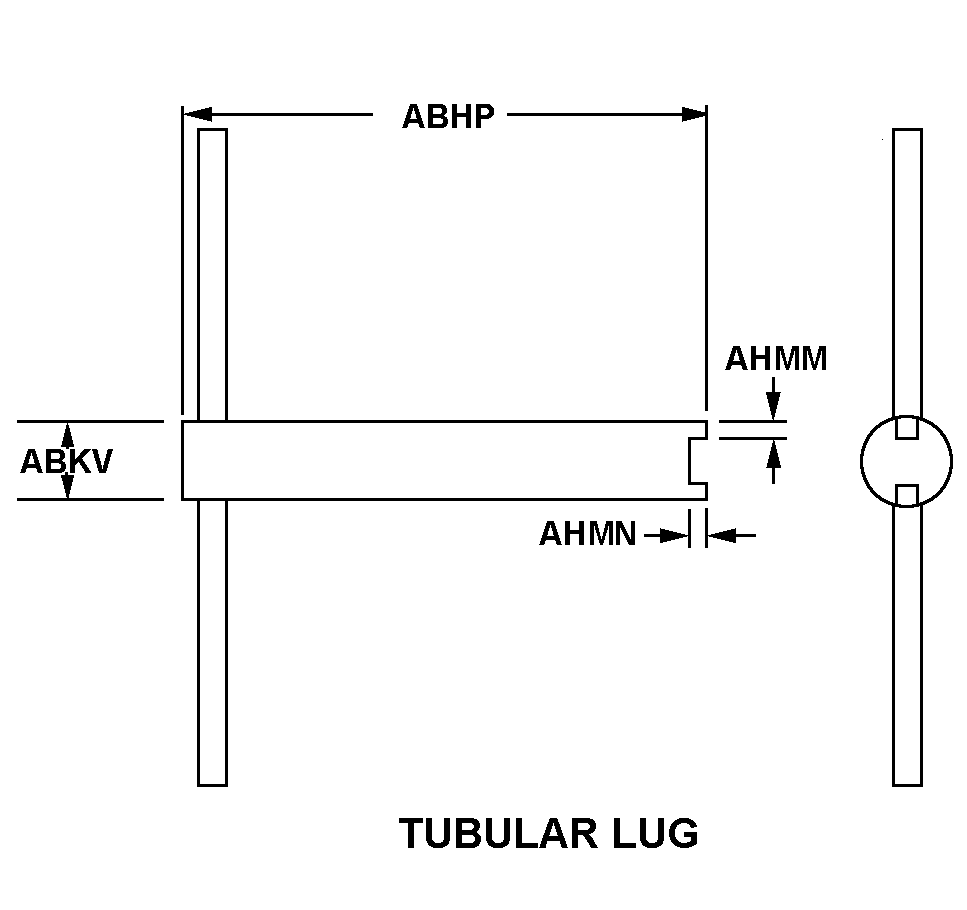

STYLE DESIGNATOR 776 TUBULAR LUG
OVERALL LENGTH 3.000 INCHES NOMINAL
OUTSIDE DIAMETER 2.062 INCHES NOMINAL
LUG WIDTH 0.281 INCHES NOMINAL
LUG THICKNESS 0.125 INCHES NOMINAL
MANUFACTURERS CODE 55284
DESIGN CONTROL REFERENCE 2558411

Restrictions/Controls & Freight Information | NSN 5120-00-868-1873

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Y Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions.
Special Handling Code 5 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5120-00-868-1873

Category Code Description
Cognizance Codes9QNavy-owned stocks of items accepted by the General Services Administration for support of Navy requirements
Naval Inventory Control Point, Mechanicsburg
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
G
EA : Each
