Product Details | SPANNER WRENCH

5120-00-867-8148 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: A60031003P1, A6003-1003P1, S3186001P, S318-6001P, S3186001P1, S318-6001P1, PA208101, PA208-10-1, 2142441, 215301, 215-301, 893, 5120-00-867-8148, 00-867-8148, 5120008678148, 008678148

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1960 00-867-8148

Drawings & Photos | NSN 5120-00-867-8148


Cross Reference | NSN 5120-00-867-8148

Part Number Cage Code Manufacturer
2142441 28527 EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED
215-301 94661 GENERAL DYNAMICS SATCOM TECHNOLOGIES, INC.
5120008678148 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
893 33215 L-K TOOL AND MFG INC DIV OF W AND D MACHINERY CO
A6003-1003P1 3B150 RAYTHEON TECHNICAL SERVICES COMPANY LLC
A6003-1003P1 49956 RAYTHEON COMPANY DBA RAYTHEON
PA208-10-1 94661 GENERAL DYNAMICS SATCOM TECHNOLOGIES, INC.
S318-6001P 49956 RAYTHEON COMPANY DBA RAYTHEON
S318-6001P1 49956 RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-00-867-8148

Technical Data | NSN 5120-00-867-8148

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-B-637 FED SPEC SINGLE MATERIAL RESPONSE OVERALL

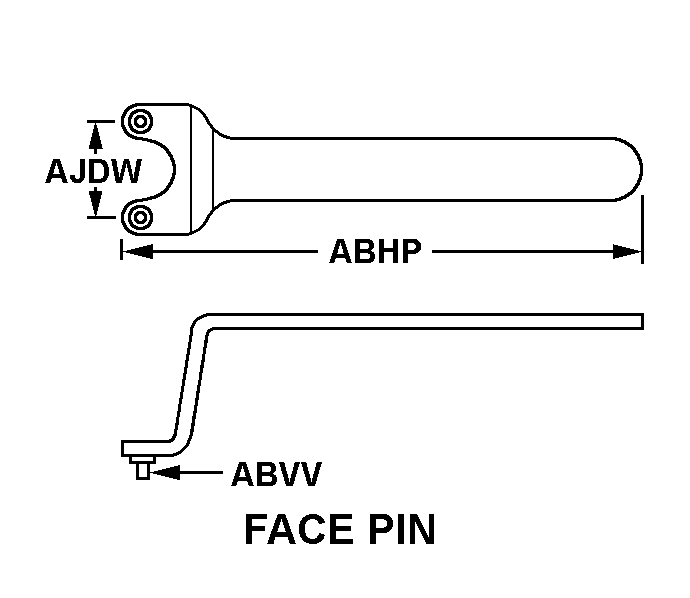

STYLE DESIGNATOR 713 FACE PIN
OVERALL LENGTH 6.000 INCHES NOMINAL
PIN DIAMETER 0.110 INCHES MINIMUM AND 0.116 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN PINS 1.135 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5120-00-867-8148

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
