NSN 5120-00-670-4374 HS7611, 00-670-4374, 006704374
Product Details | SPANNER WRENCH
5120-00-670-4374 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: HS7611, 5120-00-670-4374, 00-670-4374, 5120006704374, 006704374
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-670-4374 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-00-670-4374
Demand History | NSN 5120-00-670-4374
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-670-4374 | 2021-12-350 | 1 | ES |
| HS7611 | 2020-08-218 | 1 | United States |
| 5120-00-670-4374 | 2019-05-135 | 1 | United States |
| 5120-00-670-4374 | 2018-05-144 | 1 | United States |
| 5120-00-670-4374 | 2017-02-39 | 1 | MANUAL |
| HS7611 | 2017-02-39 | 1 | FX |
| 5120-00-670-4374 | 2011-11-326 | 2 | United States |
Cross Reference | NSN 5120-00-670-4374
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HS7611 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-670-4374
Related Products | NSN 5120-00-670-4374
Technical Data | NSN 5120-00-670-4374
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE OVERALL |
| SURFACE TREATMENT | ANY ACCEPTABLE OVERALL |

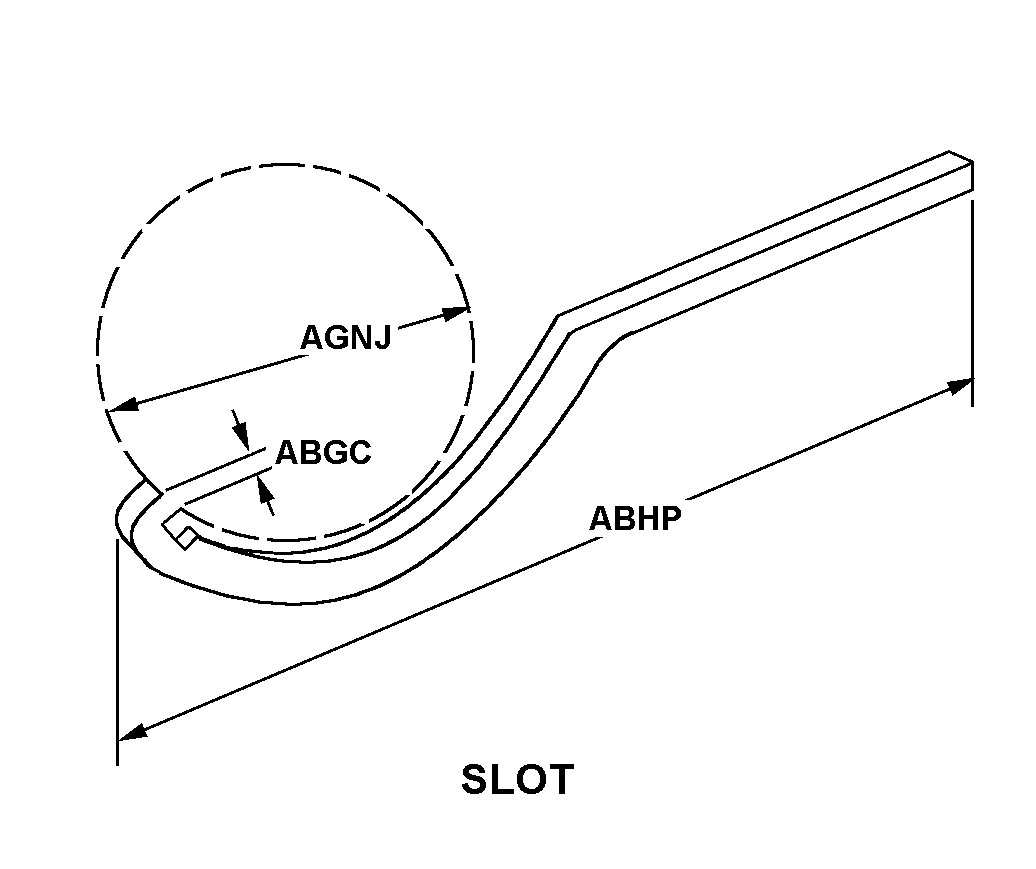

| STYLE DESIGNATOR | 650 SLOT |
| SLOT WIDTH | 0.780 INCHES NOMINAL |
| OVERALL LENGTH | 13.000 INCHES NOMINAL |
| OPENING DIAMETER | 4.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | HS7611 |
Restrictions/Controls & Freight Information | NSN 5120-00-670-4374
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-670-4374
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | PP | TG:PROPELLER SYSTEMS |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
