NSN 5120-00-529-2263 A8837, 00-529-2263, 005292263
Product Details | SPANNER WRENCH
5120-00-529-2263 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: A8837, 5120-00-529-2263, 00-529-2263, 5120005292263, 005292263
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-529-2263 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-00-529-2263
Cross Reference | NSN 5120-00-529-2263
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A8837 | 78385 | MEGGITT (TROY), INC. DIV MEGGITT PLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-529-2263
Technical Data | NSN 5120-00-529-2263
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE OVERALL |
| SURFACE TREATMENT | ANY ACCEPTABLE OVERALL |

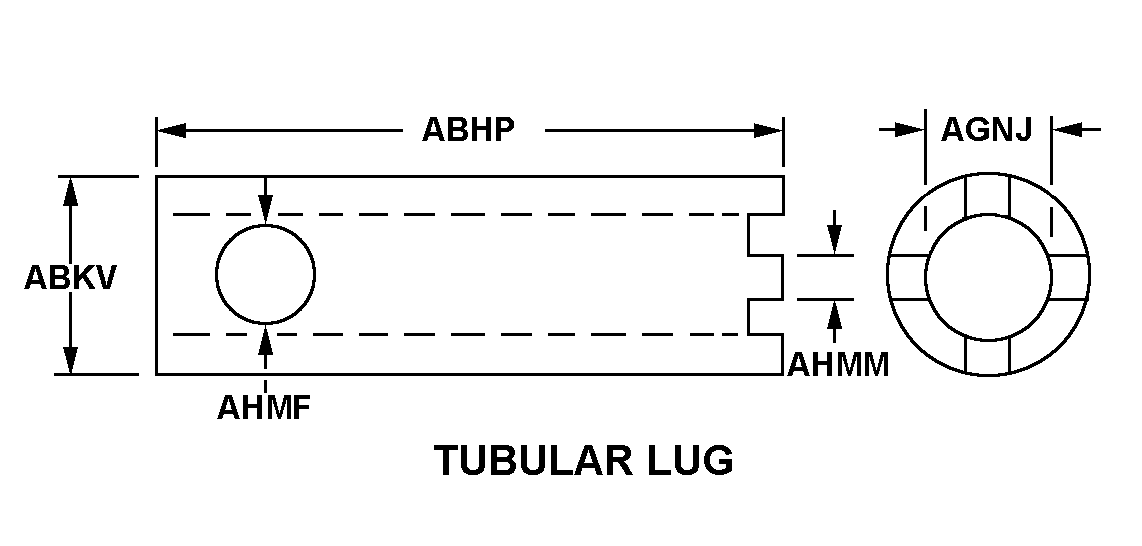

| STYLE DESIGNATOR | 763 TUBULAR LUG |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.656 INCHES NOMINAL |
| OPENING DIAMETER | 0.468 INCHES NOMINAL |
| HANDLE HOLE DIAMETER | 0.250 INCHES NOMINAL |
| LUG WIDTH | 0.052 INCHES MINIMUM AND 0.057 INCHES MAXIMUM |
| MANUFACTURERS CODE | 78385 |
| DESIGN CONTROL REFERENCE | A8837 |
Restrictions/Controls & Freight Information | NSN 5120-00-529-2263
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
