NSN 5120-00-473-4484 D28101PC32, D2-8101PC32, D28123PC181183
Product Details | SPANNER WRENCH
5120-00-473-4484 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: D28101PC32, D2-8101PC32, D28123PC181183, D2-8123PC181-183, D28137PC29, D2-8137PC29, 0700213PC184185, 0700213PC184-185, 0800465PC184185, 0800465PC184-185, 30J256PC29, 30J277PCS146147, 30J277PCS146-147, 44J28PC77, 5120-00-473-4484, 00-473-4484, 5120004734484, 004734484
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-473-4484 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-00-473-4484
Cross Reference | NSN 5120-00-473-4484
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0700213PC184-185 | 21444 | REXNORD LLC DIV FALK GEAR GROUP DIVISION |
| 0800465PC184-185 | 21444 | REXNORD LLC DIV FALK GEAR GROUP DIVISION |
| 30J256PC29 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 30J277PCS146-147 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 44J28PC77 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| D2-8101PC32 | 73057 | USM CORP SUB OF EMHART INDUSTRIES INC |
| D2-8123PC181-183 | 73057 | USM CORP SUB OF EMHART INDUSTRIES INC |
| D2-8137PC29 | 73057 | USM CORP SUB OF EMHART INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-473-4484
Technical Data | NSN 5120-00-473-4484
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

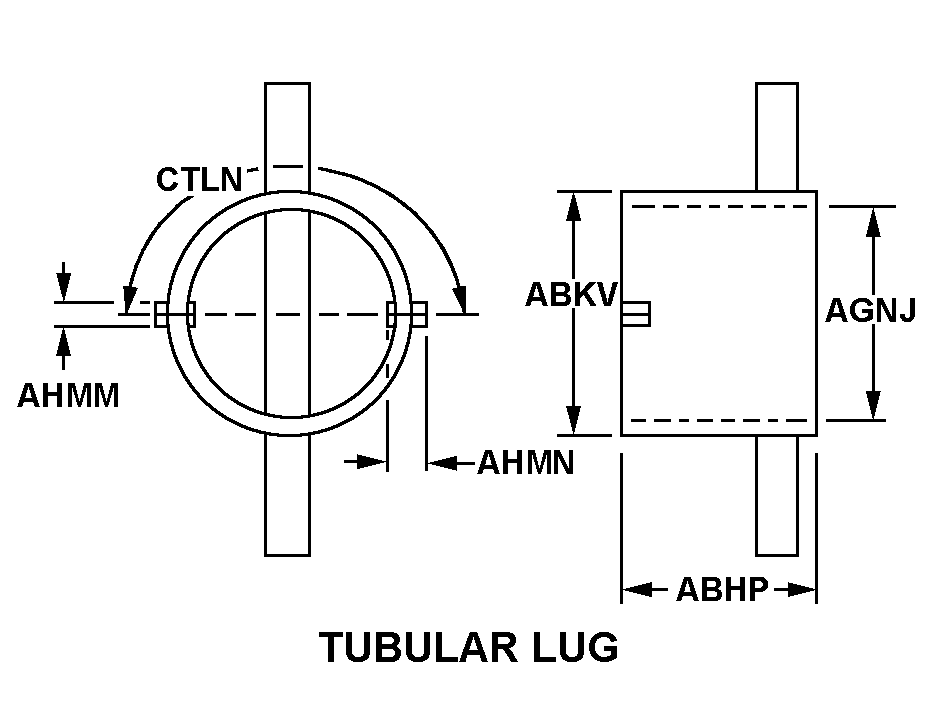

| STYLE DESIGNATOR | 778 TUBULAR LUG |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 7.500 INCHES NOMINAL |
| OPENING DIAMETER | 6.562 INCHES NOMINAL |
| LUG WIDTH | 0.562 INCHES NOMINAL |
| LUG THICKNESS | 1.000 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 180.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5120-00-473-4484
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-00-473-4484
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
