NSN 5120-00-329-6255 HSP4214, 00-329-6255, 003296255
Product Details | SPANNER WRENCH
5120-00-329-6255 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: HSP4214, 5120-00-329-6255, 00-329-6255, 5120003296255, 003296255
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-329-6255 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-00-329-6255
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-329-6255
Technical Data | NSN 5120-00-329-6255
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |

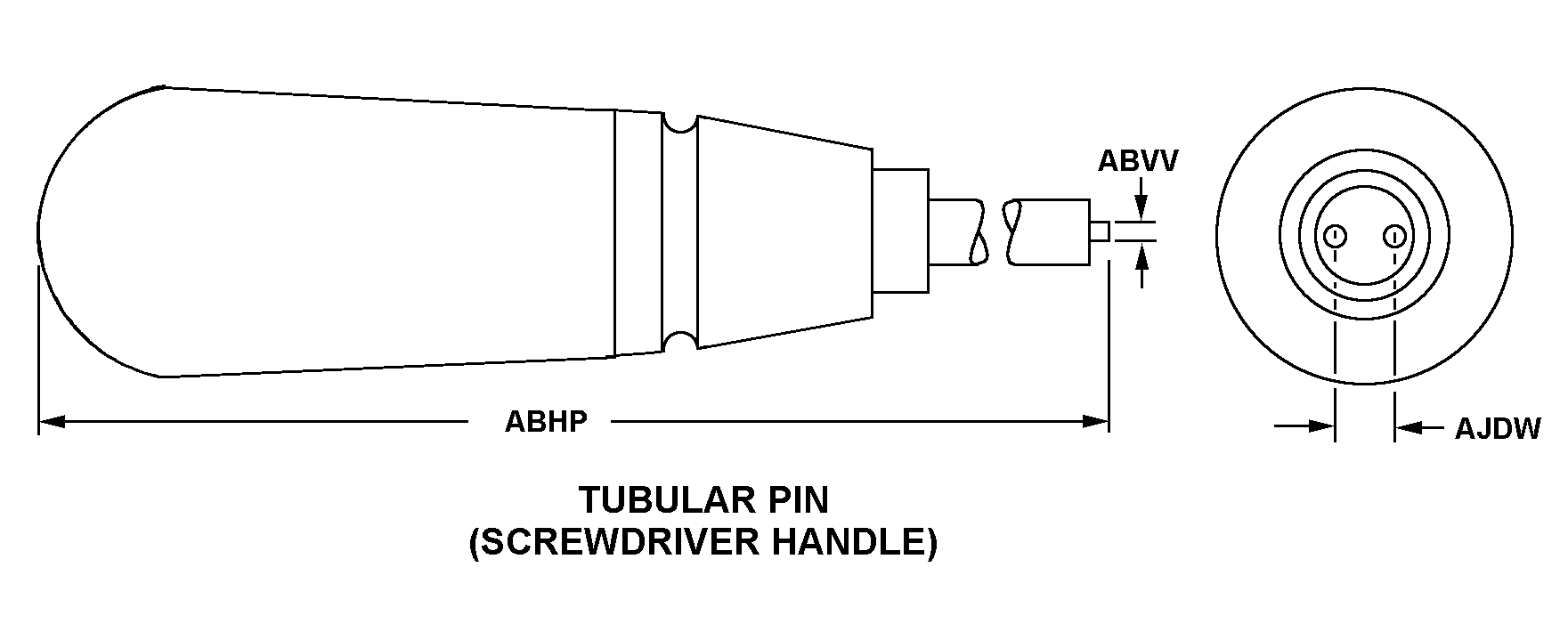

| STYLE DESIGNATOR | 802 TUBULAR PIN |
| OVERALL LENGTH | 10.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.125 INCHES NOMINAL |
| PIN DIAMETER | 0.375 INCHES NOMINAL |
| OPENING DIAMETER | 1.875 INCHES NOMINAL |
| HANDLE HOLE DIAMETER | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 2.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | HSP4214 |
Restrictions/Controls & Freight Information | NSN 5120-00-329-6255
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
