Product Details | SPANNER WRENCH
5120-00-288-9076 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: 45A9906, 5120-00-288-9076, 00-288-9076, 5120002889076, 002889076
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-288-9076 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-00-288-9076
Cross Reference | NSN 5120-00-288-9076
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 45A9906 | 80049 | DEPARTMENT OF THE AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-288-9076
Technical Data | NSN 5120-00-288-9076
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

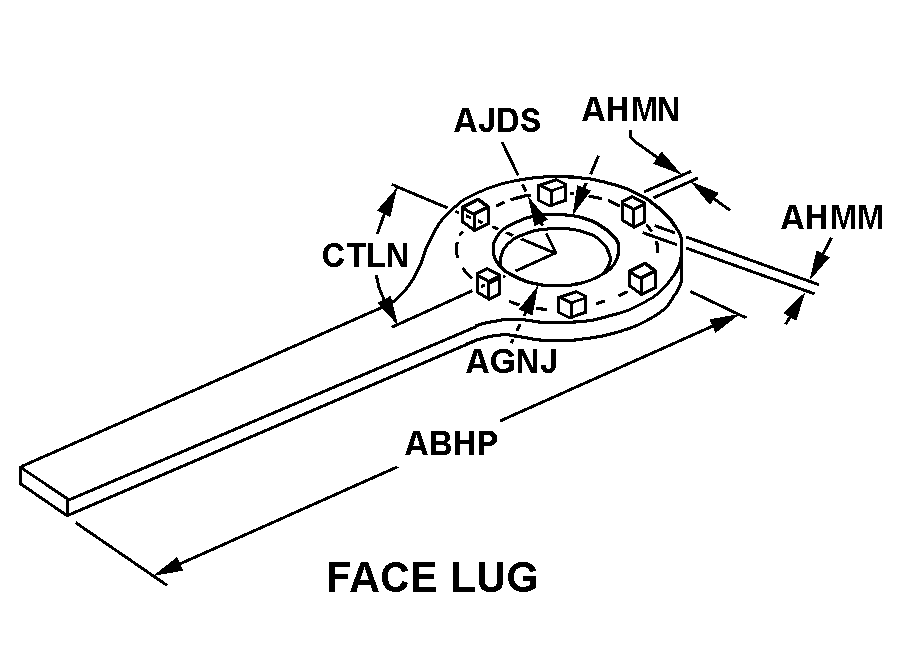

| STYLE DESIGNATOR | 688 FACE LUG |
| OVERALL LENGTH | 6.328 INCHES MINIMUM AND 6.359 INCHES MAXIMUM |
| OPENING DIAMETER | 2.171 INCHES MINIMUM AND 2.203 INCHES MAXIMUM |
| LUG WIDTH | 0.063 INCHES NOMINAL |
| LUG THICKNESS | 0.078 INCHES NOMINAL |
| LUG CIRCLE RADIUS | 1.188 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 72.0 DEGREES NOMINAL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 48.0 ROCKWELL C MAXIMUM |
| MANUFACTURERS CODE | 80049 |
| DESIGN CONTROL REFERENCE | 45A9906 |
