NSN 5120-00-044-2979 TQSS025FU, TQSS025FUA, 990C968H01
Product Details | TORQUE SCREWDRIVER
5120-00-044-2979 A manual tool for tightening vairous fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets, screwdriver bits, and other types of wrenching adapters. Torque value may be manually set and adjusted by user of may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is spun in-line with axis of fastener rotation to apply torque. For items with handles that are swung at right angle to axis of fastener rotation to apply torque, see WRENCH, TORQUE.2025120000065150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: TQSS025FU, TQSS025FUA, 990C968H01, 5120-00-044-2979, 00-044-2979, 5120000442979, 000442979
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 29 MAY 1968 | 00-044-2979 | 67439 ( SCREWDRIVER, TORQUE ) |
Drawings & Photos | NSN 5120-00-044-2979
Demand History | NSN 5120-00-044-2979
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-044-2979 | 2013-06-163 | 1 | United States |
Cross Reference | NSN 5120-00-044-2979
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 990C968H01 | 18323 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ELECTRONIC SYSTEMS |
| TQSS025FU | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| TQSS025FU | C7127 | SNAP-ON HOLDINGS GMBH DBA SUN DIAGNOSTICS |
| TQSS025FUA | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| TQSS025FUA | C7127 | SNAP-ON HOLDINGS GMBH DBA SUN DIAGNOSTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-044-2979
Technical Data | NSN 5120-00-044-2979
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |

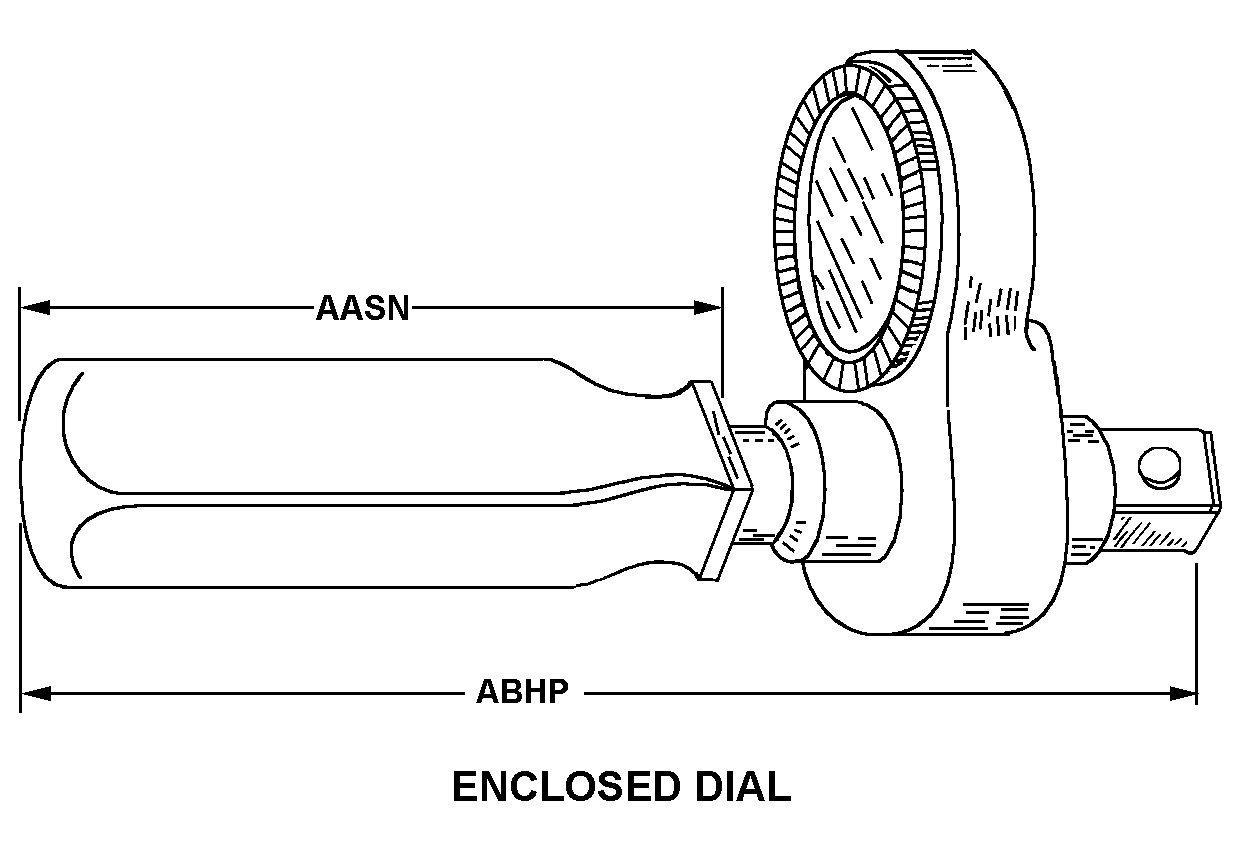

| STYLE DESIGNATOR | 859 ENCLOSED DIAL |
| OVERALL LENGTH | 5.250 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.250 INCHES NOMINAL HANDLE |
| DRIVE END SHAPE | SQUARE SINGLE END EXTERNAL |
| TORQUE CAPACITY | 0.0 INCH-OUNCES MINIMUM AND 48.0 INCH-OUNCES MAXIMUM AND 0.0 INCH-POUNDS MINIMUM AND 3.0 INCH-POUNDS MAXIMUM |
| TORQUE INDICATING MECHANISM | DIAL |
| TORQUE SIGNAL METHOD | DIAL INDICATOR |
| TORQUE SCALE GRADUATION | 1.00 INCH-OUNCES |
| FURNISHED ITEMS | CASE |
| SPECIAL FEATURES | MEMORY INDICATOR; STUBBY SCREWDRIVER STYLE HANDLE |
Restrictions/Controls & Freight Information | NSN 5120-00-044-2979
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-044-2979
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
