NSN 5120-01-267-3060 B107.14, B107.14 TY1CLEST2, B107.14M
Product Details | TORQUE SCREWDRIVER
5120-01-267-3060 A manual tool for tightening vairous fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets, screwdriver bits, and other types of wrenching adapters. Torque value may be manually set and adjusted by user of may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is spun in-line with axis of fastener rotation to apply torque. For items with handles that are swung at right angle to axis of fastener rotation to apply torque, see WRENCH, TORQUE.2025120000065150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: B107.14, B107.14 TY1CLEST2, B107.14M, B107.14M TY1CLCST2, B107.300 , B10714, B10714M, B10714MTY1CLCST2, B10714TY1CLEST2, B107300, MILW26497, MIL-W-26497, MIL-W-26497 TY2CLBCY3STA, MILW26497TY2CLBCY3STA, 5699A19, 5120-01-267-3060, 01-267-3060, 5120012673060, 012673060
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 09 NOV 1987 | 01-267-3060 | 67439 ( SCREWDRIVER, TORQUE ) |

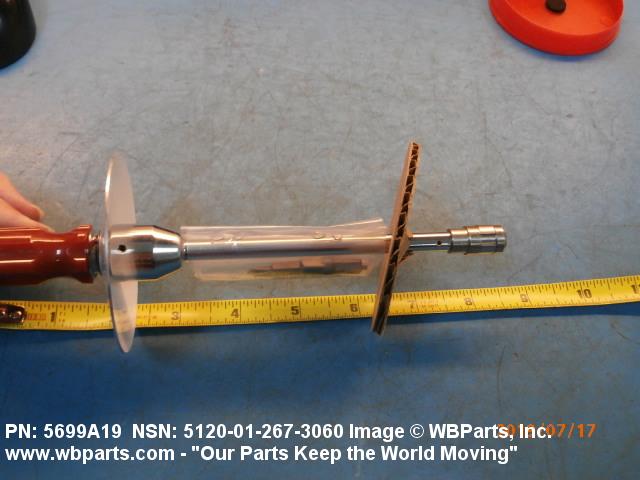

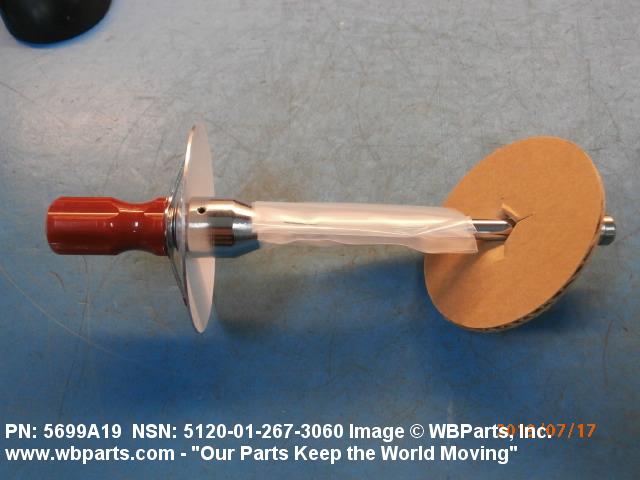

Drawings & Photos | NSN 5120-01-267-3060
Demand History | NSN 5120-01-267-3060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-267-3060 | 2024-08-242 | 1 | Taiwan |
| B10714 | 2024-03-74 | 1 | United States |
| B107300 | 2022-03-75 | 1 | US |
| B107300 | 2022-03-75 | 1 | US |
| 5699A19 | 2019-07-192 | 2 | United Kingdom |
| B10714M | 2014-03-63 | 2 | Taiwan |
| B10714M | 2011-07-185 | 7 | Pakistan |
Cross Reference | NSN 5120-01-267-3060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5699A19 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
| B107.14 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.14 TY1CLEST2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.14M | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.14M TY1CLCST2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.300 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| MIL-W-26497 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-W-26497 TY2CLBCY3STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-267-3060
Technical Data | NSN 5120-01-267-3060
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 861 EXPOSED DIAL AND DEFLECTING FRAME |

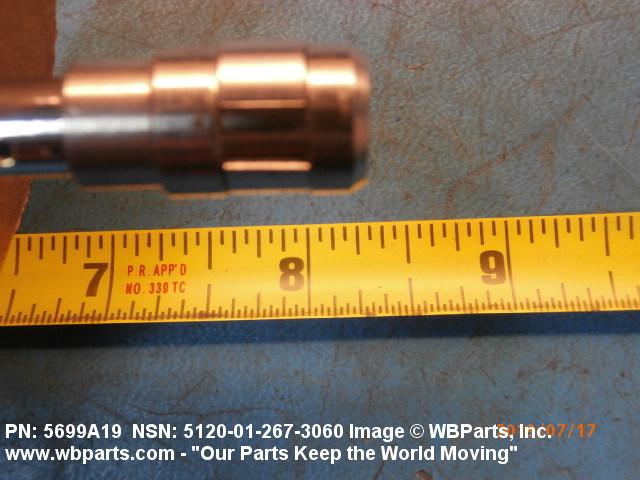

| OVERALL LENGTH | 8.000 INCHES NOMINAL |

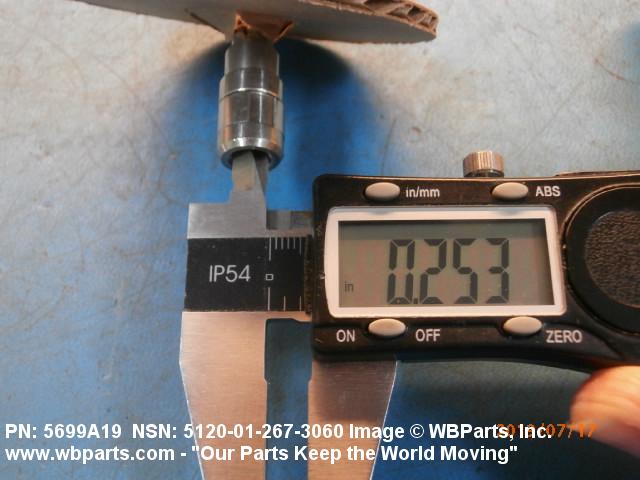

| DRIVE SURFACE SIZE | 0.250 INCHES NOMINAL HANDLE |
| DRIVE END SHAPE | HEXAGON SINGLE END INTERNAL |
| TORQUE CAPACITY | 0.0 INCH-OUNCES MINIMUM AND 24.0 INCH-OUNCES MAXIMUM |

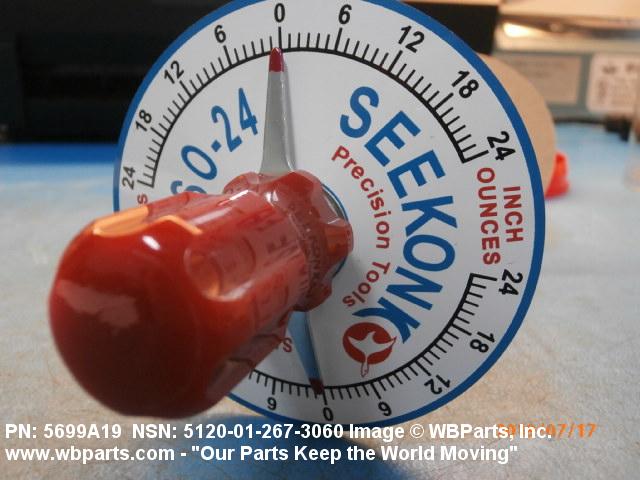

| TORQUE INDICATING MECHANISM | DIAL |
| TORQUE SCALE GRADUATION | 1.00 INCH-OUNCES |

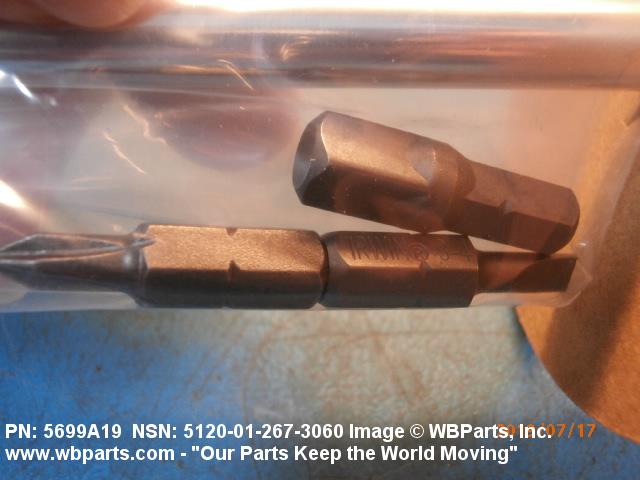

| FURNISHED ITEMS | NO. 2 PHILLIPS BIT, FLAT TIP BIT AND 1/4 IN. MALE SQUARE ADAPTER |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.14M PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND C CLASS AND 2 STYLE |
Restrictions/Controls & Freight Information | NSN 5120-01-267-3060
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-267-3060
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
