Product Details | SPANNER WRENCH

5120-00-033-0605 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: 802886, 5120-00-033-0605, 00-033-0605, 5120000330605, 000330605

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-033-0605

Drawings & Photos | NSN 5120-00-033-0605


Cross Reference | NSN 5120-00-033-0605

Part Number Cage Code Manufacturer
802886 0AHP5 CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-00-033-0605

Technical Data | NSN 5120-00-033-0605

Characteristic Specifications
MATERIAL STEEL OVERALL

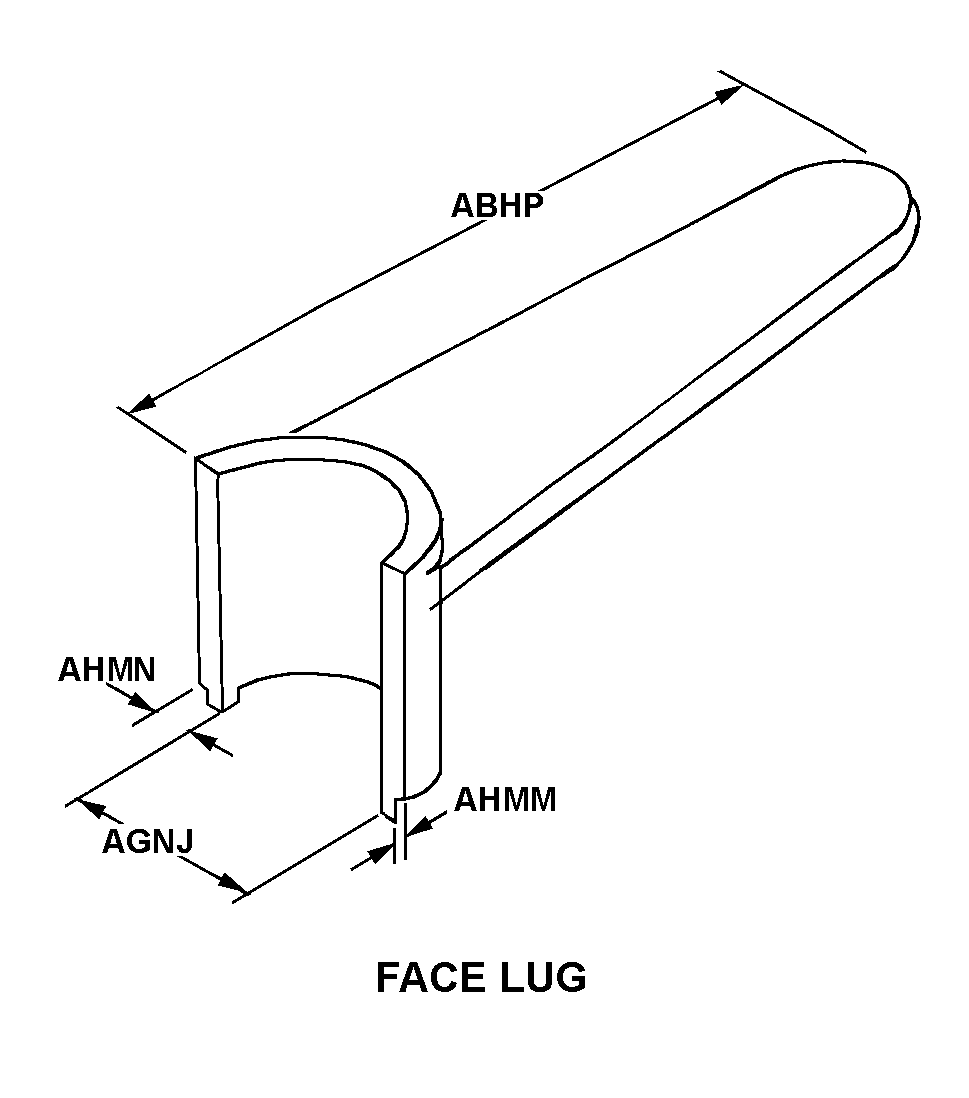

STYLE DESIGNATOR 678 FACE LUG
OVERALL LENGTH 4.688 INCHES NOMINAL
OPENING DIAMETER 0.906 INCHES NOMINAL
LUG WIDTH 0.188 INCHES NOMINAL
LUG THICKNESS 0.168 INCHES NOMINAL
MANUFACTURERS CODE 0AHP5
DESIGN CONTROL REFERENCE 802886

Restrictions/Controls & Freight Information | NSN 5120-00-033-0605

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating Q 70
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code Z unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
