NSN 4935-01-017-6993 11499166, 01-017-6993, 010176993
Product Details | BLANK PANEL
4935-01-017-6993 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.20253400020Hardware, Commercial59750032Electrical Hardware and Supplies
Part Alternates: 11499166, 4935-01-017-6993, 01-017-6993, 4935010176993, 010176993
Maintenance and Repair Shop Equipment | Guided Missile Maintenance, Repair, and Checkout Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 12 MAR 1976 | 01-017-6993 | 15195 ( PANEL, BLANK ) |
Drawings & Photos | NSN 4935-01-017-6993
Cross Reference | NSN 4935-01-017-6993
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11499166 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4935-01-017-6993
Technical Data | NSN 4935-01-017-6993
| Characteristic | Specifications |
|---|---|

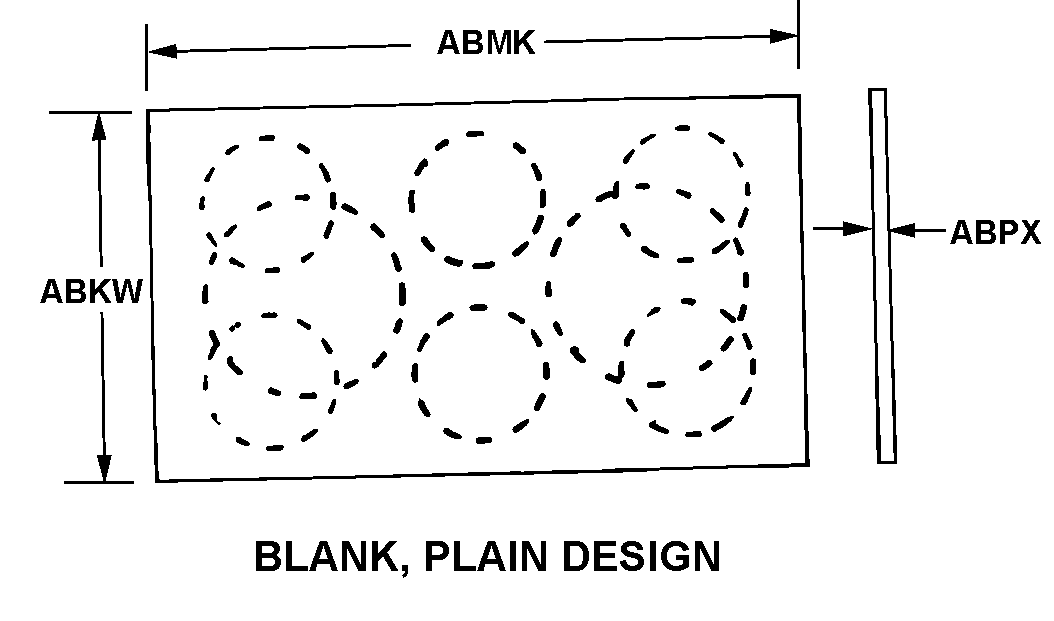

| STYLE DESIGNATOR | F1 BLANK, PLAIN DESIGN |
| OVERALL HEIGHT | 9.970 INCHES MINIMUM AND 10.030 INCHES MAXIMUM |
| OVERALL WIDTH | 15.970 INCHES MINIMUM AND 16.030 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11,T4 FED SPEC SINGLE MATERIAL RESPONSE |
| MOUNTING PROVISION | SCREW |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 11499166 |
Restrictions/Controls & Freight Information | NSN 4935-01-017-6993
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
