NSN 5975-00-894-0315 C225004002, C22-5004-002 , FNA1553A
Product Details | BLANK PANEL
5975-00-894-0315 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.20253400020Hardware, Commercial59750032Electrical Hardware and Supplies
Part Alternates: C225004002, C22-5004-002 , FNA1553A, T1003281, T100328-1 , 139004, 1390-04, 8243A, 824-3A, 5975-00-894-0315, 00-894-0315, 5975008940315, 008940315
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-894-0315 | 15195 ( PANEL, BLANK ) |

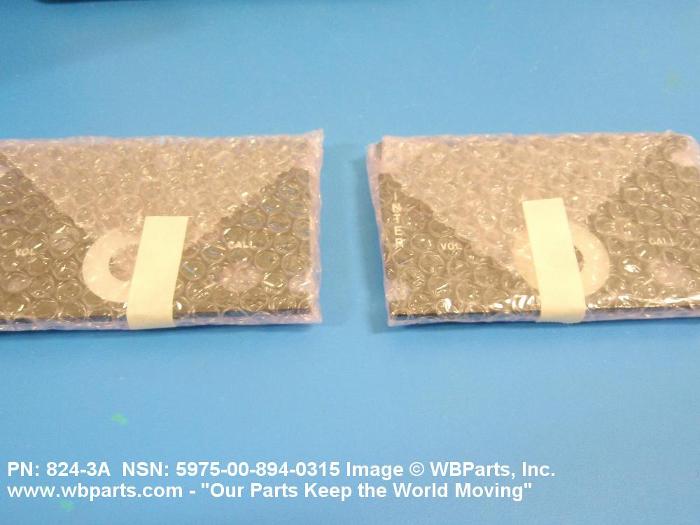

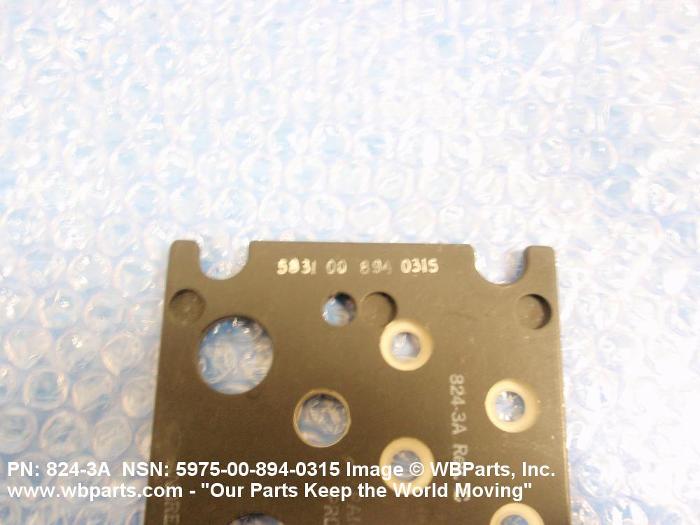

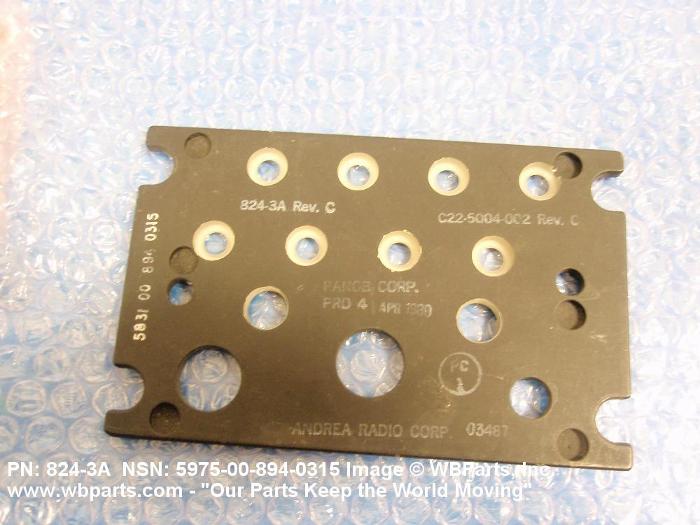

Drawings & Photos | NSN 5975-00-894-0315
Demand History | NSN 5975-00-894-0315
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-894-0315 | 2011-08-243 | 56 | DIBBS |
| 5975-00-894-0315 | 2010-07-210 | 47 | DIBBS |
| 5975-00-894-0315 | 2008-11-330 | 2 | United States |
Cross Reference | NSN 5975-00-894-0315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1390-04 | 13656 | MELCOR ELECTRONICS CORP |
| 824-3A | 03487 | ANDREA ELECTRONICS CORPORATION |
| C22-5004-002 | 03487 | ANDREA ELECTRONICS CORPORATION |
| C22-5004-002 | 3GET4 | ANDREA SYSTEMS LLC |
| C22-5004-002 | 96655 | PARAMOUNT PANELS, INC. DBA CALIFORNIA PLASTECK |
| FNA1553A | 33623 | FELSENTHAL ELECTRONICS CORP SUB OF ELECTRONIC HARDWARE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-894-0315
Related Products | NSN 5975-00-894-0315
Technical Data | NSN 5975-00-894-0315
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | F1 BLANK, PLAIN DESIGN |
| OVERALL HEIGHT | 3.687 INCHES NOMINAL |
| OVERALL WIDTH | 5.687 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.220 INCHES NOMINAL |
| MATERIAL | PLASTIC PHENOLIC |
| SURFACE TREATMENT | ENAMEL |
| MANUFACTURERS CODE | 03487 |
| DESIGN CONTROL REFERENCE | C22-5004-002 |
Restrictions/Controls & Freight Information | NSN 5975-00-894-0315
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-894-0315
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | CX | TG:AIRBORNE COMMUNICATIONS AND NAVIGATION EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
