NSN 4935-00-564-0564 151795, 00-564-0564, 005640564
Product Details | ELECTRICAL POWER CABLE ASSEMBLY
4935-00-564-0564 A definite continuous length of CABLE, POWER, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to other items. Excludes CABLE AND CONDUIT ASSEMBLY, ELECTRICAL and items having branches or forks. See also WIRING HARNESS.20511150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: 151795, 4935-00-564-0564, 00-564-0564, 4935005640564, 005640564
Maintenance and Repair Shop Equipment | Guided Missile Maintenance, Repair, and Checkout Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1963 | 00-564-0564 | 00485 ( CABLE ASSEMBLY, POWER, ELECTRICAL ) |
Drawings & Photos | NSN 4935-00-564-0564
Cross Reference | NSN 4935-00-564-0564
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 151795 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4935-00-564-0564
Technical Data | NSN 4935-00-564-0564
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 4 |

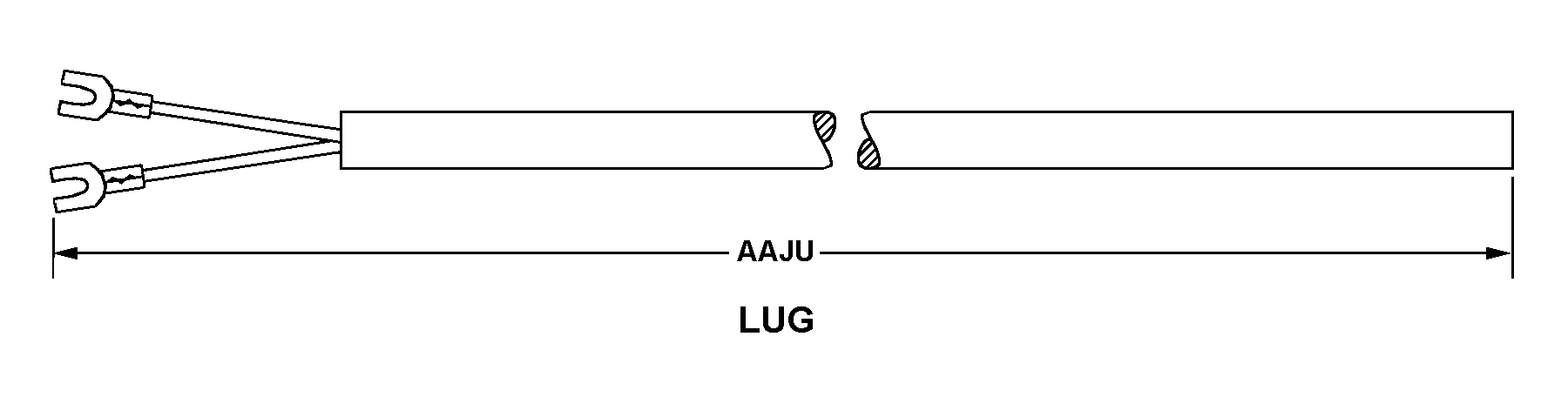

| STYLE DESIGNATOR | 1 LUG |
| OVERALL LENGTH | 144.000 INCHES |
| MANUFACTURERS CODE | 82577 |
| DESIGN CONTROL REFERENCE | 151795 |
Restrictions/Controls & Freight Information | NSN 4935-00-564-0564
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | Q | 70 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
