NSN 4930-00-242-2958 MILC1258, 00-242-2958, 002422958
Product Details | SELF-FEEDING OILER
4930-00-242-2958 An oil reservoir having a needle valve, wick or other restriction in the discharge passage which delivers lube oil by gravity or capillary action to one or more points of a machine. See also OILER, AIRLINE; INDICATOR, SIGHT, LIQUID; AND CUP, OIL, LUBRICATING.
Part Alternates: MILC1258, 4930-00-242-2958, 00-242-2958, 4930002422958, 002422958
Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1963 | 00-242-2958 | 03180 ( OILER, SELF-FEEDING ) |
Drawings & Photos | NSN 4930-00-242-2958
Cross Reference | NSN 4930-00-242-2958
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILC1258 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4930-00-242-2958
Technical Data | NSN 4930-00-242-2958
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OR STEEL OVERALL |

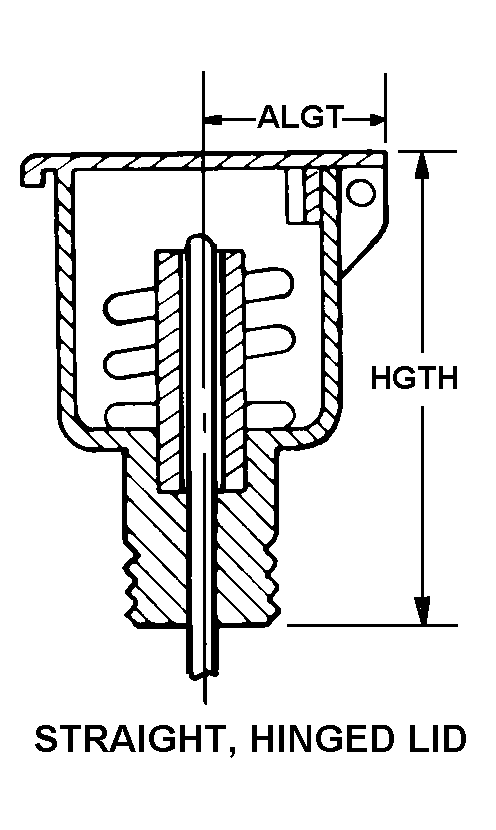

| STYLE DESIGNATOR | J1 STRAIGHT, HINGED LID |
| ASSEMBLY CLEARANCE RADIUS | 0.656 INCHES NOMINAL |
| HEIGHT | ANY ACCEPTABLE |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| OIL CAPACITY | 0.800 FLUID OUNCES |
| WIDTH ACROSS FLATS | ANY ACCEPTABLE |
| NONDEFINITIVE SPEC/STD DATA | D TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC1258 |
Restrictions/Controls & Freight Information | NSN 4930-00-242-2958
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 185320 | TOOLS:OILERS HAND IN BBLS/BXS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | F | Fuels and lubricants, including gases, fuels and lubricating supplies and equipment and gases other than noxious gases. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4930-00-242-2958
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
