NSN 4930-00-952-9127 605, 00-952-9127, 009529127
Product Details | SELF-FEEDING OILER
4930-00-952-9127 An oil reservoir having a needle valve, wick or other restriction in the discharge passage which delivers lube oil by gravity or capillary action to one or more points of a machine. See also OILER, AIRLINE; INDICATOR, SIGHT, LIQUID; AND CUP, OIL, LUBRICATING.
Part Alternates: 605, 4930-00-952-9127, 00-952-9127, 4930009529127, 009529127
Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1962 | 00-952-9127 | 03180 ( OILER, SELF-FEEDING ) |

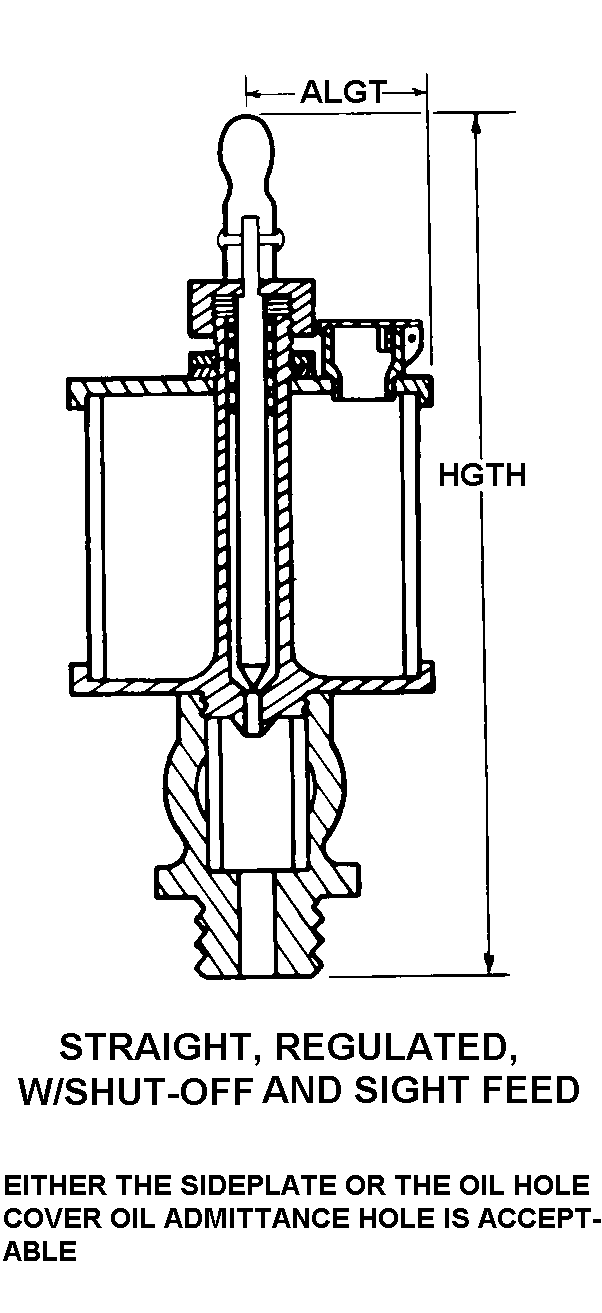

Drawings & Photos | NSN 4930-00-952-9127
Cross Reference | NSN 4930-00-952-9127
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 605 | 20969 | ESSEX BRASS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4930-00-952-9127
Technical Data | NSN 4930-00-952-9127
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS OVERALL |
| STYLE DESIGNATOR | J7 STRAIGHT, REGULATED, W/SHUT-OFF AND SIGHT FEED |
| ASSEMBLY CLEARANCE RADIUS | 1.625 INCHES NOMINAL |
| HEIGHT | 6.875 INCHES NOMINAL |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| OIL CAPACITY | 10.000 FLUID OUNCES |
Restrictions/Controls & Freight Information | NSN 4930-00-952-9127
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
