NSN 4910-00-458-2671 0V5GH80W, 00-458-2671, 004582671
Product Details | ABRASIVE WHEEL
4910-00-458-2671 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: 0V5GH80W, 4910-00-458-2671, 00-458-2671, 4910004582671, 004582671
Maintenance and Repair Shop Equipment | Motor Vehicle Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 30 APR 1969 | 00-458-2671 | 02613 ( WHEEL, ABRASIVE ) |
Drawings & Photos | NSN 4910-00-458-2671
Cross Reference | NSN 4910-00-458-2671
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0V5GH80W | 35472 | K.O. LEE COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4910-00-458-2671
Related Products | NSN 4910-00-458-2671
Technical Data | NSN 4910-00-458-2671
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINA |
| SCREEN GRIT SIZE DESIGNATOR | 80 |
| ABRASIVE STANDARD MICRON SIZE DESIGNATOR | 6 |
| USAGE DESIGN | METAL WORKING |

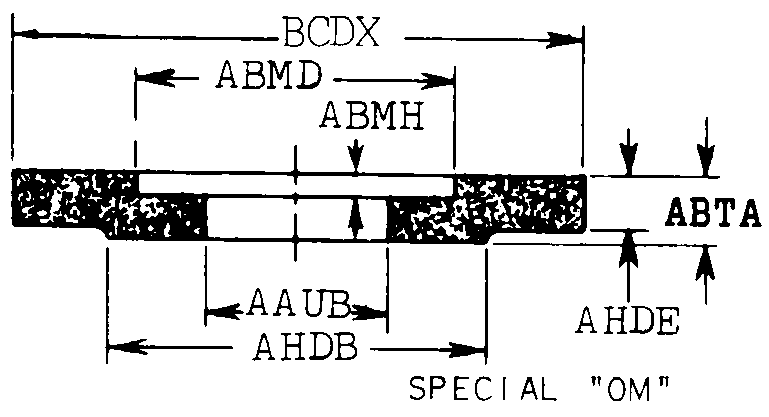

| WHEEL STYLE | 46 SPECIAL OM |
| HOLE DIAMETER | 0.625 INCHES MINIMUM AND 0.628 INCHES MAXIMUM |
| RECESS DIAMETER | 2.500 INCHES NOMINAL |
| RECESS DEPTH | 0.375 INCHES NOMINAL |
| OVERALL THICKNESS | 0.750 INCHES NOMINAL |
| OUTSIDE FLAT DIAMETER | 2.000 INCHES NOMINAL |
| EDGE WIDTH | 0.500 INCHES NOMINAL |
| WHEEL DIAMETER | 5.000 INCHES NOMINAL |
| MOUNTING METHOD | ARBOR HOLE |
| MOUNTING OPENING SHAPE STYLE | 1 ROUND |
| DIAMETER | 0.625 INCHES MINIMUM AND 0.628 INCHES MAXIMUM |
| BINDER MATERIAL | VITREOUS SUBSTANCE |
| ABRASIVE BOND GRADE DESIGNATION | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4910-00-458-2671
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 001020 | ABRASIVES:CRUDE OR LUMP |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4910-00-458-2671
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
