NSN 4820-01-560-1163 2177525, 8032177525C8XX80, 803-2177525-C8XX-80
Product Details | VALVE DISK
4820-01-560-1163 An item of various shapes (usually circular, conical, cylindrical, or rectangular) used to prevent or regulate the flow of liquids or gases through the valve. May include a retainer, screw, holder, and the like.20616500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29150064Engine Fuel System Components, Aircraft and Missile Prime Movers48100015Valves, Powered48200018Valves, Nonpowered65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: 2177525, 8032177525C8XX80, 803-2177525-C8XX-80, 4820-01-560-1163, 01-560-1163, 4820015601163, 015601163
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 16 JAN 2008 | 01-560-1163 | 35224 ( DISK, VALVE ) |
Drawings & Photos | NSN 4820-01-560-1163
Demand History | NSN 4820-01-560-1163
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-560-1163 | 2020-03-12 | 9 | DIBBS |
| 4820-01-560-1163 | 2019-09-10 | 2 | DIBBS |
| 4820-01-560-1163 | 2019-08-15 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-560-1163
Technical Data | NSN 4820-01-560-1163
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OR STEEL |

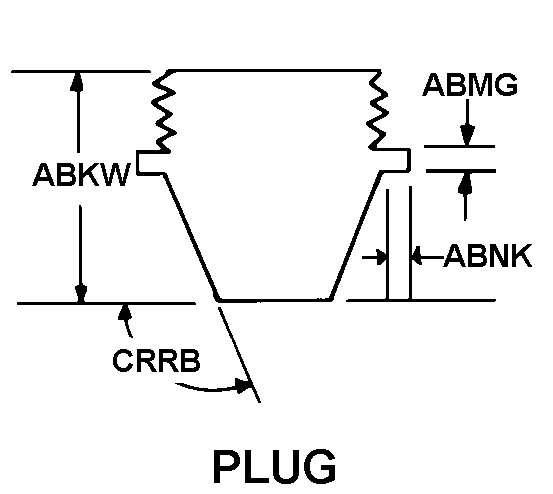

| STYLE DESIGNATOR | 12 PLUG |
| MEDIA FOR WHICH DESIGNED | WATER OR OIL OR GAS |
| PRESSURE RATING | 900.0 POUNDS PER SQUARE INCH MAXIMUM |
| TEMP RATING | 775.0 DEG FAHRENHEIT MAXIMUM |
| END ITEM IDENTIFICATION | 4820-01-060-3444L1; 2.0 INCH THROTTLE VALVE |
Restrictions/Controls & Freight Information | NSN 4820-01-560-1163
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-560-1163
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
