NSN 4820-01-200-1055 100816, 1008-16, 1008-16 PIECE 2
Product Details | VALVE DISK
4820-01-200-1055 An item of various shapes (usually circular, conical, cylindrical, or rectangular) used to prevent or regulate the flow of liquids or gases through the valve. May include a retainer, screw, holder, and the like.20616500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29150064Engine Fuel System Components, Aircraft and Missile Prime Movers48100015Valves, Powered48200018Valves, Nonpowered65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: 100816, 1008-16, 1008-16 PIECE 2, 100816PIECE2, 103204120100000, 103-204-120-100-000, 12251, 12-25-1, 12-25-1 PIECE 2, 12251PIECE2, 20412, 204-12, 4820-01-200-1055, 01-200-1055, 4820012001055, 012001055
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 30 JAN 1985 | 01-200-1055 | 35224 ( DISK, VALVE ) |

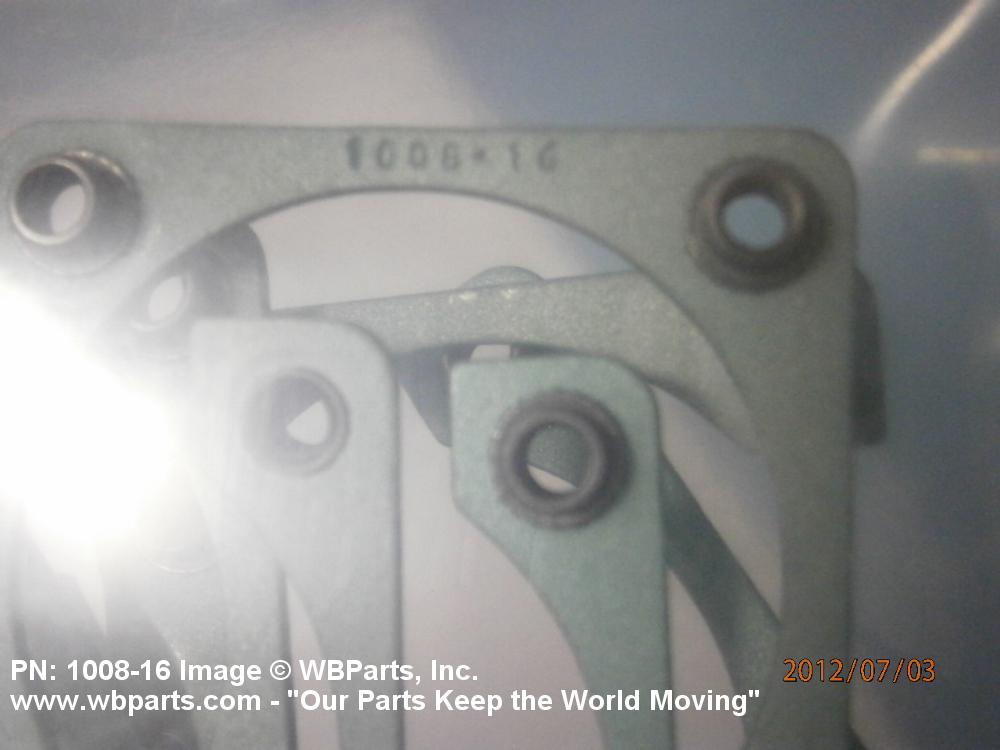

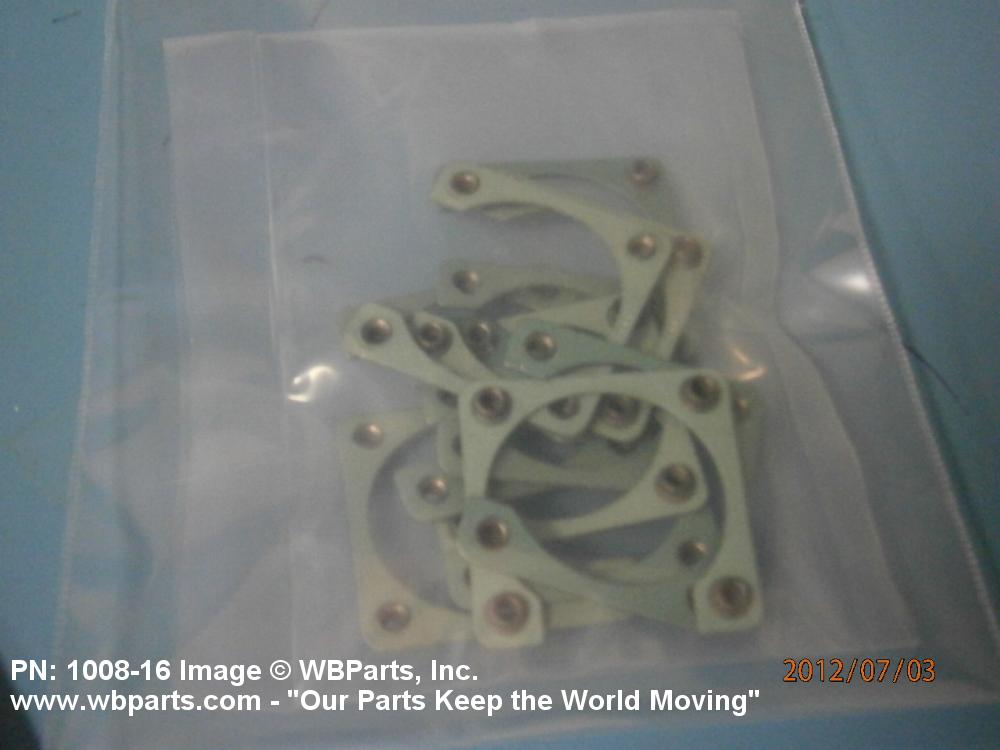

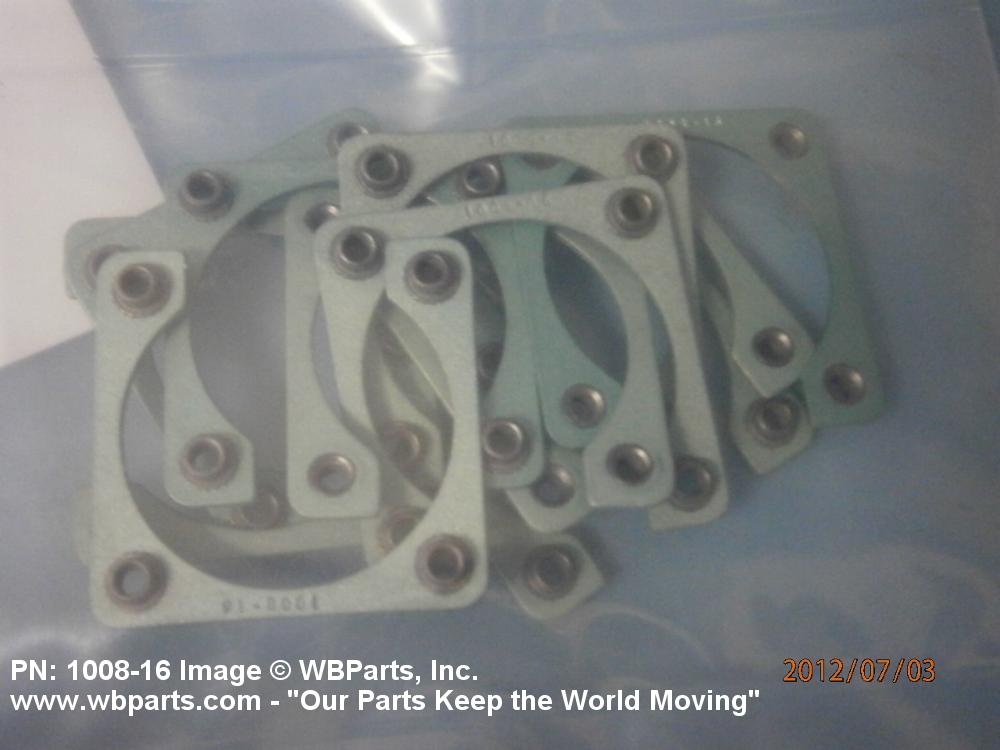

Drawings & Photos | NSN 4820-01-200-1055
Demand History | NSN 4820-01-200-1055
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12251 | 2024-02-53 | 10 | United States |
Cross Reference | NSN 4820-01-200-1055
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1008-16 | 04613 | PENTAIR VALVES & CONTROLS US LP DIV PENTAIR FLOW CONTROL |
| 1008-16 PIECE 2 | 04613 | PENTAIR VALVES & CONTROLS US LP DIV PENTAIR FLOW CONTROL |
| 103-204-120-100-000 | 04613 | PENTAIR VALVES & CONTROLS US LP DIV PENTAIR FLOW CONTROL |
| 12-25-1 | 04613 | PENTAIR VALVES & CONTROLS US LP DIV PENTAIR FLOW CONTROL |
| 12-25-1 PIECE 2 | 04613 | PENTAIR VALVES & CONTROLS US LP DIV PENTAIR FLOW CONTROL |
| 204-12 | 04613 | PENTAIR VALVES & CONTROLS US LP DIV PENTAIR FLOW CONTROL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-200-1055
Technical Data | NSN 4820-01-200-1055
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM AND BRONZE |
| STYLE DESIGNATOR | G48 BUTTER FLY |
| OUTSIDE DIAMETER | 12.094 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 5.000 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| PRESSURE RATING | 150.0 POUNDS PER SQUARE INCH NOMINAL |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 4820-01-200-1055
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-200-1055
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
