NSN 4820-01-335-7203 F07-0085B-02TS DWG 33311-32, F070085B02TSDWG3331132, 01-335-7203
Product Details | STOP-CHECK VALVE
4820-01-335-7203 A valve with a bolt or stem that may be mechanically actuated to two different positions by rotary or linear motion. In the first position, the valve disk is located and locked against the seat permitting no fluid flow through the valve. In the second position, one side of the valve disk is located against the seat permitting movement of the disk in a manner that will allow a flow of fluid in one direction through the valve. The valve disk may be spring loaded. It may be inline or cartridge (manifold) design. See also VALVE (1), LIFT-CHECK and VALVE (1), STOP-LIFT-CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: F07-0085B-02TS DWG 33311-32, F070085B02TSDWG3331132, 4820-01-335-7203, 01-335-7203, 4820013357203, 013357203
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 13 MAR 1991 | 01-335-7203 | 05486 ( VALVE, STOP-CHECK ) |
Drawings & Photos | NSN 4820-01-335-7203
Demand History | NSN 4820-01-335-7203
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F07-0085B-02TS DWG 33311-32 | 2024-09-262 | 6 | DIBBS |
| F07-0085B-02TS DWG 33311-32 | 2023-01-31 | 6 | DIBBS |
| F07-0085B-02TS DWG 33311-32 | 2022-05-128 | 6 | DIBBS |
| F07-0085B-02TS DWG 33311-32 | 2022-02-55 | 6 | DIBBS |
| F07-0085B-02TS DWG 33311-32 | 2022-02-44 | 6 | DIBBS |
| 4820-01-335-7203 | 2017-05-143 | 6 | DIBBS |
| 4820-01-335-7203 | 2017-04-108 | 6 | DIBBS |
| 4820-01-335-7203 | 2015-10-275 | 6 | DIBBS |
| 4820-01-335-7203 | 2015-09-263 | 6 | DIBBS |
Cross Reference | NSN 4820-01-335-7203
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F07-0085B-02TS DWG 33311-32 | 57574 | VELAN VALVE CORPORATION DIV VELAN VALVE CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-335-7203
Technical Data | NSN 4820-01-335-7203
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |

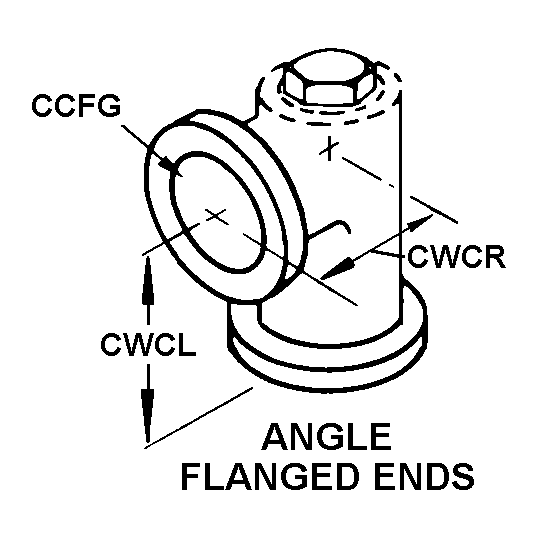

| STYLE DESIGNATOR | A1A ANGLE FLANGED ENDS |
