NSN 4820-00-147-6517 550400, 55-0400, 6529349
Product Details | STOP-CHECK VALVE
4820-00-147-6517 A valve with a bolt or stem that may be mechanically actuated to two different positions by rotary or linear motion. In the first position, the valve disk is located and locked against the seat permitting no fluid flow through the valve. In the second position, one side of the valve disk is located against the seat permitting movement of the disk in a manner that will allow a flow of fluid in one direction through the valve. The valve disk may be spring loaded. It may be inline or cartridge (manifold) design. See also VALVE (1), LIFT-CHECK and VALVE (1), STOP-LIFT-CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 550400, 55-0400, 6529349, 6-52934-9, 4820-00-147-6517, 00-147-6517, 4820001476517, 001476517
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 OCT 1971 | 00-147-6517 | 05486 ( VALVE, STOP-CHECK ) |

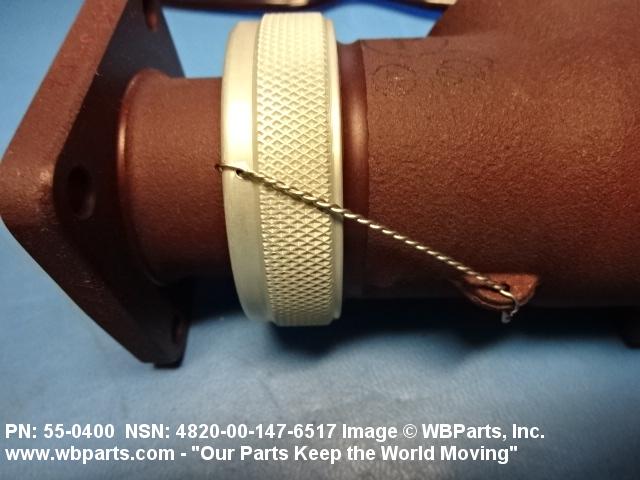

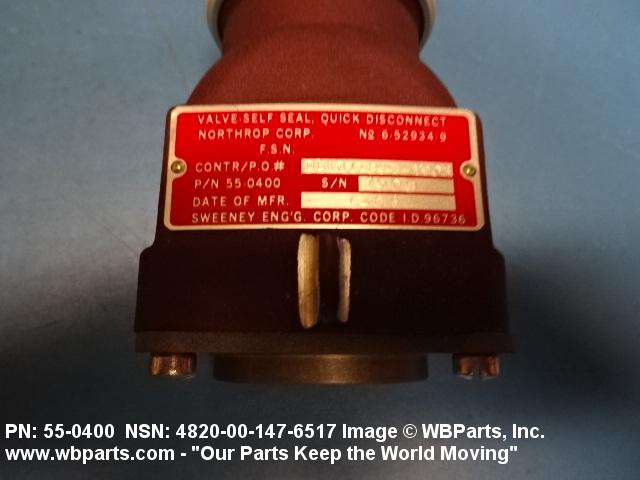

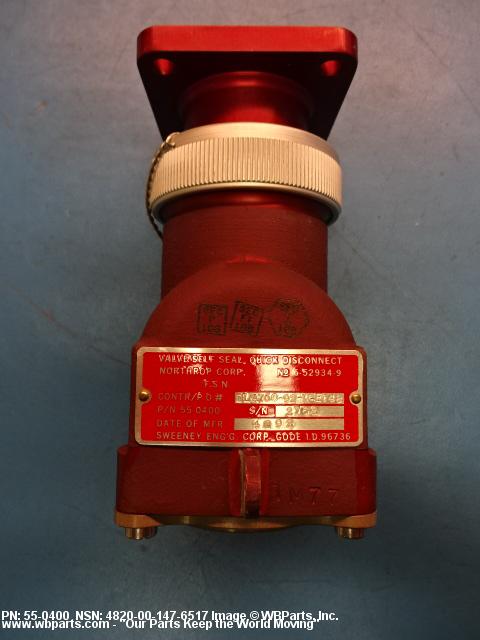

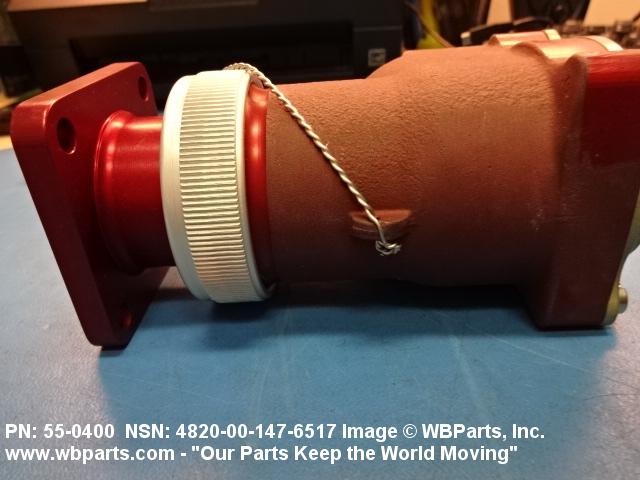

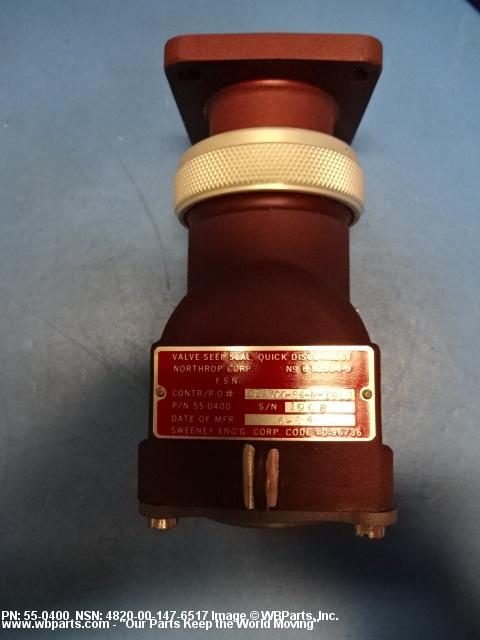

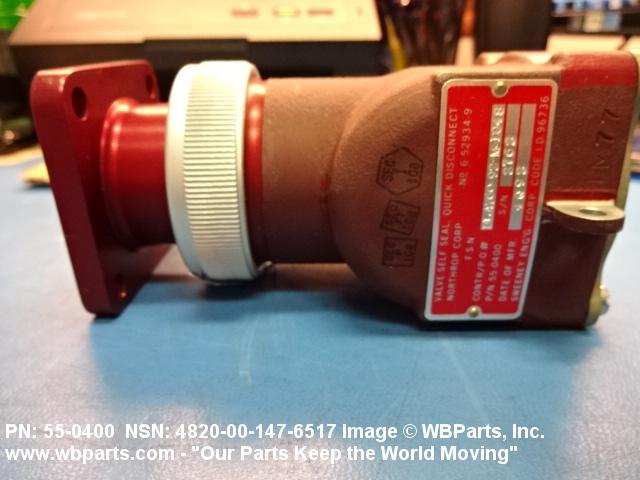

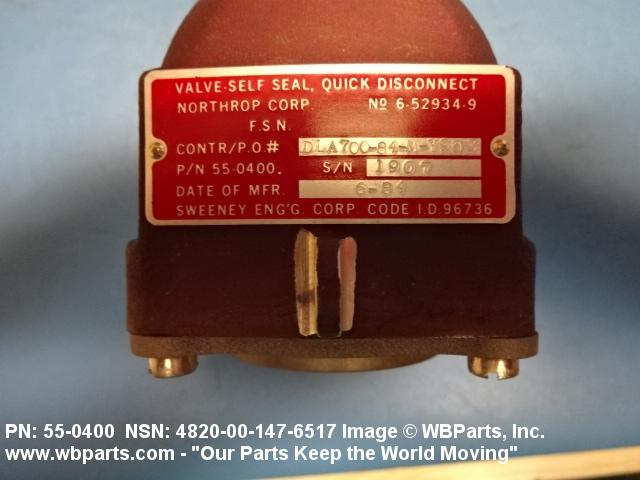

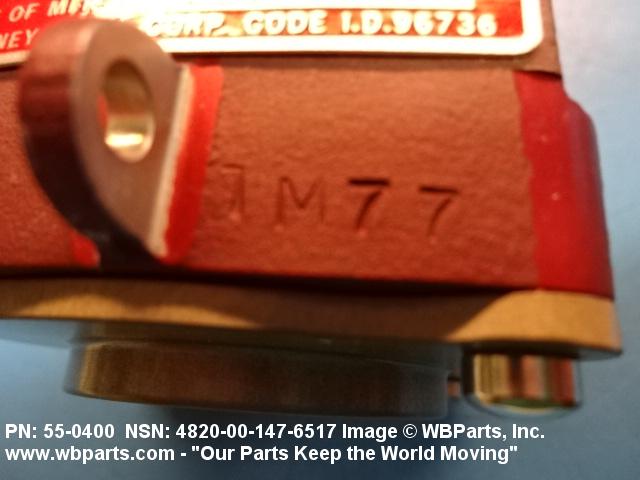

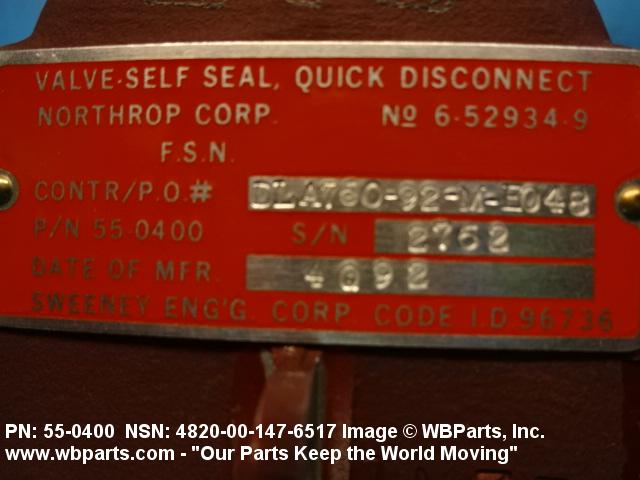

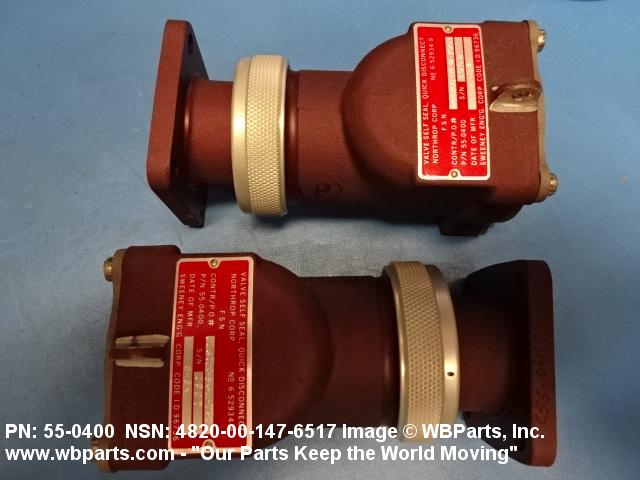

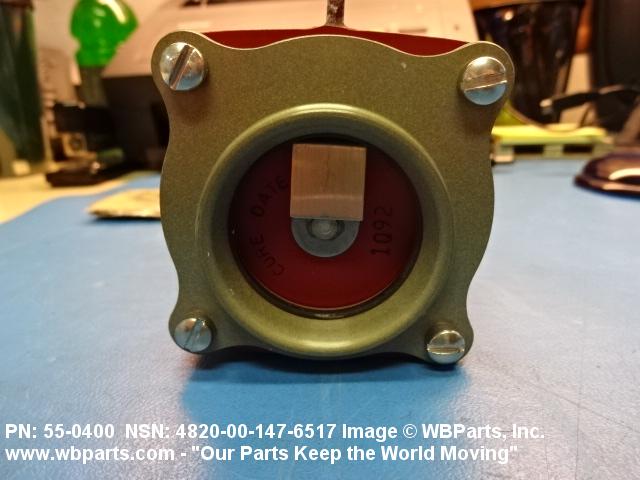

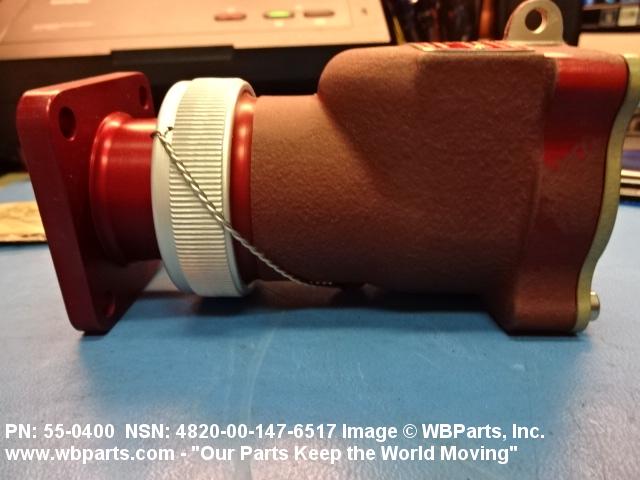

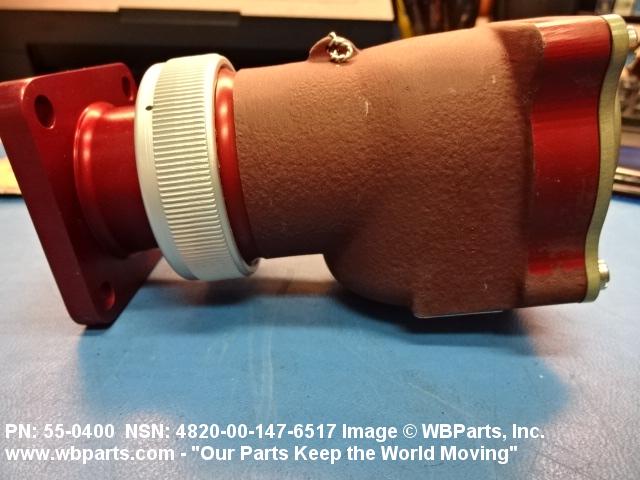

Drawings & Photos | NSN 4820-00-147-6517
Demand History | NSN 4820-00-147-6517
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 55-0400 | 2024-05-143 | 3 | DIBBS |
| 6-52934-9 | 2024-05-143 | 3 | DIBBS |
| 55-0400 | 2024-01-04 | 2 | DIBBS |
| 6-52934-9 | 2024-01-04 | 2 | DIBBS |
| 55-0400 | 2022-08-222 | 3 | DIBBS |
| 6-52934-9 | 2022-08-222 | 3 | DIBBS |
| 55-0400 | 2021-12-347 | 1 | DIBBS |
| 6-52934-9 | 2021-12-347 | 1 | DIBBS |
| 55-0400 | 2021-11-334 | 1 | DIBBS |
| 6-52934-9 | 2021-11-334 | 1 | DIBBS |
| 55-0400 | 2021-03-78 | 1 | DIBBS |
| 6-52934-9 | 2021-03-78 | 1 | DIBBS |
| 55-0400 | 2021-03-67 | 1 | DIBBS |
| 6-52934-9 | 2021-03-67 | 1 | DIBBS |
| 4820-00-147-6517 | 2018-04-116 | 19 | DIBBS |
| 4820-00-147-6517 | 2018-01-11 | 11 | DIBBS |
| 4820-00-147-6517 | 2017-11-317 | 2 | DIBBS |
| 4820-00-147-6517 | 2017-08-241 | 3 | United States |
| 4820-00-147-6517 | 2017-06-156 | 4 | DIBBS |
| 4820-00-147-6517 | 2017-05-143 | 4 | DIBBS |
| 4820-00-147-6517 | 2017-05-139 | 15 | DIBBS |
| 4820-00-147-6517 | 2017-05-128 | 15 | DIBBS |
| 4820-00-147-6517 | 2014-07-183 | 10 | DIBBS |
| 4820-00-147-6517 | 2014-06-180 | 10 | DIBBS |
| 4820-00-147-6517 | 2014-05-125 | 10 | DIBBS |
| 4820-00-147-6517 | 2014-04-114 | 10 | DIBBS |
| 4820-00-147-6517 | 2014-03-72 | 7 | DIBBS |
| 4820-00-147-6517 | 2014-02-57 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-147-6517
Related Products | NSN 4820-00-147-6517
Technical Data | NSN 4820-00-147-6517
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | A2 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE 1ST END FLANGE 2ND END |
| CONNECTION STYLE | B20A SOCKET 1ST END |
| FLANGE SHAPE | RECTANGULAR WITH HOLES 2ND END |
| NOMINAL THICKNESS | 0.281 INCHES 2ND END |
| NOMINAL LENGTH | 2.375 INCHES 2ND END |
| NOMINAL WIDTH | 2.375 INCHES 2ND END |
| BOLT HOLE QUANTITY | 4 2ND END |
| BOLT HOLE NOMINAL DIAMETER | 0.250 INCHES 2ND END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.812 INCHES 2ND END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 1.812 INCHES 2ND END |
| FLANGE FACE DESIGN | PLAIN 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.500 INCHES 1ST END |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| RENEWABLE SEAT RING TYPE | BONDED |
| BONNET TYPE | PACKING RETAINING |
| DISK LOADING METHOD | SPRING |
Restrictions/Controls & Freight Information | NSN 4820-00-147-6517
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-147-6517
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
