NSN 4820-01-229-4260 S48243000849, S4824-3000849, S4824-3000849 PIECE 7
Product Details | FLAT VALVE DIAPHRAGM
4820-01-229-4260 An item in the form of one or more thin flexible sheets normally designed to form a tight seal between chambers of a valve, and to transmit motion to a valve disk either directly or through a mechanical linkage. The surface of the item(s) may not be formed or molded to have a beaded or rolled edge, ribs, or any other raised surfaces. The item may contain bolt holes and/or a center hole. Excludes DIAPHRAGM, VALVE, SPECIAL SHAPED and GASKET.20316600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: S48243000849, S4824-3000849, S4824-3000849 PIECE 7, S48243000849PIECE7, PLRN492, PLR-N-492, PLR-N-492 PIECE 7, PLRN492PIECE7, 246340, 246-340, 4820-01-229-4260, 01-229-4260, 4820012294260, 012294260
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 APR 1986 | 01-229-4260 | 60396 ( DIAPHRAGM, VALVE, FLAT ) |

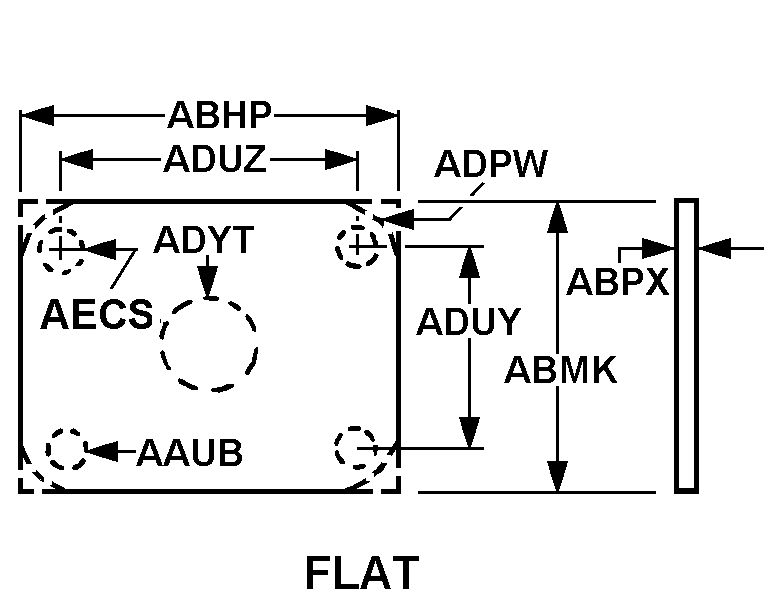

Drawings & Photos | NSN 4820-01-229-4260
Demand History | NSN 4820-01-229-4260
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 246-340 | 2020-04-100 | 63 | DIBBS |
| PLR-N-492 PIECE 7 | 2020-04-100 | 63 | DIBBS |
Cross Reference | NSN 4820-01-229-4260
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 246-340 | 92578 | JOHNSON CONTROLS INC CONTROL PRODUCTS DIV |
| PLR-N-492 | 92578 | JOHNSON CONTROLS INC CONTROL PRODUCTS DIV |
| PLR-N-492 PIECE 7 | 92578 | JOHNSON CONTROLS INC CONTROL PRODUCTS DIV |
| S4824-3000849 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| S4824-3000849 PIECE 7 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
