Product Details | ANGLE VALVE
4820-01-181-6617 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 807112, 807-112, 8071700, 807-1700, 807-1700 PART 807-112, 8071700PART807112, 4820-01-181-6617, 01-181-6617, 4820011816617, 011816617
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 13 JUN 1984 | 01-181-6617 | 05483 ( VALVE, ANGLE ) |
Drawings & Photos | NSN 4820-01-181-6617
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-181-6617
Technical Data | NSN 4820-01-181-6617
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY STEEL CORROSION RESISTING STEM |

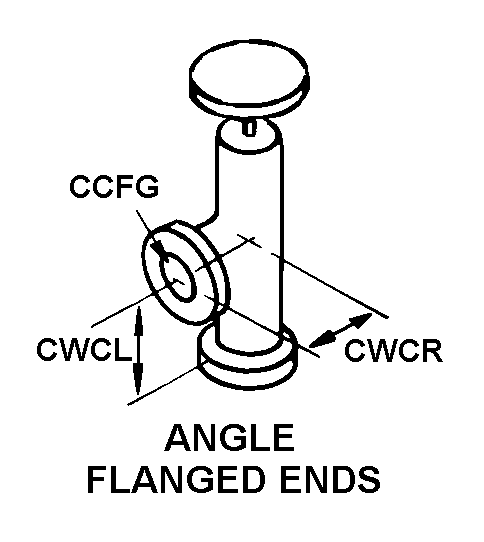

| STYLE DESIGNATOR | A7A ANGLE FLANGED ENDS |
| FIRST CONNECTION FACE TO CENTERLINE DISTANCE | 4.500 INCHES |
| SECOND CONNECTION FACE TO CENTERLINE DISTANCE | 2.500 INCHES |
| VALVE SIZE | 0.750 INCHES |
| FLOW CONTROL DEVICE | DISK |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE 1ST END |
| FLANGE SHAPE | ROUND 1ST END |
| NOMINAL OUTSIDE DIAMETER | 5.125 INCHES 1ST END |
| NOMINAL THICKNESS | 1.000 INCHES 1ST END |
| FLANGE FACE DESIGN | RAISED STRAIGHT 1ST END |
| RAISED FACE NOMINAL HEIGHT | 0.250 INCHES 1ST END |
| RAISED FACE NOMINAL DIAMETER | 1.688 INCHES 1ST END |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | BOLTED |
