NSN 4820-01-145-5506 8032177934, 803-2177934, 8032177934B121
Product Details | ANGLE VALVE
4820-01-145-5506 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 8032177934, 803-2177934, 8032177934B121, 803-2177934-B121, 8032177934B121AF, 803-2177934-B121AF, 4820-01-145-5506, 01-145-5506, 4820011455506, 011455506
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 14 JAN 1983 | 01-145-5506 | 05483 ( VALVE, ANGLE ) |
Drawings & Photos | NSN 4820-01-145-5506
Demand History | NSN 4820-01-145-5506
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-145-5506 | 2022-04-95 | 14 | DIBBS |
| 4820-01-145-5506 | 2022-01-12 | 14 | DIBBS |
| 4820-01-145-5506 | 2021-10-297 | 14 | DIBBS |
| 4820-01-145-5506 | 2021-04-115 | 14 | DIBBS |
| 4820-01-145-5506 | 2021-01-14 | 2 | DIBBS |
| 4820-01-145-5506 | 2020-07-203 | 3 | DIBBS |
| 8032177934 | 2013-01-22 | 1 | United States |
| 8032177934 | 2013-01-21 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-145-5506
Technical Data | NSN 4820-01-145-5506
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY FLOW CONTROL DEVICE PLASTIC POLYTETRAFLUOROETHYLENE PACKING NICKEL ALLOY SEAT |

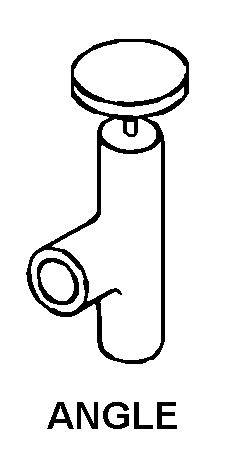

| STYLE DESIGNATOR | A7 ANGLE |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 700.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS |

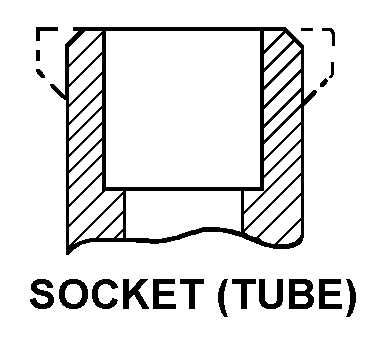

| CONNECTION STYLE | G20A SOCKET ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | THREADED |
| FURNISHED ITEMS AND QUANTITY | 1 HANDWHEEL |
Restrictions/Controls & Freight Information | NSN 4820-01-145-5506
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-145-5506
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
