NSN 4820-01-145-5505 11514H2192, 115-14-H-2192, 14H2192
Product Details | FLOAT VALVE
4820-01-145-5505 A valve designed to utilize a valve float which controls the opening or closing of the valve as the valve float is lowered or raised by the level of the fluid being controlled. Excludes VALVE, FLOAT, WATER CLOSET TANK.
Part Alternates: 11514H2192, 115-14-H-2192, 14H2192, 4820-01-145-5505, 01-145-5505, 4820011455505, 011455505
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 14 JAN 1983 | 01-145-5505 | 05481 ( VALVE, FLOAT ) |
Drawings & Photos | NSN 4820-01-145-5505
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-145-5505
Technical Data | NSN 4820-01-145-5505
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |

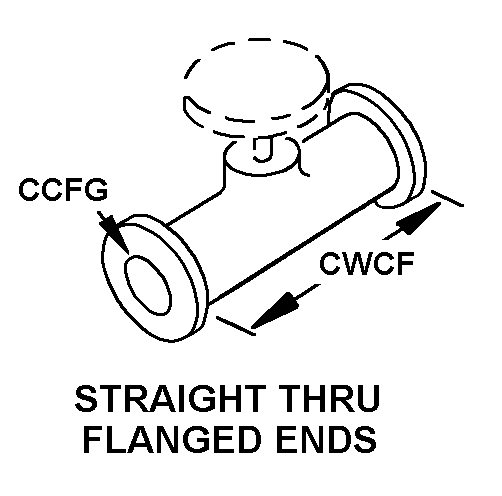

| STYLE DESIGNATOR | A1A STRAIGHT THRU FLANGED ENDS |
| FACE TO FACE DISTANCE | 8.750 INCHES |
| VALVE SIZE | 1.500 INCHES |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE ALL ENDS |
| FLANGE SHAPE | ROUND WITH HOLES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER | 5.000 INCHES ALL ENDS |
| NOMINAL THICKNESS | 0.062 INCHES ALL ENDS |
| BOLT HOLE QUANTITY | 6 ALL ENDS |
| BOLT HOLE NOMINAL DIAMETER | 0.562 INCHES ALL ENDS |
| BOLT CIRCLE NOMINAL DIAMETER | 3.938 INCHES ALL ENDS |
| FLANGE FACE DESIGN | PLAIN ALL ENDS |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | BOLTED |
Restrictions/Controls & Freight Information | NSN 4820-01-145-5505
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-145-5505
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
