NSN 4820-01-113-4541 MMP91725, MMP917251, MMP91725-1
Product Details | ANGLE VALVE
4820-01-113-4541 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: MMP91725, MMP917251, MMP91725-1, A15525, A-15525, 4820-01-113-4541, 01-113-4541, 4820011134541, 011134541
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 27 MAY 1981 | 01-113-4541 | 05483 ( VALVE, ANGLE ) |

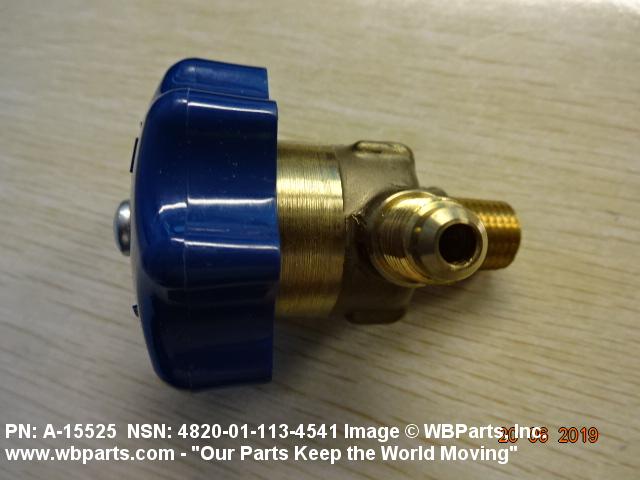

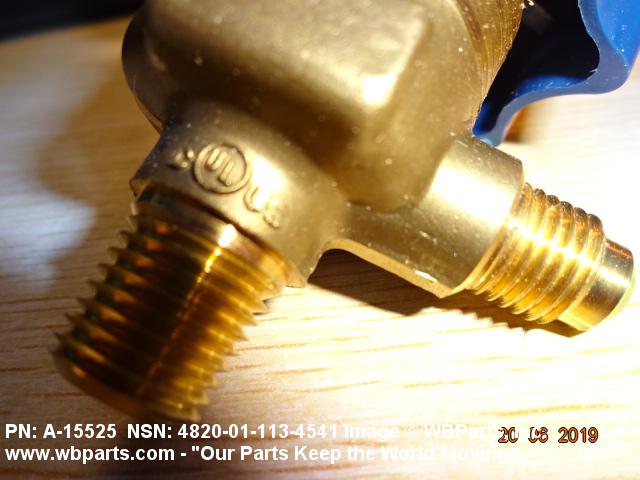

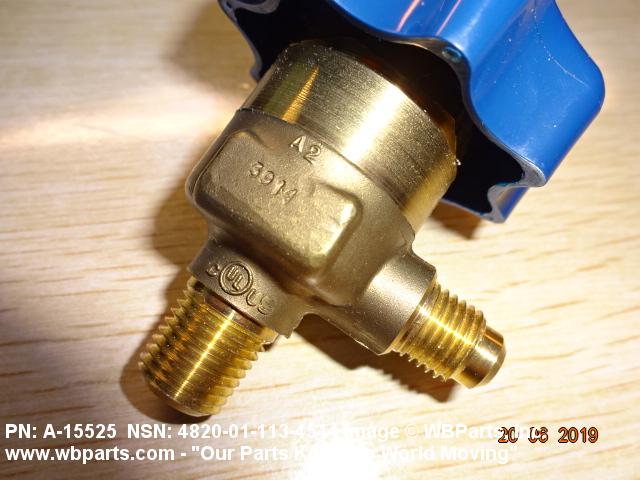

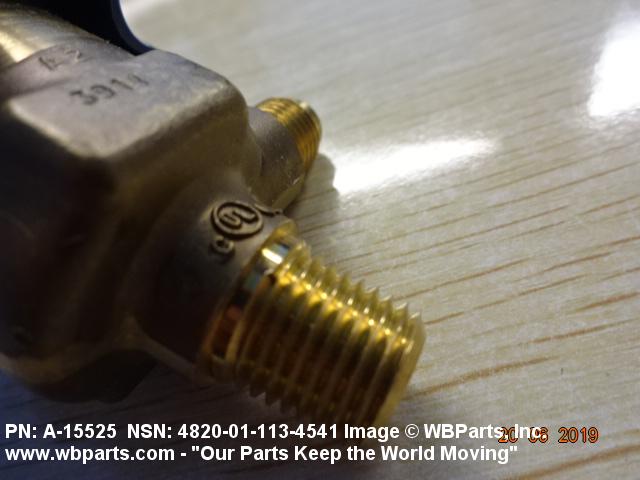

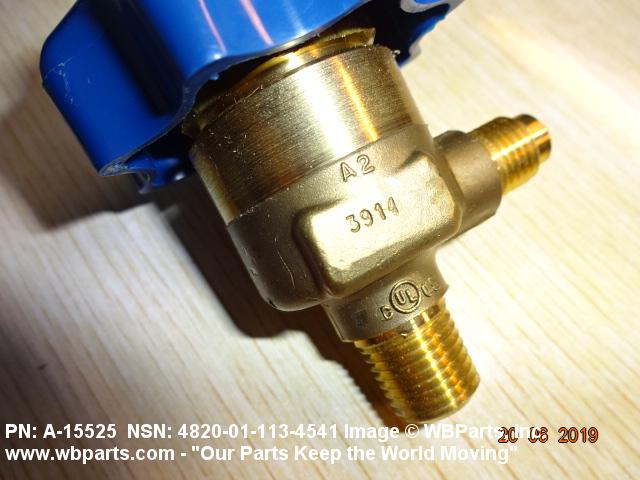

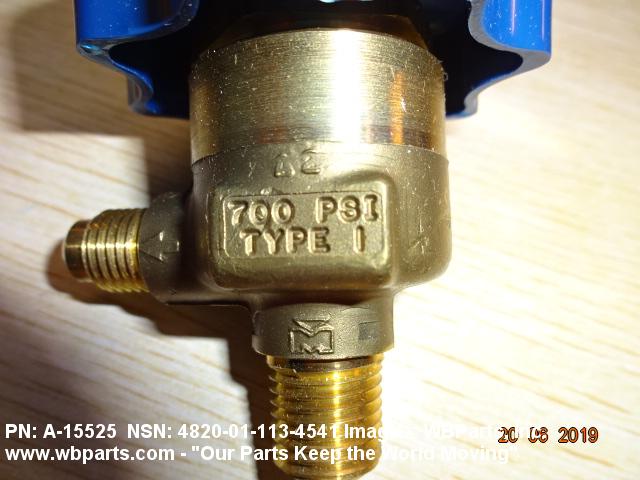

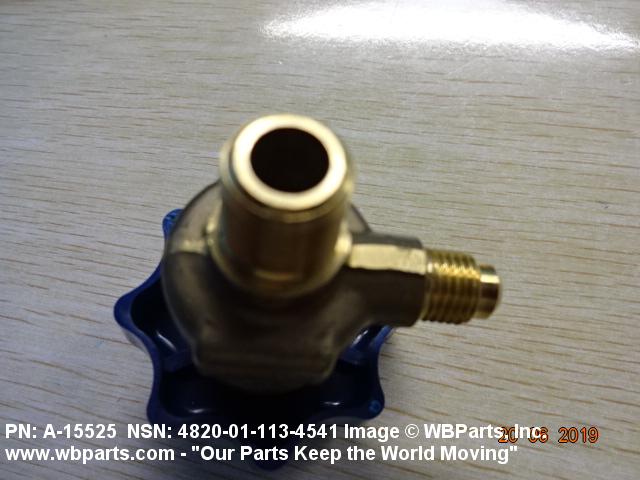

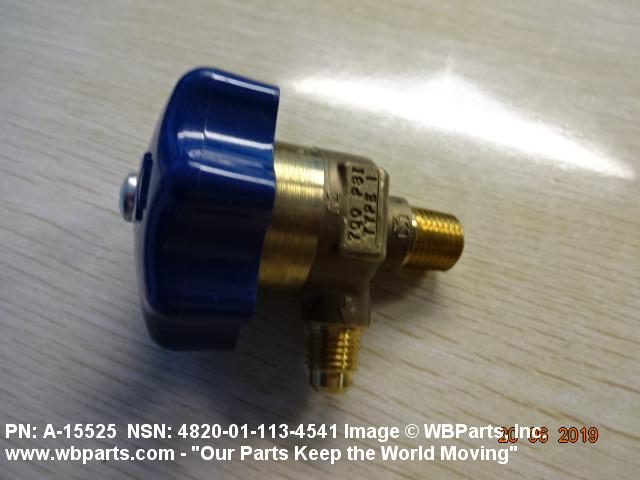

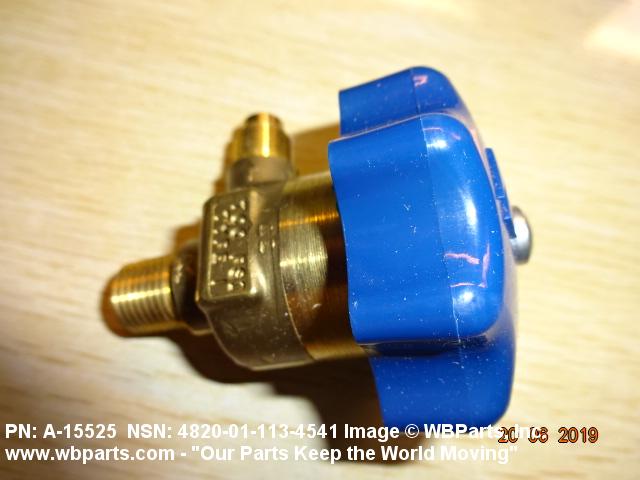

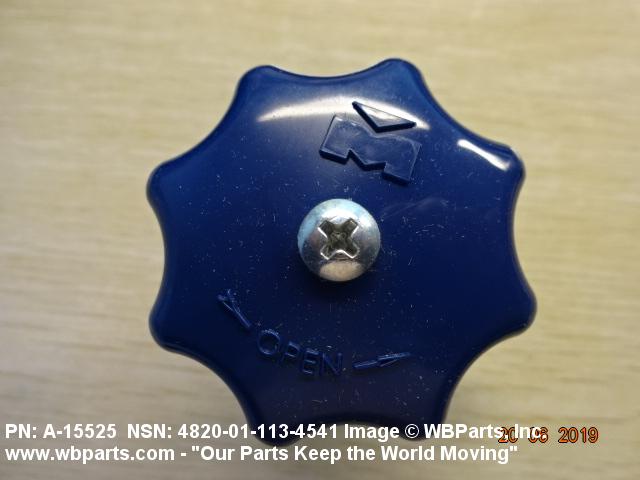

Drawings & Photos | NSN 4820-01-113-4541
Demand History | NSN 4820-01-113-4541
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A15525 | 2019-08-231 | 1 | Canada |
| 4820-01-113-4541 | 2019-06-176 | 1 | US |
| A15525 | 2019-06-157 | 1 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-113-4541
Technical Data | NSN 4820-01-113-4541
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE PLASTIC SEAT STEEL CORROSION RESISTING STEM |
| STYLE DESIGNATOR | A7 ANGLE |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| MAXIMUM OPERATING PRESSURE | 500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 200.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | G42 FLARED 1ST END G46B PLAIN 2ND END |
| SEAT ANGLE | 45.0 DEGREES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END NPT 2ND END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END RIGHT-HAND 2ND END |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | THREADED |
| SPECIAL FEATURES | SUITABLE FOR REFRIGERANT AND OTHER HAZARDOUS OR EXPENSIVE INDUSTRIAL FLUIDS NON-CORROSIVE TO BRASS AND STAINLESS STEEL |
Restrictions/Controls & Freight Information | NSN 4820-01-113-4541
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
