Product Details | FLAT VALVE DIAPHRAGM

4820-01-051-3457 An item in the form of one or more thin flexible sheets normally designed to form a tight seal between chambers of a valve, and to transmit motion to a valve disk either directly or through a mechanical linkage. The surface of the item(s) may not be formed or molded to have a beaded or rolled edge, ribs, or any other raised surfaces. The item may contain bolt holes and/or a center hole. Excludes DIAPHRAGM, VALVE, SPECIAL SHAPED and GASKET.20316600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment48100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: NIP 272, NIP272, 522856, 5228-56, 4820-01-051-3457, 01-051-3457, 4820010513457, 010513457

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 27 NOV 1977 01-051-3457

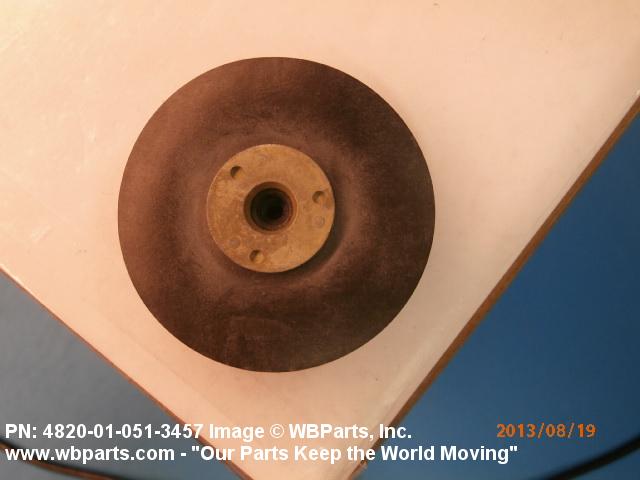

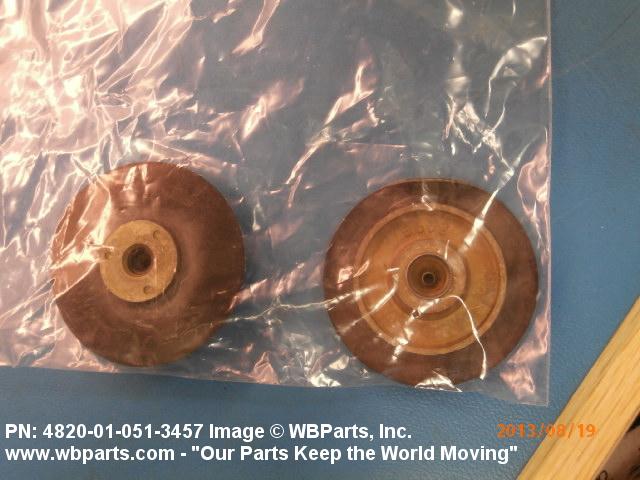

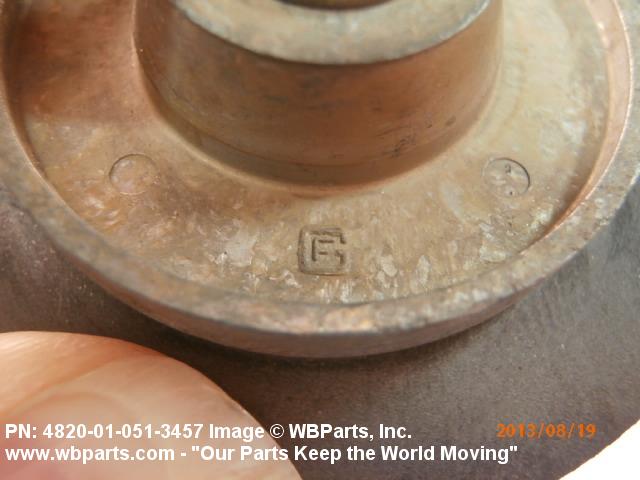

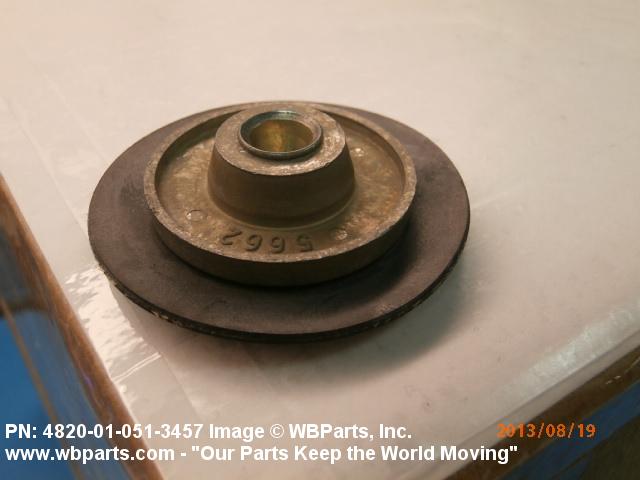

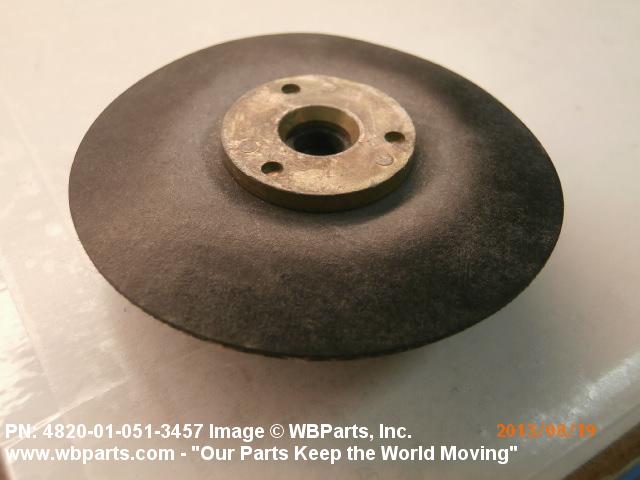

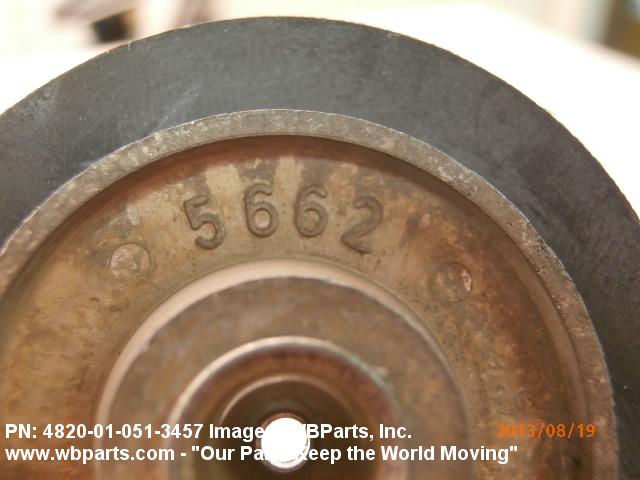

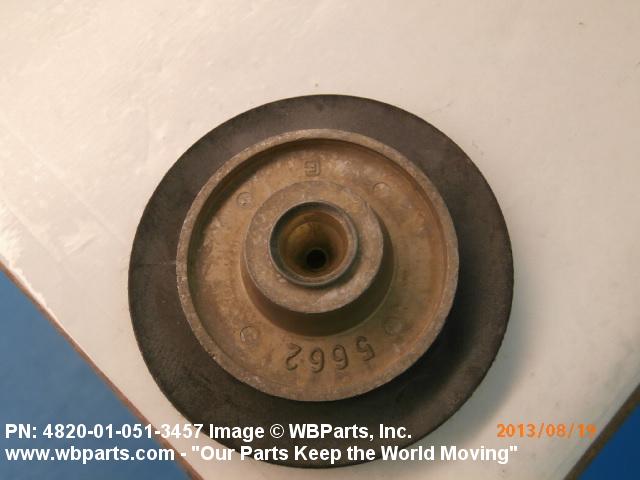

Drawings & Photos | NSN 4820-01-051-3457


Demand History | NSN 4820-01-051-3457

Part Number Request Date QTY Origin
5228-56 2020-01-02 60 DIBBS
4820-01-051-3457 2016-03-88 47 DIBBS
4820-01-051-3457 2015-03-69 2 US
4820-01-051-3457 2014-12-349 2 US
4820-01-051-3457 2013-08-225 2 United States

Cross Reference | NSN 4820-01-051-3457

Part Number Cage Code Manufacturer
5228-56 43990 NORGREN C A CO
NIP 272 43990 NORGREN C A CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-01-051-3457

Technical Data | NSN 4820-01-051-3457

Characteristic Specifications
MATERIAL RUBBER
STYLE DESIGNATOR G49 FLAT

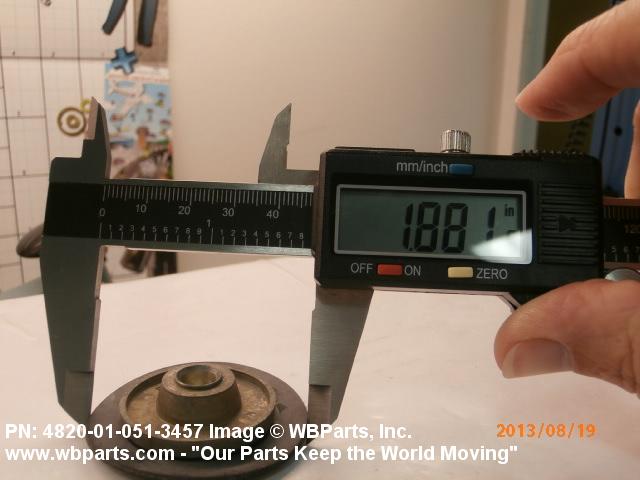

OUTSIDE DIAMETER 1.872 INCHES NOMINAL

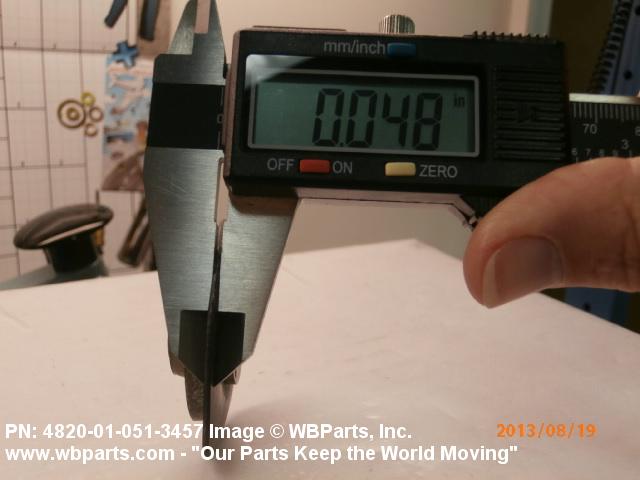

MATERIAL THICKNESS 0.050 INCHES NOMINAL
MEDIA FOR WHICH DESIGNED ANY ACCEPTABLE
PRESSURE RATING NOT RATED
TEMP RATING NOT RATED

Restrictions/Controls & Freight Information | NSN 4820-01-051-3457

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 156600 PLASTIC/RUBBER ARTICLE VIZ:
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 594 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4820-01-051-3457

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
