Product Details | SAFETY RELIEF VALVE
4820-01-032-5698 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: P87344, P87-344, 4820-01-032-5698, 01-032-5698, 4820010325698, 010325698
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 16 DEC 1976 | 01-032-5698 | 05488 ( VALVE, SAFETY RELIEF ) |
Drawings & Photos | NSN 4820-01-032-5698
Demand History | NSN 4820-01-032-5698
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P87-344 | 2019-08-213 | 14 | DIBBS |
| 4820-01-032-5698 | 2018-07-201 | 6 | DIBBS |
| 4820-01-032-5698 | 2018-07-190 | 6 | DIBBS |
| 4820-01-032-5698 | 2018-06-169 | 6 | DIBBS |
| 4820-01-032-5698 | 2018-06-158 | 6 | DIBBS |
Cross Reference | NSN 4820-01-032-5698
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P87-344 | 91816 | CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-032-5698
Related Products | NSN 4820-01-032-5698
Technical Data | NSN 4820-01-032-5698
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304L OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66,AISI 304L/SAE 30304L FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE |

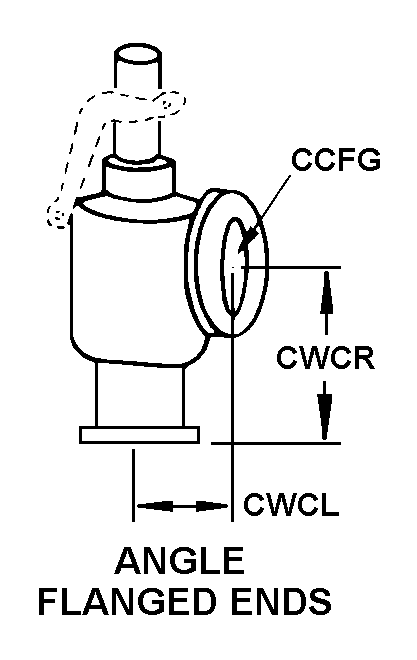

| STYLE DESIGNATOR | C1A ANGLE FLANGED ENDS |
