Product Details | SAFETY RELIEF VALVE
4820-01-032-5699 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: D559A4D10, D559A-4D-10, 584516, 11437984, 4820-01-032-5699, 01-032-5699, 4820010325699, 010325699
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 16 DEC 1976 | 01-032-5699 | 05488 ( VALVE, SAFETY RELIEF ) |
Drawings & Photos | NSN 4820-01-032-5699
Demand History | NSN 4820-01-032-5699
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| D559A-4D-10 | 2024-06-176 | 16 | DIBBS |
| D559A-4D-10 | 2024-06-165 | 16 | DIBBS |
| D559A-4D-10 | 2023-06-163 | 7 | DIBBS |
| D559A-4D-10 | 2021-11-305 | 4 | DIBBS |
| D559A-4D-10 | 2021-07-207 | 5 | DIBBS |
| D559A-4D-10 | 2021-06-161 | 2 | DIBBS |
| D559A-4D-10 | 2020-04-98 | 1 | DIBBS |
| 4820-01-032-5699 | 2016-04-117 | 5 | DIBBS |
| 4820-01-032-5699 | 2012-09-272 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-032-5699
Related Products | NSN 4820-01-032-5699
Technical Data | NSN 4820-01-032-5699
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4,ALLOY 2024,T351 FED SPEC SINGLE MATERIAL RESPONSE BODY |

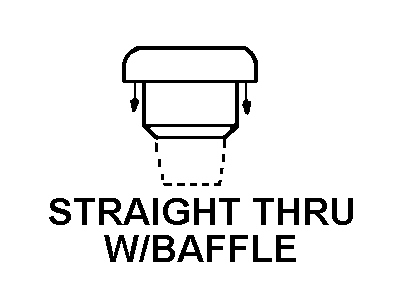

| STYLE DESIGNATOR | C5 STRAIGHT THRU W/BAFFLE |
| VALVE SIZE | 0.250 INCHES |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE ALCOHOL, ETHYL 2ND RESPONSE AMMONIA, GASEOUS 3RD RESPONSE FUEL/OIL, HYDROCARBON 4TH RESPONSE HELIUM 5TH RESPONSE |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 280.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE DISCHARGE FLOW RATE | 20.0 CUBIC FEET PER MINUTE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
| CONNECTION STYLE | G46A PLAIN 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END |
| THREAD CLASS | 3A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| DISK LOADING METHOD | SPRING |
| OPENING PRESSURE SETTING | 10.0 POUNDS PER SQUARE INCH |
| FURNISHED ITEMS AND QUANTITY | 1 DEFLECTOR CAP |
| MINIMUM OPERATING TEMP | -40.0 DEG FAHRENHEIT |
