NSN 4820-00-994-8785 HAV10, HAV-10, 73655A6
Product Details | TEMPERATURE REGULATING VALVE
4820-00-994-8785 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: HAV10, HAV-10, 73655A6, 73655A7, 76660A1, 4820-00-994-8785, 00-994-8785, 4820009948785, 009948785
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-994-8785 | 05492 ( VALVE, REGULATING, TEMPERATURE ) |
Drawings & Photos | NSN 4820-00-994-8785
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-994-8785
Technical Data | NSN 4820-00-994-8785
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE | DISK |

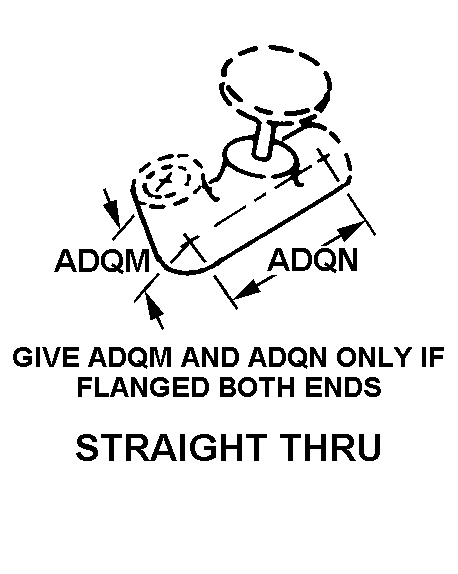

| BODY STYLE | A18 STRAIGHT THRU |
| MOUNTING FACILITY | EXTERNAL THREAD |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| TEMP RATING | 300.0 DEG FAHRENHEIT MINIMUM AND 810.0 DEG FAHRENHEIT MAXIMUM |
| SPECIAL FEATURES | O/A DIM 6.62 IN.L,4.00 IN.W,4.65 IN.H; BIMETAL SPRING TYPE; USAGE DEICING OF COWLING |
| III UNPACKAGED UNIT WEIGHT | 3.500 POUNDS |
Restrictions/Controls & Freight Information | NSN 4820-00-994-8785
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-994-8785
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | YQ | SX:"ENGINE ACCESSORIES, AIRCRAFT" |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
