NSN 4820-00-995-0739 MS28893D8, MILV8813, MIL-V-8813
Product Details | SAFETY RELIEF VALVE
4820-00-995-0739 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: MS28893D8, MILV8813, MIL-V-8813, 170314, 1703-14, 4820-00-995-0739, 00-995-0739, 4820009950739, 009950739
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-995-0739 | 05488 ( VALVE, SAFETY RELIEF ) |

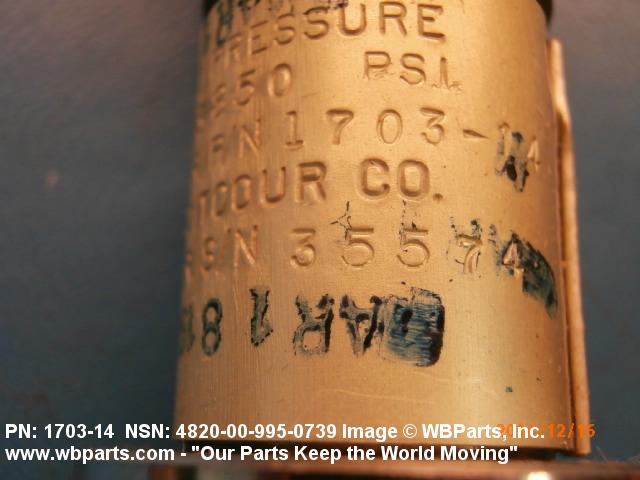

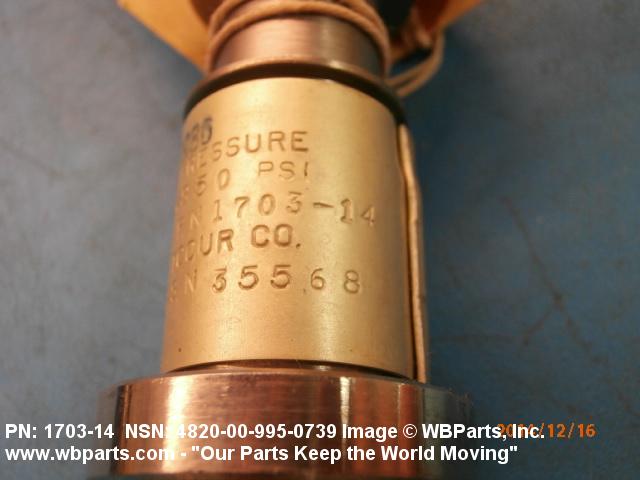

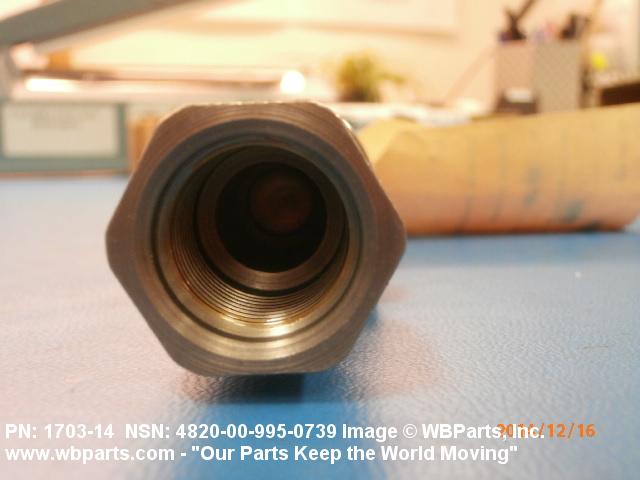

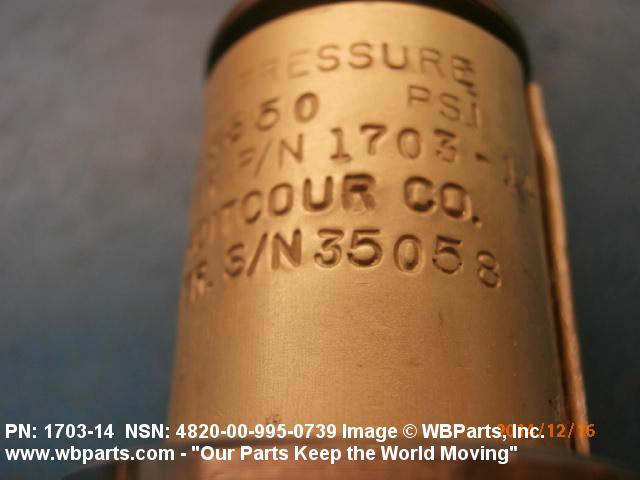

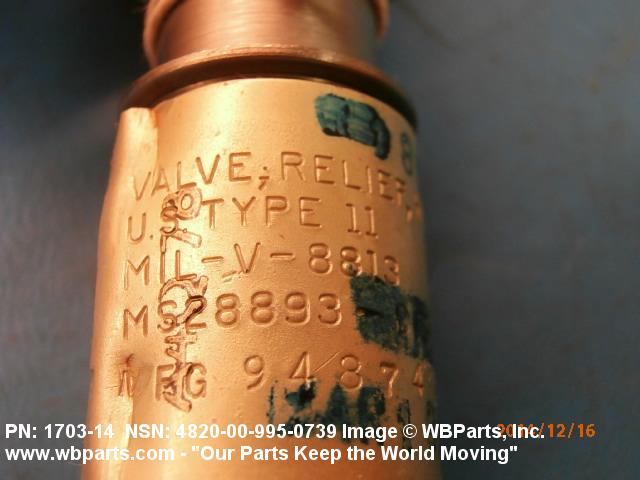

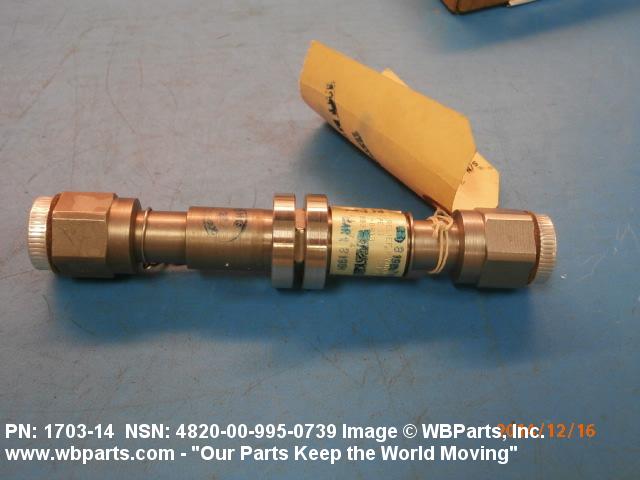

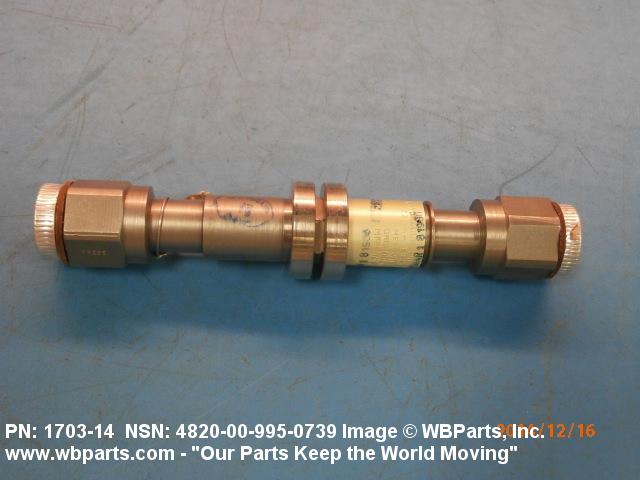

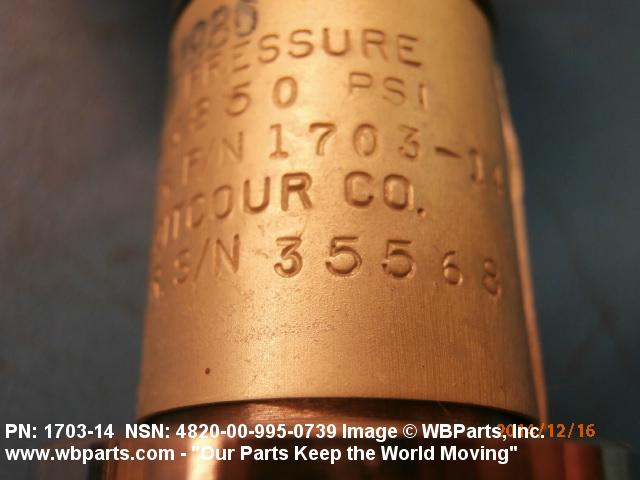

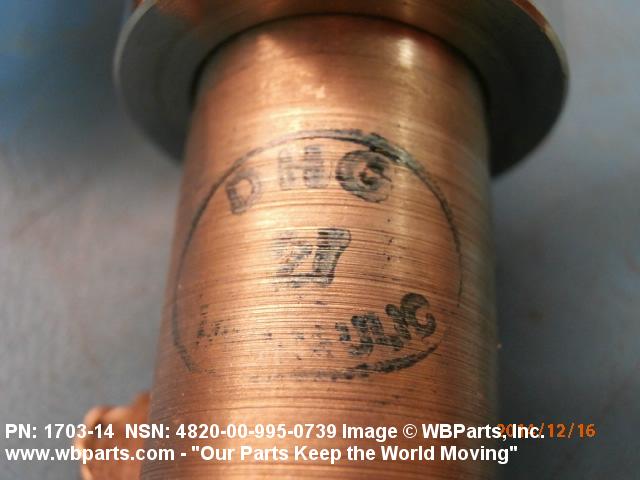

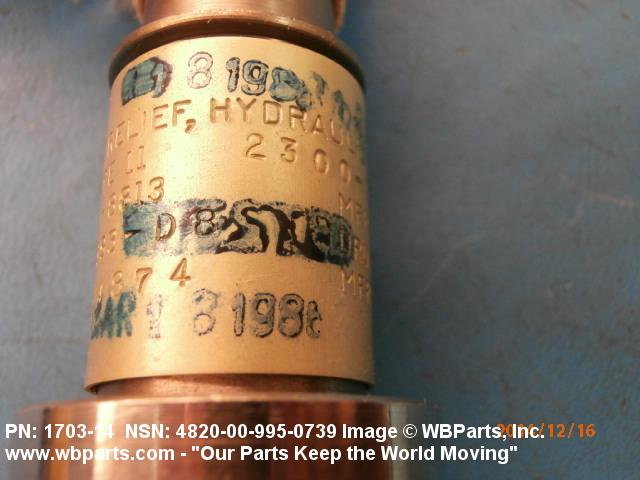

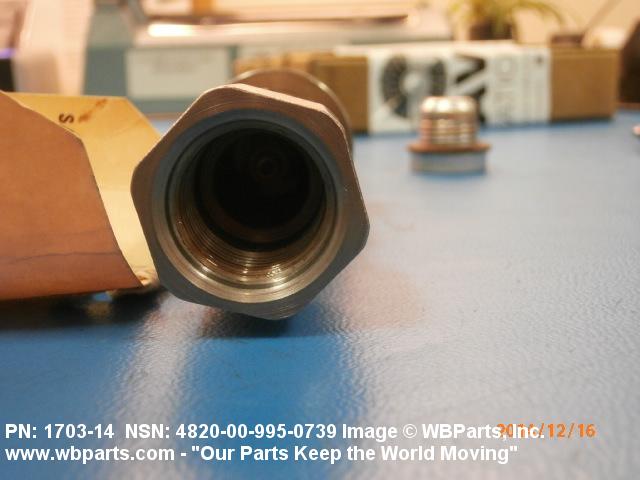

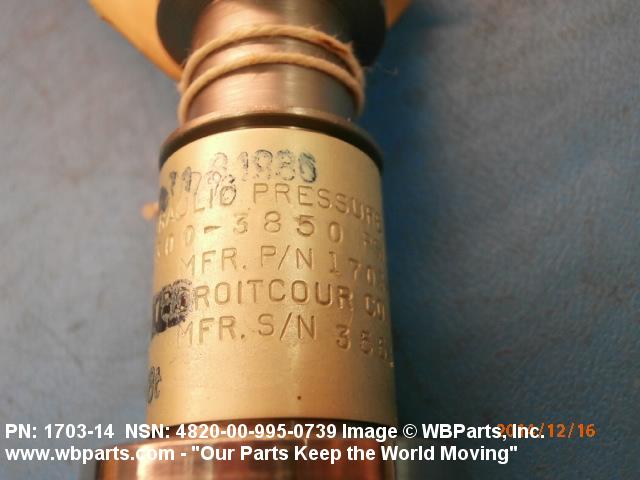

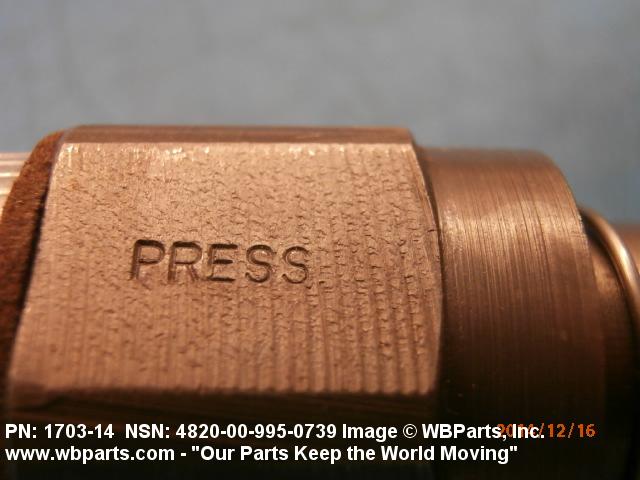

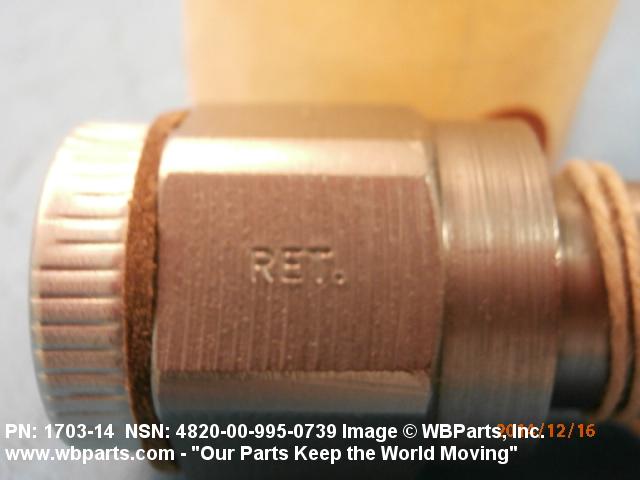

Drawings & Photos | NSN 4820-00-995-0739
Demand History | NSN 4820-00-995-0739
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-995-0739 | 2024-07-184 | 3 | DIBBS |
| 4820-00-995-0739 | 2024-03-77 | 14 | DIBBS |
| 4820-00-995-0739 | 2022-12-341 | 2 | United States |
| 4820-00-995-0739 | 2021-12-355 | 2 | US |
| 4820-00-995-0739 | 2021-12-336 | 5 | United States |
| MS28893D8 | 2021-09-264 | 11 | US |
| 4820-00-995-0739 | 2021-09-249 | 11 | DIBBS |
| 4820-00-995-0739 | 2020-12-345 | 11 | DIBBS |
| 4820-00-995-0739 | 2020-10-296 | 2 | DIBBS |
| 4820-00-995-0739 | 2018-10-302 | 5 | DIBBS |
| 4820-00-995-0739 | 2017-05-124 | 10 | DIBBS |
| 170314 | 2017-03-82 | 1 | UK |
| 4820-00-995-0739 | 2016-02-35 | 3 | DIBBS |
| 4820-00-995-0739 | 2015-10-287 | 5 | DIBBS |
| 4820-00-995-0739 | 2015-04-98 | 11 | DIBBS |
| 4820-00-995-0739 | 2015-01-26 | 6 | DIBBS |
| MS28893D8 | 2015-01-07 | 2 | us |
| 4820-00-995-0739 | 2014-12-337 | 6 | Pakistan |
| MS28893D8 | 2014-11-311 | 6 | US |
| MS28893D8 | 2014-10-282 | 1 | United States |
| 4820-00-995-0739 | 2014-04-111 | 11 | DIBBS |
| 4820-00-995-0739 | 2013-10-290 | 5 | DIBBS |
| 4820-00-995-0739 | 2013-04-101 | 21 | DIBBS |
| 4820-00-995-0739 | 2012-02-40 | 10 | DIBBS |
| 4820-00-995-0739 | 2012-02-40 | 11 | DIBBS |
| 4820009950739 | 2011-12-343 | 1 | US |
| 4820-00-995-0739 | 2011-10-285 | 6 | DIBBS |
| 4820-00-995-0739 | 2010-10-294 | 3 | DIBBS |
| 4820-00-995-0739 | 2009-04-106 | 8 | DIBBS |
| 4820-00-995-0739 | 2009-02-50 | 8 | DIBBS |
| 4820-00-995-0739 | 2008-12-344 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-995-0739
Related Products | NSN 4820-00-995-0739
Technical Data | NSN 4820-00-995-0739
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE STEEL CORROSION RESISTING SEAT |
| STYLE DESIGNATOR | C8 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| VALVE DISCHARGE FLOW RATE | 12.0 GALLONS PER MINUTE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED INTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | G4 GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| THREAD CLASS | 3B ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| DISK LOADING METHOD | SPRING |
| OPENING PRESSURE SETTING | 2850.0 POUNDS PER SQUARE INCH |
| ADJUSTABLE PRESSURE RANGE | 2300.0 TO 3850.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | PRESSURE TIGHT OUTLET SIDE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-V-8813 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28893D8 |
Restrictions/Controls & Freight Information | NSN 4820-00-995-0739
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-995-0739
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
