NSN 4820-00-991-8621 DP84411, DP8441-1, 259980
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-991-8621 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: DP84411, DP8441-1, 259980, 25-9980, 4820-00-991-8621, 00-991-8621, 4820009918621, 009918621
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-991-8621 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-00-991-8621
Demand History | NSN 4820-00-991-8621
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-991-8621 | 2021-03-63 | 1 | TR |
| 4820-00-991-8621 | 2017-06-170 | 1 | US |
| 4820-00-991-8621 | 2010-07-197 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-991-8621
Technical Data | NSN 4820-00-991-8621
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| STEM MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| FLOW CONTROL DEVICE MATERIAL | STEEL |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |

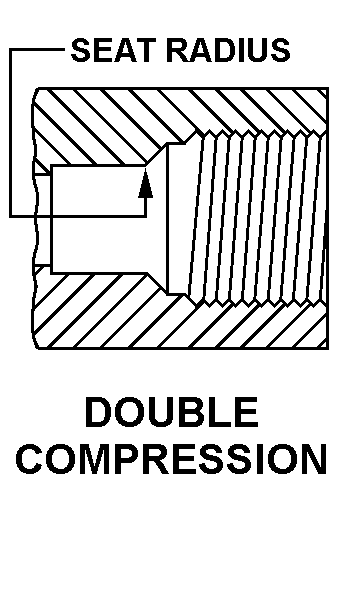

| FIRST END STYLE DESIGNATOR | B15 DOUBLE COMPRESSION |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/8-27 NPTF |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| MAXIMUM INLET PRESSURE RATING | NOT RATED |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4820-00-991-8621
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-991-8621
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
